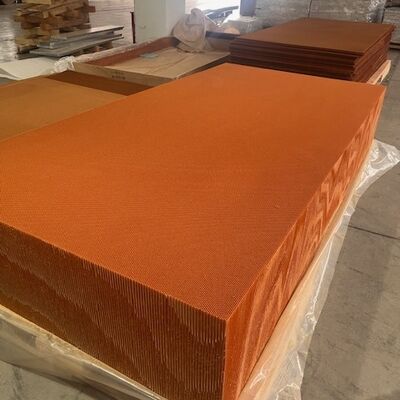

Customizable Aramid Honeycomb Core Blocks
High-performance aramid honeycomb core blocks available in customizable sizes with excellent environmental resistance properties.
Manufacturing Process
Our advanced manufacturing technology ensures superior quality aramid honeycomb cores through a precise multi-step process:
- Paper Stacking: Each layer of aramid paper is folded with equal spacing between adjacent folds
- Gluing Process: Adhesive strips are applied at intervals according to creases, with strip width equal to half the spacing distance
- Layer Stacking: Multi-layer aramid paper with adhesive strips is stacked in staggered layers with complete overlap
- Hot Pressing: Glued multi-layer paper undergoes hot pressing to create honeycomb laminate
- Stretching & Shaping: Honeycomb laminate is stretched after water soaking and oven-shaped to required cell size
Technical Specifications
Commercial Grade Aramid Honeycomb Core
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| BHC1313-3.2-48 | 3.2 (1/8) | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 (3/16) | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 (1/4) | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 (3/8) | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
Aerospace Grade Aramid Honeycomb Core
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| BHC1313A-3.2-48 | 3.2 (1/8) | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 (3/16) | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 (1/4) | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 (3/8) | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super light weight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environment adaptability and electrical insulation
- Good dielectric properties and high stability
Applications
Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more
Quality Control
Our technical engineering team, led by a general manager with Netherlands experience, implements core technologies introduced from the Netherlands. All team members have over 5 years of practical experience.
Strict quality control team: 8 professionals responsible for quality control of aramid honeycomb core parts, processing, testing, and packaging.
Product Gallery
Company Profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since its establishment, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to finished products using honeycomb panel solutions such as truck bodies, laser TV/projection screens etc.
Factory Showcase
Frequently Asked Questions
What is aramid honeycomb core used for?
Aramid honeycomb core is one of the best EMI materials, available for both industrial and aviation applications. It has been widely used in Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more.
What are the advantages of aramid honeycomb core?
Aramid honeycomb core offers super light weight with high strength anti-fatigue properties, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electrical insulation, along with good dielectric properties and high stability.
What is the packaging method of aramid honeycomb core?
Small samples are packed in cardboard, while bulk orders are packed in plywood cases for secure transportation.
