Product Details:
|
Product Name: | OX Aramid Honeycomb Core | Size: | 900*2400mm Or Customized |
---|---|---|---|
Density: | 40, 48kg/m3 | Thickness: | 5mm Or Costomizable |
Cell Size: | 4.8, 3.2mm Or Costomizable | Advantages: | Anti-fatigue |
Materials: | Aramid Fiber Paper | Color: | Brown |
Package: | Plywood Case | Applications: | Rail Transit, Sport Products Or Other |
Highlight: | OX Aramid Honeycomb Core,Aramid Honeycomb Core 900x2400mm,nomex paper honeycomb core |

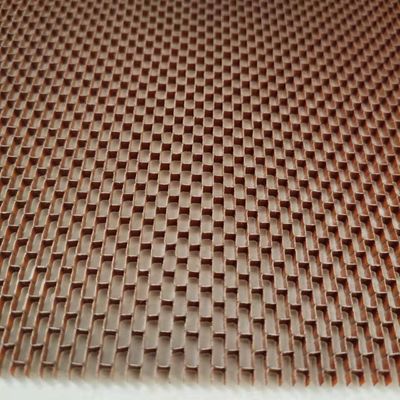

OX Over Stretched Aramid Honeycomb Core With High Corrosion Resistance
1. Descriptions:
Compared with ordinary aramid honeycomb core, the cell of over stretched(OX) aramid honeycomb core is not hexagonal,
With the advantages of light weight, high strength, thermal insulation, non toxicity, metal fatigue resistance and flame retardant, it has provided a good solution for energy conservation and weight reduction in many industries. At present, it is also widely used in the fields of high-speed railway, aerospace, radar, boat, high-end car, racing car and so on.
2. Specifications:
Specifications |
Cell size (mm/inch) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
|
Commercial Grade Aramid Honeycomb Core | ||||||
BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 | |
BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 | |
BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 | |
BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 | |
BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 | |
BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 | |
BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 | |
BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 | |
BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 | |
BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 | |
BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 | |
BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 | |
Aerospace Grade Aramid Honeycomb Core | ||||||
BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 | |
BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 | |
BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 | |
BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 | |
BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 | |
BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 | |
BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for OX Aramid honeycomb core of quality control of parts, processing, testing, packaging, etc.
6. OX Aramid honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
