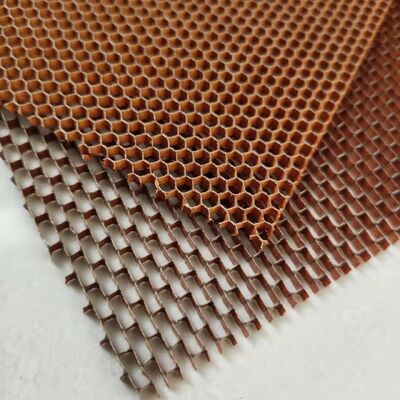

OX Over Stretched Aramid Nomex Honeycomb Core
High-performance aramid honeycomb core featuring exceptional corrosion resistance and unique over-stretched cell structure for superior mechanical properties.
Product Overview
Unlike conventional hexagonal cell aramid honeycomb cores, our OX (Over Stretched) aramid honeycomb core features an advanced cell structure that delivers superior performance characteristics including light weight, high strength, thermal insulation, non-toxicity, metal fatigue resistance, and flame retardancy. This innovative solution enables significant energy conservation and weight reduction across multiple industries.
Technical Specifications
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 | 3.2 (1/8) | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 (3/16) | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 (1/4) | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 (3/8) | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 | 3.2 (1/8) | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 (3/16) | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 (1/4) | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 (3/8) | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super light weight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environmental adaptability and electrical insulation
- Superior dielectric properties and high dimensional stability
Applications
Rail transit, aerospace, radomes, yachts, sports products, automotive, and various industrial applications requiring lightweight, high-strength composite solutions.
Quality Control
Our technical engineering team is led by a general manager with extensive experience from the Netherlands, where our core technologies originated. Our young, dynamic team members each possess over 5 years of practical experience. A dedicated quality control team of 8 specialists oversees every stage of production - from raw materials and processing to testing and packaging - ensuring consistent excellence in our OX aramid honeycomb core products.
Product Gallery
Company Profile
Suzhou Beecore Honeycomb Materials Co., Ltd. originates from Besin (Dutch) International Group, founded in 1957. As a world-leading professional manufacturer of honeycomb materials, we have dedicated decades to advancing honeycomb technology research and development. Our expertise spans from slant-porous aluminum honeycomb core and standard honeycomb core to complete honeycomb panel solutions for applications including truck bodies, laser TV/projection screens, and numerous industrial applications.
Manufacturing Facility
Frequently Asked Questions
What is aramid honeycomb core used for?
Aramid honeycomb core serves as an excellent EMI (Electromagnetic Interference) material available in both industrial and aviation grades. It is widely utilized in rail transit, aerospace, radomes, yachts, sports products, automotive applications, and various other industries requiring lightweight, high-strength composite solutions.
What are the advantages of aramid honeycomb core?
Aramid honeycomb core offers superior lightweight properties with high strength and anti-fatigue characteristics, outstanding corrosion and flame resistance, excellent environmental adaptability and electrical insulation, along with superior dielectric properties and high dimensional stability.
What is the packaging method for aramid honeycomb core?
Small samples of aramid honeycomb core are securely packaged in cardboard, while bulk orders are carefully packed in durable plywood cases to ensure product integrity during transportation and storage.
