Anti Glare Black Aluminum Honeycomb Core Aluminum Honeycomb Louver
1. Descriptions:
Aluminum honeycomb grid has the advantages of regular hexagon, good mechanical properties, and smooth surface. It is mainly used for various intelligent traffic lights, LED fill lights, film and television lights, and photography accessories, which are beneficial for anti glare and soft lighting, making the beam more uniform.
The aluminum honeycomb grid is made of microporous aluminum honeycomb cores, with a side length of less than 3mm. The microporous aluminum honeycomb cores are made of multiple layers of aluminum foil through bonding, hot pressing, sawing, and stretching. The aluminum honeycomb grid adopts microporous aluminum honeycomb core, sprayed black. Various frameworks can be added according to customer requirements.
2. Specifications:
| Aluminum honeycomb grid (lovuer) |
| Specifications |
Side length (mm) |
Foil Thickness (mm) |
Density (kg/m³) |
| BHC3003-0.4-0.015L |
0.4 |
0.015 |
137 |
| BHC3003-0.5-0.015L |
0.5 |
0.015 |
137 |
| BHC3003-0.5-0.021L |
0.021 |
190 |
| BHC3003-0.6-0.015L |
0.6 |
0.015 |
151 |
| BHC3003-0.6-0.021L |
0.021 |
158 |
| BHC3003-0.8-0.021L |
0.8 |
0.021 |
118 |
| BHC3003-0.8-0.025L |
0.025 |
144 |
| BHC3003-0.8-0.03L |
0.03 |
169 |
| BHC3003-1-0.025L |
1 |
0.025 |
115 |
| BHC3003-1-0.03L |
0.03 |
137 |
| BHC3003-1-0.04L |
0.04 |
183 |
| BHC3003-1.5-0.03L |
1.5 |
0.03 |
90 |
| BHC3003-1.5-0.04L |
0.04 |
122 |
| BHC3003-1.5-0.05L |
0.05 |
152 |
| BHC3003-1.83-0.04L |
1.83 |
0.04 |
99 |
| BHC3003-1.83-0.05L |
0.05 |
123 |
| BHC3003-1.83-0.06L |
0.06 |
148 |
| BHC3003-2-0.04L |
2 |
0.04 |
90 |
| BHC3003-2-0.05L |
0.05 |
113 |
| BHC3003-2-0.06L |
0.06 |
135 |
| BHC3003-2.5-0.04L |
2.5 |
0.04 |
74 |
| BHC3003-2.5-0.05L |
0.05 |
92 |
| BHC3003-2.5-0.06L |
0.06 |
110 |
| BHC3003-3-0.04L |
3 |
0.04 |
61 |
| BHC3003-3-0.05L |
0.05 |
76 |
| BHC3003-3-0.06L |
0.06 |
91 |
| BHC3003-3-0.08L |
0.08 |
122 |
| BHC3003-3.5-0.04L |
3.5 |
0.04 |
55 |
| BHC3003-3.5-0.05L |
0.05 |
68 |
| BHC3003-3.5-0.06L |
0.06 |
82 |
| BHC3003-3.5-0.08L |
0.08 |
110 |
| BHC3003-4-0.04L |
4 |
0.04 |
46 |
| BHC3003-4-0.05L |
0.05 |
57 |
| BHC3003-4-0.06L |
0.06 |
68 |
| BHC3003-4-0.08L |
0.08 |
92 |
| BHC3003-5-0.05L |
5 |
0.05 |
46 |
| BHC3003-5-0.06L |
0.06 |
54 |
| BHC3003-5-0.08L |
0.08 |
72 |
| BHC3003-5-0.1L |
0.1 |
91 |
| Shape |
Round, square |
| Clour |
Black |
| Alloy |
Al3003 and Al5052 |
| Supply form |
Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
3. Aluminum honeycomb grid (louver) has several advantages:
• Anti glare
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
4. Applications:
• Pxygen generator equipments, Lighting industry, Film shooting, Traffic lights, Industry, Printing machine platform and so on.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb grid (louver) of quality control of parts, processing, testing, packaging, etc.

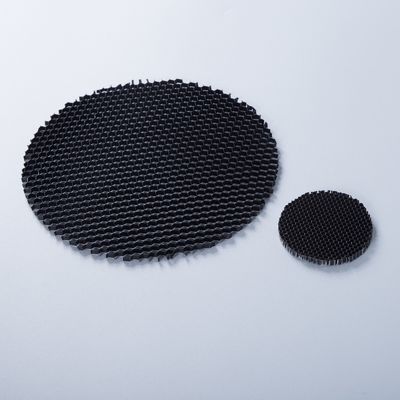

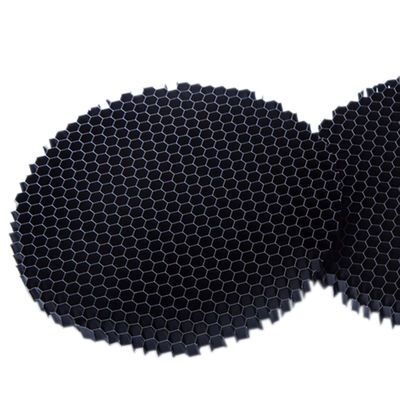

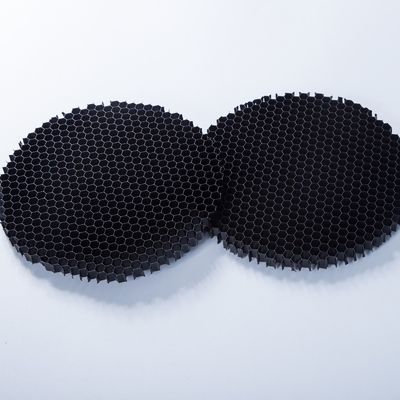

6. Aluminum honeycomb grid (louver) of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb grid usd for?
A: Aluminum honeycomb grid which has excellent rigidity and is one of the best lighting materials. It has been widely used in the decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb grid?
A: Aluminum honeycomb grid has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution. When used in lamps, it is conducive to anti glare and make the light more uniform and soft.
Q3. What is the packaging method of aluminum honeycomb grid?
A: Aluminum honeycomb grid of samples are packed in cardboard and bulk orders are packed in plywood cases.
