|Product Name:||Aluminum Honeycomb Louver||Color:||Black Or Aluminum Natural Color|
|Side Length:||1.83, 2, 2.5mm Or Customizable||Size:||φ50, φ120 Or Customizable|
|Cell Size:||3.2mm Or Customizable||Materials:||3003 And 5052|
|Thickness:||1.5, 2, 3mm Or Customizable||Foil Thickness:||0.04, 0.05mm|
|Advantage:||Light Weight||Applications:||Lighting Industry Or Other|
3003 Aluminum Honeycomb Louvers,
5052 Aluminum Honeycomb Louvers,
Black honeycomb glare louvre

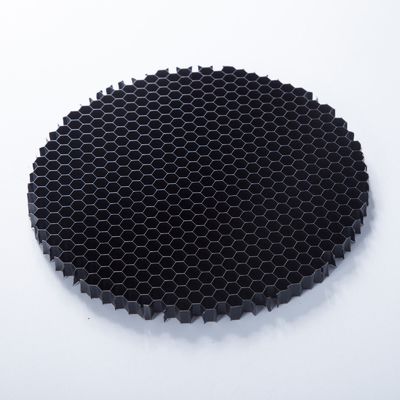

Black Aluminum Honeycomb Louvers Lamps Used In Traffic Lights
Aluminum honeycomb louver is made of microporous aluminum honeycomb core with side length of honeycomb core less than 3mm. Microporous aluminum honeycomb core is made of multilayer aluminum foil by gluing, hot pressing, sawing and stretching. It adopts microporous aluminum honeycomb core and is sprayed with black. Various frames can be added according to customer requirements.
Aluminum honeycomb louver has the advantages of regular hexagon, good mechanical performance and flat surface. It is mainly used in lighting industry, which is conducive to anti glare and soft lighting and it is suitable for high-quality filters, machinery industry, electrical appliances and other fields.
|Aluminum honeycomb lovuer|
|Specifications||Side length (mm)||Foil Thickness (mm)||Density (kg/m³)|
|Alloy||Al3003 and Al5052|
|Supply form||Unexpanded (block, strip) or expanded(slice)|
3. Aluminum honeycomb louver has several advantages:
• Anti glare
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Lighting industry, Film shooting, Traffic lights, Industry, Printing machine platform and so on.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb louver of quality control of parts, processing, testing, packaging, etc.
6. Aluminum honeycomb louver of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
Q1. What is aluminum honeycomb louver usd for?
A: Aluminum honeycomb louver which has excellent rigidity and is one of the best lighting materials. It has been widely used in the decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb louver?
A: Aluminum honeycomb louver has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution. When used in lamps, it is conducive to anti glare and make the light more uniform and soft.
Q3. What is the packaging method of aluminum honeycomb louver?
A: Aluminum honeycomb louver of samples are packed in cardboard and bulk orders are packed in plywood cases.
