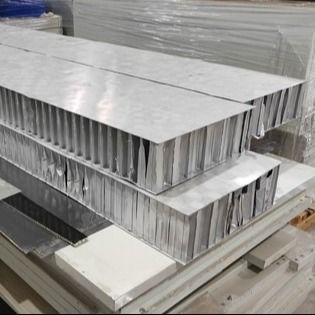

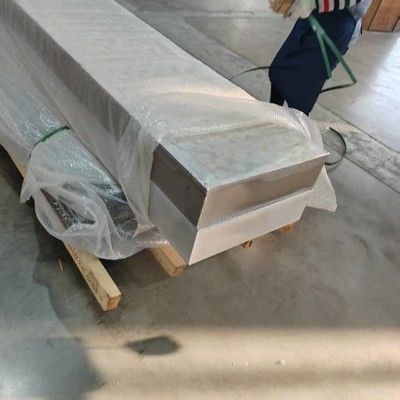

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc
75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc
75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc

Large Image :  75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc

Product Details:
Place of Origin: China
Brand Name: Beecore
Certification: Can be provided
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Packaging Details: plywood case
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 300 SM per month
Contact Now

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc

Description
Material: Aluminium/Stainless Steel Dimension: 1500*2440mm Or Can Be Customized
Side Length: 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20 Thickness: 5mm,8mm,1mm,10mm,20mm,40mm Or Can Be Customized
Wall Thickness: 0.1、0.13、0.15、0.2 Etc. Thermostability: 600℃
Density: Less Than 0.7g/cm3 Sound Reduction Index, DB: 26
Fire Rating: A1 Service Life: Over 20 Years
Structure: Edge-sealed/unedge-sealed
Highlight:

75mm Aluminum Honeycomb Panel

,

Brazed Aluminum Honeycomb Panel

,

Oil Floating Disc Aluminum Honeycomb Panel

Description: 75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc



Brazed aluminum honeycomb panel is a metal structural material that uses aluminum honeycomb as the core material, with aluminum or stainless steel panels on both sides, and then combines them together for one-time brazing. The main materials used are solder, tin, and stainless steel.

  • Be re-welded and processed
  • Light weight but high-strength
  • Rigid & Stable
  • Heat-insulating
  • Sound-insulating
  • Pollution-free

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 0



It overcomes the drawback that the honeycomb core of the existing adhesive honeycomb panels is greatly affected by the performance of the adhesive. Its mechanical properties are much higher than those of the adhesive materials, and all properties have been significantly improved, making it suitable for industrial production.







Mechanical performance


Mechanic performance WAHS has strong ability ti keep its structure due to strong strength on connection points,and will keep certain bearing capacity,and not collapse even if it's over loaded.

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 1
Shearing

 75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 2
Lateral compression

High peel strength can meanwhile improve the general stablity of honeycomb structure"s lateral stress and shear stress.







Temperature resistance




It can meet requirement of fire resistance test according to EN1363-1:2012.

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 3

Good impact resistance




WAHS can absorb impact energy quickly after being impacted due to its good connection strength,therefore its impact resistance is much better than its likewise products

Below is vertical impact test with 500g cement balls at a speed of 380km/h.

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 4
The front of plate after test

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 5
The back of plate after test


Applications

Petrochemical Industry

Welded honeycomb composite plate, with the characteristics of "light weight" , "high strength" and "lightning protection" , has become an ideal material for floating roof and outer shell of oil tank. It effectively solves the problems of floating plate settling, structure collapse, oil and gas volatilization and so on.

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 6

75mm Thickness Brazed Aluminum Honeycomb Panel For Oil Floating Disc 7
