Product Details:
|
| Product Name: | Stone Aluminum Honeycomb Panel | Size: | 1300*1200mm Or Customizable |
|---|---|---|---|
| Side Length: | 5, 7, 8mm Or Customizable | Aluminum Panel Thick: | 0.7, 1.0mm Or Customizable |
| Top And Bottom Panel: | Stone | Stone Thickness: | 3, 5mm |
| Core Material: | Aluminum Honeycomb Core | Foil Thickness: | 0.05, 0.06mm |
| Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 3mm Or Customizable | Advantage: | Environmental Protection |
| High Light: | stone aluminum honeycomb panel 3mm,ISO9001 stone aluminum honeycomb panel,thin stone honeycomb panels 3mm |
||

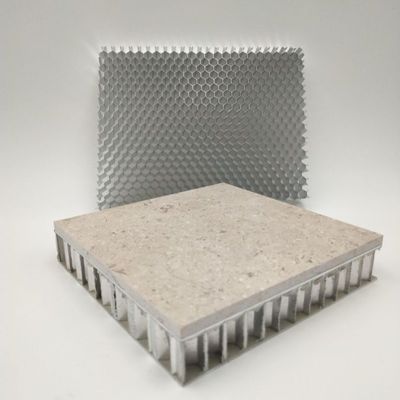

Ultra Thin 3mm thickness Stone Aluminum Honeycomb Panel For Furniture
1. Descriptions:
Ultra thin stone honeycomb plate is a high-tech product produced by the Italian cutting equipment and technology introduced by the company, which cuts natural granite and marble into 3-5mm thin slices, and then combines it with aluminum honeycomb by using Air France composite technology. Ultra thin stone honeycomb board maintains the beauty of natural stone and overcomes the shortcomings of natural stone, such as brittleness and fragility, large weight and so on.
2. Specifications:
| Stone aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Stone type | Granite, marble |
| Aluminum panel thcikness | 0.8, 1.0, 1.5mm |
| Stone thickness | 3-5mm |
| Color |
Customized |
| Applications | Building curtain wall system, building interior decoration, elevator car body, furniture supporting, bathroom integrated installation system |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Stone aluminum honeycomb panel has several advantages:
• Light weight and improved strength
• Improvement of anti pollution ability
• Easier to control color difference
• Easy installation
• Sound insulation, moisture-proof and cost reduction.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
• Pailway, ship flooring panel
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for stone aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. Stone aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is stone aluminum honeycomb panel usd for?
A: Stone aluminum honeycomb panel has been widely used in the Building curtain wall system, building interior decoration, elevator car body, furniture supporting, bathroom integrated installation system
Q2. What are the advantages of stone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of atone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
