Product Details:
|
| Product Name: | Aramid Honeycomb Core | Size: | 400*400mm, 1000*800mm |
|---|---|---|---|
| Density: | 32, 128kg/m3 | Thickness: | 5, 6, 7, 8, Mm Or Costomizable |
| Cell Size: | 6.4, 4.8mm Or Costomizable | Advantages: | Anti-fatigue |
| Materials: | Aramid Fiber Paper | Color: | Brown |
| Package: | Plywood Case | Applications: | Rail Transit, Sport Products Or Other |
| Highlight: | Sound Insulation Aramid Honeycomb Core,1200x1200mm Aramid Honeycomb Core,Railway Transporation Aramid Honeycomb Core |
||

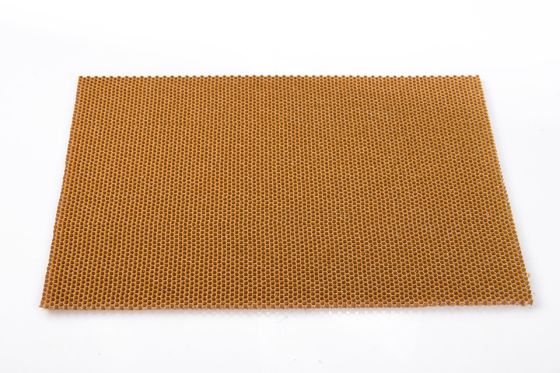

Sound Insulation Aramid Honeycomb Core 1200x1200mm For Railway Transporation
1. Descriptions:
Aramid honeycomb core provides better heat-insulation and sound-proofing compared to other metals and fiberglass, which saves the fuel-consumption and offers comfortable traveling for passenger. In addition to satisfying the strength and rigidity of the interior design, it can also decrease the weight and energy consumption.
By far, aramid honeycomb core has been utilized in the high-speed train, double-deck train, subway, and other ground trasportation.
2. Specifications:
| Specifications |
Cell size (mm/inch) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
|
| Commercial Grade Aramid Honeycomb Core | ||||||
| BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 | |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 | |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 | |
| BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 | |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 | |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 | |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 | |
| BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 | |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 | |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 | |
| BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 | |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 | |
| Aerospace Grade Aramid Honeycomb Core | ||||||
| BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 | |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 | |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 | |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 | |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 | |
| BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 | |
| BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for Aramid honeycomb core of quality control of parts, processing, testing, packaging, etc.

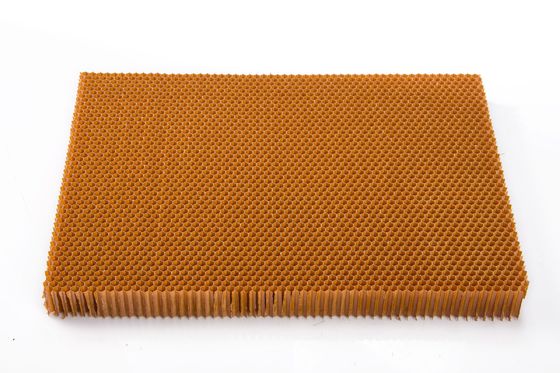

6. Para Aramid honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
