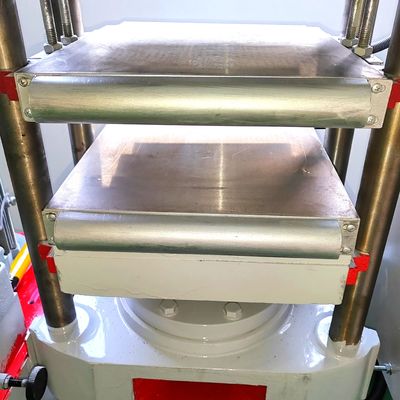

Product Details:
|
| Power: | 7.2KW | Voltage: | 380V |
|---|---|---|---|
| Weight (kg): | 1000 | Hydraulic System Pressure: | 14.5MPa |
| Plunger Stroke: | 250mm | Plunger Rising Speed: | 16.5 Mm/s |
| Hot Plate Size: | 350*350mm | Number Of Hot Platens: | 3 (can Be Increased Upon Request) |
| Distance Between Hot Plates: | 75mm (can Be Enlarged Upon Request) | Total Power Of Electric Heating: | 7.2Kw |
| Hot Plate Temperature: | 0-200℃ (temperature Can Be Increased) | Heating Steam Pressure: | Steam Or Electric Heating |
| Highlight: | 25T Plate vulcanizing press |
||
MAIN FEATURE
1.Electric heating uses TED-2301 temperature indicator to control and display the temperature of the hot plate, which has the characteristics of high control accuracy, intuitive temperature display and convenient adjustment.
2. Steam heating uses metal hoses, which have good sealing, long life and good reliability.
3. The parallel oil supply method of low-pressure and high-flow gear pumps and high-pressure and low-flow gear pumps is adopted to ensure the rapid heating of the hot plate and save electricity.
4. The automatic pressure replenishment device is adopted to ensure the quality stability of the product.
TECHNICAL SPECIFICATIONS
| Maximum clamping pressure | 0.25MN (25T) |
| Hydraulic system pressure | 14.5MPa |
| Plunger stroke | 250mm |
| Plunger rising speed | 16.5 mm/s |
| Hot plate size | 350×350mm |
| Number of hot platens | 3 (can be increased upon request) |
| Distance between hot plates | 75mm (can be enlarged upon request) |
| Total power of electric heating | 7.2Kw |
| Heating steam pressure | Steam or electric heating |
| Hot plate temperature | 0-200℃ (temperature can be increased) |
| Net weight | About 1000Kg |
| Motor power | 1.5Kw, 1440r/min |
| Standard test piece size | 75×150mm 48pcs |
| Overall dimensions (length×width×height) | 1250×550×1420mm |
