Product Details:
|
| Product Name: | Hot Pressing Panel Machine | Maximum Pressure: | 100T |
|---|---|---|---|
| Number Of Work Layer: | 4-8 Layer | Panel Size: | 1220*2440mm |
| Hot Plate Spacing: | 150mm | Hot Plate Size: | 2600*1300*40mm |
| Diameter Of Oil-cylinder*qty: | Φ100*8mm | Dimensions: | 3000*1400*2400mm |
| Voltage: | 380/50HZ | Weight: | 10000kg |
| High Light: | 100T honeycomb panel machine,aluminum honeycomb panel machine,Compound hot pressing machine 100T |
||

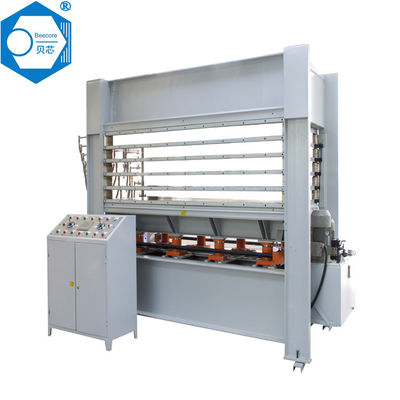

Compound Hot Pressing Machine For Making Aluminum Honeycomb Panel Honeycomb Equopment
1. Descriptions:
• Mainly used for hot press forming of aluminum honeycomb panels.
• Mainly composed of fuselage, pressure plate, hydraulic system, heating system and electrical parts.
• The fuselage: welded by profiles and steel plates to ensure that the fuselage has sufficient strength.
• Pressure plate: the pressure plate is solid plate, the oil path in the plate is processed by deep hole drilling, with good leakproof and pressure resistance performance.
• Hydraulic system: the hydraulic system consists of a fuel tank, an oil pump, a plurality of hydraulic valves and a cylinder.
• Heating system: the heating system consists of a heat transfer oil tank, an electric heating tube, a hot oil pump and a fuel pipe.
• Electrical part consists of main circuit and control circuit.
2. Specifications:
| Compound hot pressing panel machine | ||
| Description | Unit | BHM-CH-A100T |
| Maximum pressure | T | 100 |
| Number of work layer | layer | 4-8 |
| Hot plate spacing | mm | 150 |
| Panel size | mm | 2440*1220 |
| Hot plate size | mm | 2600*1300*40 |
| Power requirements | V/Hz | 380/50 |
| Diameter of Oil-cylinder*qty | mm | Φ100*8 |
| The oil-cylinder stroke | mm | 600 |
| Range of working temperature | ℃ | Room tem-200 |
| Installed power | kW | 96 |
| Heating method | Heat-transfer oil | |
| Dimensions | mm | 3000*1400*2400 |
| Weight | kg | 10000 |
| Voltage | V/Hz | 380/50 |
3. Honeycomb panel equipment has several advantages:
• High bonding efficiency
• Low running resistance
• No deformation
• Uniform temperature
4. Applications:
• Making aluminum honeycomb panel
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Honeycomb panel equipment hot press machine of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Production picture
10. FAQ
Q1. What is hot press machine honeycomb panel equipment usd for?
A: The hot press machine honeycomb panel equipment has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of honeycomb panel equipment?
A:The hot press machine honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of honeycomb panel equipment?
A: Packed in plywood cases with wrapping film.
