3200*1350 Nomex Slicing Machine With Vacuum System For Cutting

Large Image : 3200*1350 Nomex Slicing Machine With Vacuum System For Cutting

Product Details:

Place of Origin:	China
Brand Name:	Beecore
Certification:	Can be provided
Model Number:	BHM-SM-AM3000
Document:	nomex Slicing Machine(1).pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$38000-40000/set

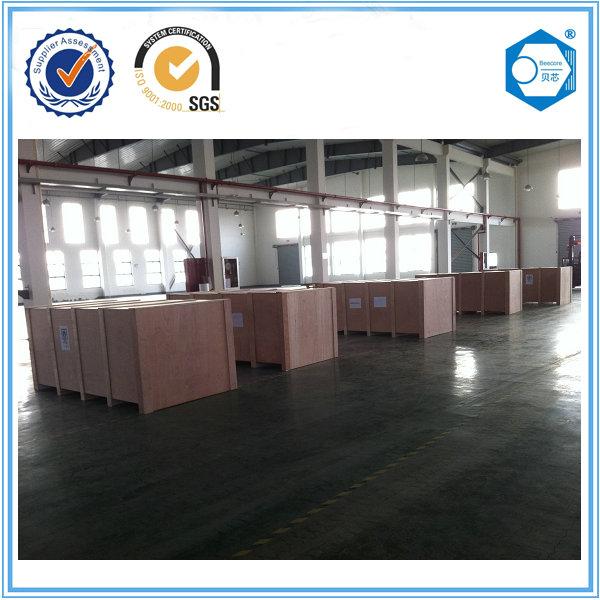

Packaging Details:	plywood case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per year

Contact Now

3200*1350 Nomex Slicing Machine With Vacuum System For Cutting

Description

Weight (kg):	7000	Machine Body:	6000mm 3200mm2900mm
Max Honeycomb Core Cuttable Dimension:	3000mm 1350mm950mm	Honeycore Density:	35-350kg/m3
Working Platform:	3400mm*1700mm	Slide Platform System:	Max Speed 20m/min
Platform Motor:	1.3KW	Speed:	0-1000mm/min
Flatness:	> 0.5mm	Cutting Tolerance:	±0.1mm
Highlight:	Nomex Slicing Machine , Vacuum System Slicing Machine , 3200*1350 Slicing Machine

PRODUCTION ADVANTAGE

1.Dual spindle, dual main motor, using German technology;

2. High slicing accuracy, with a thickness error within ± 0.1mm;

3. Stable rack;

4. Two servo motors are used to control the forward and backward speed as well

as the vertical distance:

5. Not able to run a saw;

6. The saw wheel is made of steel material with high precision, and the external

jump of the saw wheel is below 0.05mm

7. It is suitable for honeycomb paper, hard foam and light wood cutting with a

density of 35~350kg/m '.

A.WORKBENCH COMPONENTS

Workbench: width 1350mm, length 3200mm,
Vacuum system: equipped with one high-pressure fan; 7.5KW suction type x1unit
Control system: The PLC system is produced by Huichuan, and the human-machine interface PLC serves the same motor starter with three linkage programs; Adjustable board surface dust suction device;
Safety performance: knife breakage safety device, emergency stop, protectivecover, safety net, lifting protective cover.

B.OVERALL INFORMATION OF THE MACHINE TOOL

The overall dimensions of the machine tool after installation: 8500mm in length, 3700mm in width, 3200mm in height;
Gross weight: 7000kg;
Gas source requirement: 6kg/cm2;
Total power: 40.1KW

Company Profile

SUZHOU BEECORE HONEYCOMB MATERIALS CO., LTD

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1998 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017-So far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

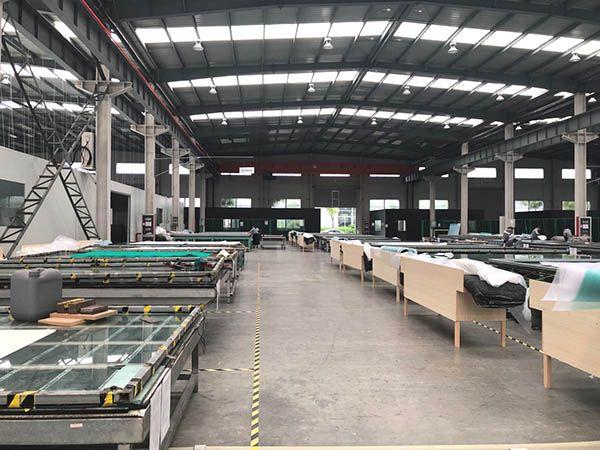

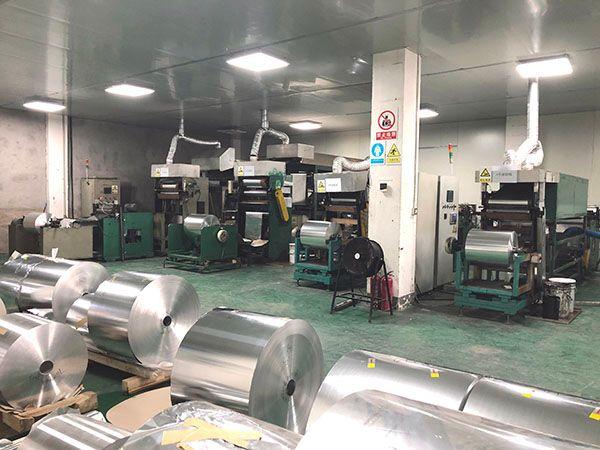

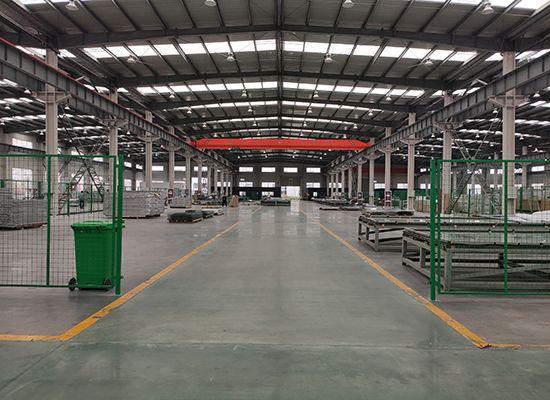

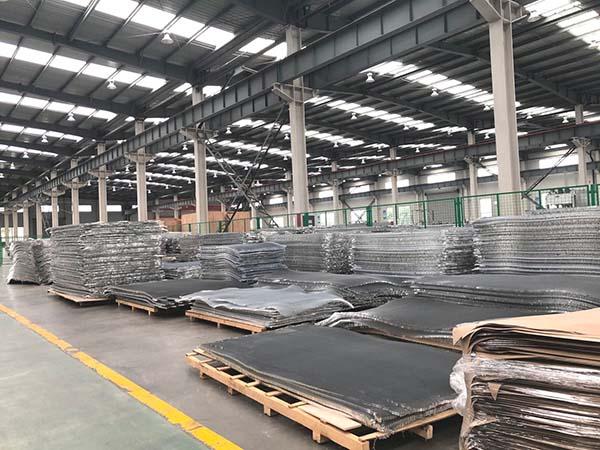

FACTORY SHOW

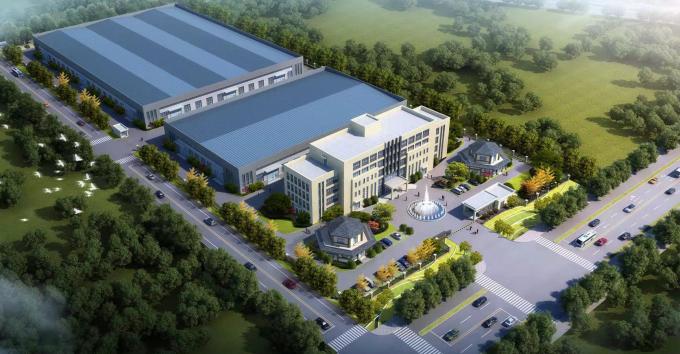

Suzhou Beecore has two factories---------Suzhou factory & Taizhou factory
