Product Details:
|
| Product Name: | Hot Press Machine | Maximum Pressure: | 100T |
|---|---|---|---|
| Number Of Work Layer: | 1 Layer | Panel Size: | 1220*2440mm |
| Hot Plate Spacing: | 150mm | Hot Plate Size: | 2600*1300*40mm |
| Diameter Of Oil-cylinder*qty: | Φ100*8mm | Dimensions: | 3000*1400*2400mm |
| Voltage: | 380/50HZ | Weight: | 10000kg |
| Highlight: | Aluminum Honeycomb Panel Hot Press Machine,200 Honeycomb Panel Hot Press Machine,honeycomb aluminium sheet hot press machine |
||

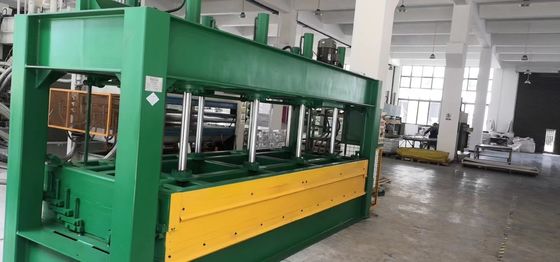

High Quality Aluminum Honeycomb Panel Hot Press Machine With Oil Temperature Of 200
1. Descriptions:
Beecore is committed to researching and promoting the production process and equipment of honeycomb composite panels, utilizing high-temperature composite and panel hot pressing technology to ensure the integrity, strength, and flatness of aluminum honeycomb panels.
• Mainly used for hot press forming of aluminum honeycomb panels.
• Mainly composed of fuselage, pressure plate, hydraulic system, heating system and electrical parts.
• The fuselage: welded by profiles and steel plates to ensure that the fuselage has sufficient strength.
• Pressure plate: the pressure plate is solid plate, the oil path in the plate is processed by deep hole drilling, with good leakproof and pressure resistance performance.
• Hydraulic system: the hydraulic system consists of a fuel tank, an oil pump, a plurality of hydraulic valves and a cylinder.
• Heating system: the heating system consists of a heat transfer oil tank, an electric heating tube, a hot oil pump and a fuel pipe.
• Electrical part consists of main circuit and control circuit.
2. Specifications of aluminum honeycomb panel hot press machine:
aluminum honeycomb panel hot press machine
| Description | Unit | BHM-CH-A100T |
| Maximum pressure | T | Customized |
| Number of work layer | layer | 1 |
| Hot plate spacing | mm | 150 |
| Panel size | mm | 2440*1220 |
| Hot plate size | mm | 2600*1300*40 |
| Power requirements | V/Hz | 380/50 |
| Diameter of Oil-cylinder*qty | mm | Φ100*8 |
| The oil-cylinder stroke | mm | 600 |
| Range of working temperature | ℃ | Room tem-200 |
| Installed power | kW | 96 |
| Heating method | Heat-transfer oil | |
| Dimensions | mm | 3000*1400*2400 |
| Weight | kg | 10000 |
| Voltage | V/Hz | 380/50 |
3. Aluminum honeycomb panel hot press machine has several advantages:
• High bonding efficiency
• Low running resistance
• No deformation
• Uniform temperature
4. Applications of Aluminum honeycomb panel hot press machine:
• Making aluminum honeycomb panel
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Aluminum honeycomb panel hot press machine of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Production picture
9. FAQ
Q1. What is aluminum honeycomb panel hot press machine usd for?
A: The hot press machine honeycomb panel equipment has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel hot press machine?
A:The hot press machine honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel hot press machine?
A: Packed in plywood cases with wrapping film.
