Product Details:
|
| Product Name: | Continuous Production Line | Panel Size: | 1220*2440mm |
|---|---|---|---|
| Panel Thickness: | 10~150mm | Plate Size: | 2600*1300*40mm |
| Air Pressure: | 5~6KGF/CM2 | Dimensions: | 60M×2.4M×4.8M (L×W×H) |
| Voltage: | 380/50HZ | Weight: | 60T |
| Color: | Customized | Application: | Aluminum Honeycomb Panel |
| Highlight: | Honeycomb Composite Board Production Line,Sandwich Honeycomb Composite Board Production Line,Continuous Sandwich Honeycomb Composite Board Production Line |
||
Continuous Sandwich Honeycomb Composite Board Production Line Honeycomb Machine
1. Descriptions:
The continuous sandwich honeycomb aluminum composite board production line enters the pre composite state after being pressed into the core board thickness by the front rolling mill; Then, the polymer adhesive film and the heated upper and lower aluminum coils are pre bonded and transferred to the mirror wheel group. The five layers enter the rolling wheel of the forming and leveling composite machine at the same time, and undergo pre compounding, hot rolling, cold rolling, cooling and shaping, and cutting to length to form a sandwich type composite board.
The sandwich shaped composite board, through the feedback signal of the fixed length sensor, can make the cutting machine automatically clamp the board and move synchronously in the direction of transportation, and automatically return to its original position after cutting, which can effectively improve production efficiency.
Continuous Sandwich Honeycomb Composite Board Production Line Equipment components:
| Item | Name | QTY |
| 1 | Core Connection Platform | 1Set |
| 2 | Honeycomb core stretching platform | 1Set |
| 3 | Platform | 1Set |
| 4 | Pre compounding machine | 1Set |
| 5 | Oven | 2Set |
| 6 | Composite machine 1 & 2 | 2 sets, 2groups |
| 7 | Composite machine 3 | 2 sets, 4 groups |
| 8 | Aluminum coil unwinding machine (2 units each) | 4Set |
| 9 | Cooling machine | 1Set |
| 10 | Protective film laminating machine | 1Set |
| 11 | Vertical sawing machine | 1Set |
| 12 | 3 sets of synchronous drive machines | 1Set |
| 13 | Horizontal sawing machine | 1Set |
| 14 | Rear platform | 1Set |
| 15 | manipulator | 1Set |
| 16 | Mobile car | 2Set |
| 17 | Production line electrical cabinet | 1Set |
| 18 | Main console | 1Set |
| 19 | Sawing operation table | 1Set |
2. Specifications of Aluminum Honeycomb Sandwich Panel Continuous Production Line:
| Color | Orange (color can be customized according to customer requirements) | |
| Power supply | 380V, III, 50HZ | |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN | |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H | |
| Size | 60M×2.4M×4.8M (L×W×H) | |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) | |
| Total weight | 60T | |
| Production line operation direction | From left to right, from right to left (according to the actual needs of the customer), need to 4~6workers | |
3. Aluminum Honeycomb Sandwich Panel Continuous Production Line has several advantages:
Low running resistance
No deformation
Uniform temperature
High production efficiency
Saves labor
Reduces material waste.
4. Applications Of Aluminum Honeycomb Sandwich Board Continuous Production Line :
It is suitable for aluminum honeycomb panel, Honeycomb board continuous production line.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

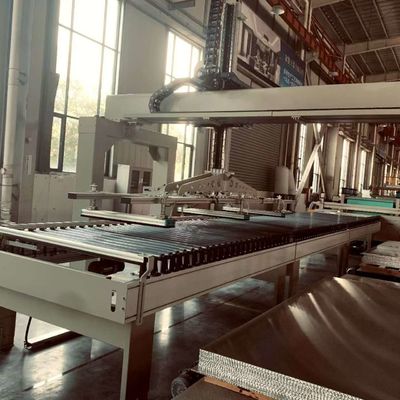

7. Production picture
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film
