Product Details:
|
| Product Name: | Continuous Production Line | Panel Size: | 1220*2440mm |
|---|---|---|---|
| Panel Thickness: | 10~150mm | Plate Size: | 2600*1300*40mm |
| Air Pressure: | 5~6KGF/CM2 | Dimensions: | 60M×2.4M×4.8M (L×W×H) |
| Voltage: | 380/50HZ | Weight: | 60T |
| Color: | Customized | Application: | Aluminum Honeycomb Panel |
| Highlight: | Aluminum Honeycomb Composite Board Production Line,Aluminum Honeycomb Composite Board Machine,Continuous Production Line Honeycomb Machine |
||
Aluminum Honeycomb Composite Panel Continuous Production Line Honeycomb Machine
1. Descriptions:
This equipment is designed for direct continuous three-layer aluminum composite, which is produced by laminating aluminum coils on both sides and then hot rolling and cutting them into flat aluminum-plastic composite panels on a dedicated production line.
Equipment components:
| Item | Name | QTY |
| 1 | Core Connection Platform | 1Set |
| 2 | Honeycomb core stretching platform | 1Set |
| 3 | Platform | 1Set |
| 4 | Pre compounding machine | 1Set |
| 5 | Oven | 2Set |
| 6 | Composite machine 1 & 2 | 2 sets, 2groups |
| 7 | Composite machine 3 | 2 sets, 4 groups |
| 8 | Aluminum coil unwinding machine (2 units each) | 4Set |
| 9 | Cooling machine | 1Set |
| 10 | Protective film laminating machine | 1Set |
| 11 | Vertical sawing machine | 1Set |
| 12 | 3 sets of synchronous drive machines | 1Set |
| 13 | Horizontal sawing machine | 1Set |
| 14 | Rear platform | 1Set |
| 15 | manipulator | 1Set |
| 16 | Mobile car | 2Set |
| 17 | Production line electrical cabinet | 1Set |
| 18 | Main console | 1Set |
| 19 | Sawing operation table | 1Set |
2. Specifications of Aluminum Honeycomb Composite Panel Continuous Production Line:
| Color | Orange (color can be customized according to customer requirements) | |
| Power supply | 380V, III, 50HZ | |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN | |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H | |
| Size | 60M×2.4M×4.8M (L×W×H) | |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) | |
| Total weight | 60T | |
| Production line operation direction | From left to right, from right to left (according to the actual needs of the customer), need to 4~6workers | |
3. Aluminum Honeycomb Composite Panel Continuous Production Line has several advantages:
High bonding efficiency
Low running resistance
No deformation
Uniform temperature
High production efficiency
Saves labor
Reduces material waste.
4. Applications Of Aluminum Honeycomb Composite Board Continuous Production Line :
It is suitable for aluminum honeycomb panel, Honeycomb board continuous production line.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

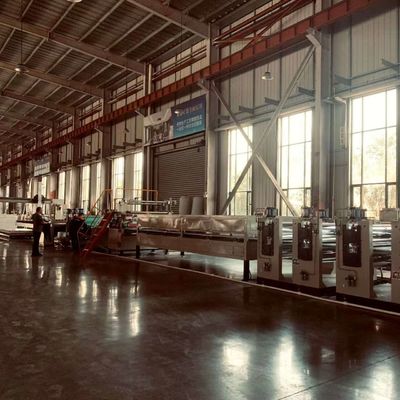

7. Production picture
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film
