Product Details:
|
| Product Name: | Continuous Production Line | Panel Size: | 1220*2440mm |
|---|---|---|---|
| Panel Thickness: | 10~150mm | Plate Size: | 2600*1300*40mm |
| Air Pressure: | 5~6KGF/CM2 | Dimensions: | 60M×2.4M×4.8M (L×W×H) |
| Voltage: | 380/50HZ | Weight: | 60T |
| Color: | Customized | Application: | Aluminum Honeycomb Panel |
| Highlight: | Aluminum Honeycomb Composite Panel Honeycomb Machine,Composite Panel Honeycomb Machine,Continuous Production Line Honeycomb Machine |
||
Aluminum Honeycomb Composite Panel Continuous Production Line Honeycomb Machine
1. Descriptions:
This device is designed specifically for direct continuous three-layer aluminum composite materials, produced by laminating aluminum coils on both sides and then hot rolling and cutting them into flat aluminum-plastic composite panels on a dedicated production line.
After the aluminum composite plate is pressed along the thickness of the core plate by the front rolling mill, it enters the pre composite state; Then, the polymer adhesive film and the heated upper and lower aluminum coils are pre bonded and transferred onto the mirror wheel assembly. The five layers simultaneously enter the rollers of the forming and leveling composite machine, and undergo pre mixing, hot rolling, cold rolling, cooling forming, and fixed length cutting to form a sandwich composite plate.
The sandwich shaped composite board, through the feedback signal of the fixed length sensor, can make the cutting machine automatically clamp the board and move synchronously in the direction of transportation, and automatically return to its original position after cutting.
2. Specifications of Aluminum Honeycomb Composite Panel Continuous Production Line:
| Color | Orange (color can be customized according to customer requirements) | |
| Power supply | 380V, III, 50HZ | |
| Air pressure | pressure | 5~6KGF/CM2 |
| Gas consumption | 1.0~1.2M3/MIN | |
| Industrial Water | pressure | 1-4KG/CM2 |
| Water volume | 0.5-1.5M3/H | |
| Size | 60M×2.4M×4.8M (L×W×H) | |
| Factory requirements | 80M×20M×10M (L×W×H) (Min.) | |
| Total weight | 60T | |
| Production line operation direction | From left to right, from right to left (according to the actual needs of the customer), need to 4~6workers | |
3. Aluminum Honeycomb Composite Panel Continuous Production Line has several advantages:
• High bonding efficiency
• Low running resistance
• No deformation
• Uniform temperature
4. Applications:
It is suitable for aluminum honeycomb panel, Honeycomb board continuous production line, high production efficiency, saves labor, and reduces material waste.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

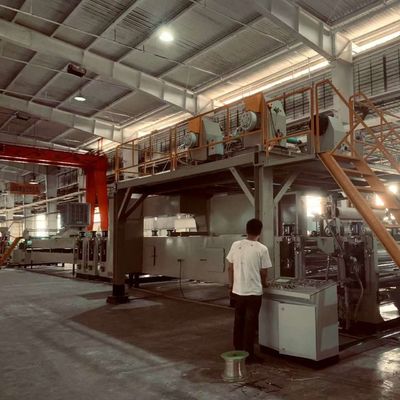

7. Production picture
8. FAQ
Q1. What is aluminum honeycomb panel continuous production line honeycomb panel equipment usd for?
A: The aluminum honeycomb panel continuous production line has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of aluminum honeycomb panel continuous production line honeycomb panel equipment?
A:The aluminum honeycomb panel continuous production line honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of aluminum honeycomb panel continuous production line?
A: Packed in plywood cases with wrapping film.
