Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale

I'm Online Chat Now

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale
Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale

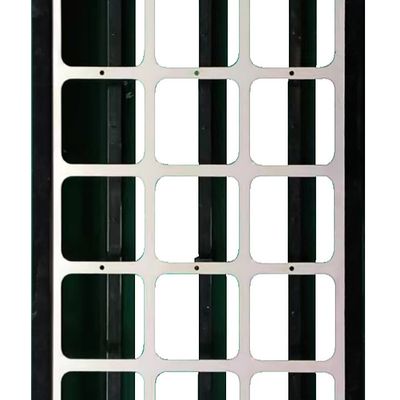

Large Image :  Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale

Description
Product Name: Micro Electrostatic Filter Screen Carrier: Dielectric Free Polymer New Material Electrode Film
Size: 780*254mm Or Customizable Rated Air Volume: 680 M3/h
Consumption: 5W Windage: 3-7-10Pa
Thickness: 90mm Filtering Efficiency: >98%
Applications: Various Ventilation Ducts Additional Function: Wind Sensing Switch
High Light:

Micro Electrostatic Filter

,

98% Cleaning Effect Micro Electrostatic Filter

,

Micro Electrostatic Filter For Sale

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale


1. Micro Electrostatic Filter Screen of Descriptions:

Micro static electricity is a new generation of purification technology, which is created through thorough innovation of materials and structures. It is an efficient, low resistance, high dust prevention, green and energy-saving, good weather resistance, and can be used for electronic purification and disinfection in harsh and complex environments.



The charging electrode of the micro electrostatic filter ionizes the air in the channel into ionized particles through glow discharge, and charges the fine particles that pass through it; The dust collector plate adopts a conductive non dielectric polymer new material electrode film as the carrier; The electrode membrane is divided into high potential group and low potential group. The micro electrostatic filter adsorbs moving particles in the air through a strong electric field generated between the electrode membranes of the high potential group and the low potential group. Meanwhile, bacteria and other microorganisms attached to the particles can also be killed.



2. Micro Electrostatic Filter Screen of Specifications:

Micro Electrostatic Filter Screen
Product name Micro Electrostatic Filter Screen
Carrier Dielectric free polymer new material electrode film
Size 580*254mm ,780*254mm or Customizable
Rated air volume 680 m3/h
Consumption 5w
Windage 3-7-10Pa
Thickness 90mm
Filtering efficiency



3. ​Micro Electrostatic Filter Screen​'s working principle:

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 0

4. ​Micro Electrostatic Filter Screen​'s features:

1. Strong adaptation: operates in harsh environments while maintaining high efficiency.

2. Low resistance: Under wind speed conditions, the resistance is small, and there is no significant increase in resistance during long-term operation.

3. Safe and low-carbon: Near zero ozone emissions, no discharge noise; Ultra thin design, low energy consumption.

4. High compatibility: can be flexibly used for various devices.

5. Efficient: PM2.5 and microbial purification efficiency are high.



5. Applications of Micro Electrostatic Filter Screen:



Fresh air system, air purifier, air conditioner, Box type air conditioning, various pipelines

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 1



Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 2

6. Micro Electrostatic Filter Screen of more pictures:

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 3

7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 4



8. Factory show



Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 5



Micro Electrostatic Filter With A Cleaning Effect Of Up To 98% For Sale 6



9. FAQ



Q1. What is Micro Electrostatic Filter Screen usd for?

A: The Micro electrostatic filter is suitable for various types of ventilation ducts.



Q2. What are the advantages of Micro Electrostatic Filter Screen?

A:

1. Efficient purification: Up to 99% one-time purification efficiency for PM2.5.

2. Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses.

3. Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity.

4. Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required.



Q3. What is the packaging method of Micro Electrostatic Filter Screen?

A: Micro electrostatic filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
