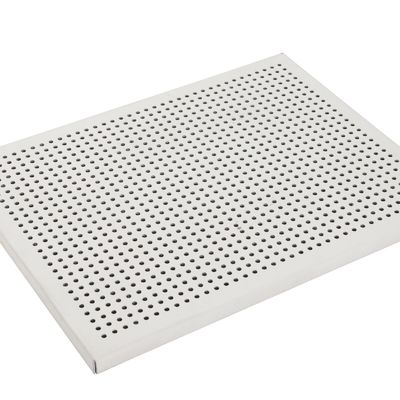

Photocatalyst Honeycomb Filters 500x100mm 300x200mm

I'm Online Chat Now

Photocatalyst Honeycomb Filters 500x100mm 300x200mm

Photocatalyst Honeycomb Filters 500x100mm 300x200mm
Photocatalyst Honeycomb Filters 500x100mm 300x200mm Photocatalyst Honeycomb Filters 500x100mm 300x200mm Photocatalyst Honeycomb Filters 500x100mm 300x200mm

Large Image :  Photocatalyst Honeycomb Filters 500x100mm 300x200mm

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Photocatalyst Honeycomb Filters 500x100mm 300x200mm

Description
Product Name: Aluminum Honeycomb Core Photocatalyst Filter Main Components: TiO2
Carrier: Stainless Steel, Ceramics Or Customizable Cell Size: 3.5mm Or Customizable
Size: 500*100, 300*200mm Or Customizable Frame: Customizable
Thickness: 5, 15mm Or Customizable Color: White
Applications: Air Conditioner Advantage: High Efficiency Decomposition
High Light:

Photocatalyst honeycomb filters

,

honeycomb filters 500x100mm

,

300x200mm honeycomb stainless steel filter

Photocatalyst Filter Screen High Quality With Different Carriers


1. Descriptions:



Photocatalyst series products are one of the main core advantage products of our company. Products with beautiful appearance, good structural strength and waste gas treatment performance are preferred.



The product selects high-quality nano titanium dioxide as the basic material, the carrier mainly adopts aluminum honeycomb core, sponge, aluminum foil mesh, foamed ceramics, foamed metal and other materials as the carrier, and aluminum profile, black cardboard (or other color paper), sponge strip, stainless steel and other materials as the product edge sealing materials to achieve the use effect in different use scenarios.



2. Specifications:



Aluminum honeycomb core photocatalyst filter
Specifications Side length (mm) Foil Thickness (mm)
BHC3003-0.8-0.021L 0.8 0.021
BHC3003-0.8-0.025L 0.025
BHC3003-0.8-0.03L 0.03
BHC3003-1-0.025L 1 0.025
BHC3003-1-0.03L 0.03
BHC3003-1-0.04L 0.04
BHC3003-1.5-0.03L 1.5 0.03
BHC3003-1.5-0.04L 0.04
BHC3003-1.5-0.05L 0.05
BHC3003-1.83-0.04L 1.83 0.04
BHC3003-1.83-0.05L 0.05
BHC3003-1.83-0.06L 0.06
BHC3003-2-0.04L 2 0.04
BHC3003-2-0.05L 0.05
BHC3003-2-0.06L 0.06
BHC3003-2.5-0.04L 2.5 0.04
BHC3003-2.5-0.05L 0.05
BHC3003-2.5-0.06L 0.06
BHC3003-3-0.04L 3 0.04
BHC3003-3-0.05L 0.05
BHC3003-3-0.06L 0.06
BHC3003-3-0.08L 0.08
Size 100*100, 300*300, 500*500, 1000*1000mm or customizable
Surface spraying Photocatalyst, activated carbon, activated manganese
Frame Aluminum, Sponge, Paper frame
Materials Al3003 or other materials
Supply form Expanded
Unperforated



3. Aluminum Honeycomb Core Photocatalyst Filter​ has several advantages:



• High efficiency decomposition

• No dust

• No odor

• Custom size

• Custom frame

• Coating thickness

• Environment protection



4. Applications:



Fresh air system, air purifier, air conditioner

Photocatalyst Honeycomb Filters 500x100mm 300x200mm 0



Photocatalyst Honeycomb Filters 500x100mm 300x200mm 1



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.



6. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:



Photocatalyst Honeycomb Filters 500x100mm 300x200mm 2

Photocatalyst Honeycomb Filters 500x100mm 300x200mm 3



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.


8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Photocatalyst Honeycomb Filters 500x100mm 300x200mm 4



9. Factory show



Photocatalyst Honeycomb Filters 500x100mm 300x200mm 5



Photocatalyst Honeycomb Filters 500x100mm 300x200mm 6



Photocatalyst Honeycomb Filters 500x100mm 300x200mm 7



10. FAQ



Q1. What is Aluminum Honeycomb Core Photocatalyst Filter usd for?

A: The aluminum honeycomb core photocatalyst filter is used for Air conditioning, fresh air system, filter.



Q2. What are the advantages of Aluminum Honeycomb Core Photocatalyst Filter?

A: Aluminum honeycomb core photocatalyst filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.



Q3. What is the packaging method of Aluminum Honeycomb Core Photocatalyst Filter?

A: Aluminum honeycomb core photocatalyst filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
