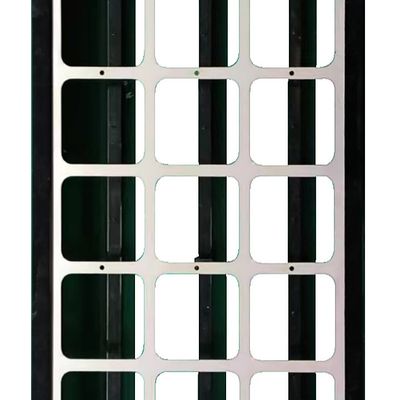

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens

I'm Online Chat Now

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens
Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens

Large Image :  Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens

Description
Product Name: Micro Electrostatic Filter Screen Carrier: Dielectric Free Polymer New Material Electrode Film
Size: 780*254mm Or Customizable Rated Air Volume: 680 M3/h
Consumption: 5W Windage: 3-7-10Pa
Thickness: 90mm Filtering Efficiency: >98%
Applications: Various Ventilation Ducts Additional Function: Wind Sensing Switch
High Light:

Micro Electrostatic Filter Screens

,

Low Energy Consumption Electrostatic Filter Screens

,

Electrostatic Filter Screens Manufacturer'S Direct Sales

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens


1. Micro Electrostatic Filter Screen of Descriptions:

Micro static electricity, as a new generation of purification technology, is an electronic purification and disinfection technology created through thorough innovation of materials and structures, which is efficient, low resistance, high dust tolerance, green and energy-saving, good weather resistance, and can be used in harsh and complex environments.



The charging electrode of a micro electrostatic air filter ionizes the air in the channel into ionized particles through glow discharge, which charges the passing fine particles; The dust collection electrode plate adopts a conductive non dielectric polymer new material electrode film as the carrier; The electrode membrane is divided into high potential group and low potential group. The filter adsorbs moving particles in the air through the strong electric field generated between the electrode membranes of the high and low potential groups. At the same time, bacteria and other microorganisms attached to the particles are synchronously collected and killed in the strong electric field.



2. Micro Electrostatic Filter Screen of Specifications:

Micro Electrostatic Filter Screen
Product name Micro Electrostatic Filter Screen
Carrier Dielectric free polymer new material electrode film
Size 580*254mm ,780*254mm or Customizable
Rated air volume 680 m3/h
Consumption 5w
Windage 3-7-10Pa
Thickness 90mm
Filtering efficiency



3. ​Micro Electrostatic Filter Screen​'s working principle:

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 0

4. ​Micro Electrostatic Filter Screen​'s features:



Micro electrostatic filter screen's features:

Efficient purification: Up to 99% one-time purification efficiency for PM2.5

Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses

Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity

Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required



5. Applications of Micro Electrostatic Filter Screen:



Fresh air system, air purifier, air conditioner, Box type air conditioning, various pipelines

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 1



Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 2

6. Micro Electrostatic Filter Screen of more pictures:

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 3

7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 4



8. Factory show



Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 5



Manufacturer'S Direct Sales Of Low Energy Consumption Micro Electrostatic Filter Screens 6



9. FAQ



Q1. What is Micro Electrostatic Filter Screen usd for?

A: The Micro electrostatic filter is suitable for various types of ventilation ducts.



Q2. What are the advantages of Micro Electrostatic Filter Screen?

A:

1. Efficient purification: Up to 99% one-time purification efficiency for PM2.5.

2. Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses.

3. Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity.

4. Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required.



Q3. What is the packaging method of Micro Electrostatic Filter Screen?

A: Micro electrostatic filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
