Product Details:
|
| Product Name: | Micro Electrostatic Filter Screen | Carrier: | Dielectric Free Polymer New Material Electrode Film |
|---|---|---|---|
| Size: | 780*254mm Or Customizable | Rated Air Volume: | 680 M3/h |
| Consumption: | 5W | Windage: | 3-7-10Pa |
| Thickness: | 90mm | Filtering Efficiency: | ＞98% |
| Applications: | Various Ventilation Ducts | Additional Function: | Wind Sensing Switch |
| Highlight: | Reusable Micro Electrostatic Filter Screen,980*254mm Micro Electrostatic Filter Screen,Washable Micro Electrostatic Filter Screen |
||

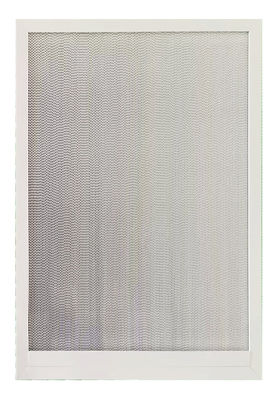

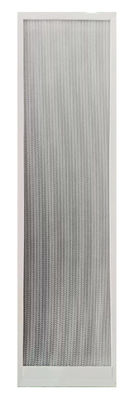

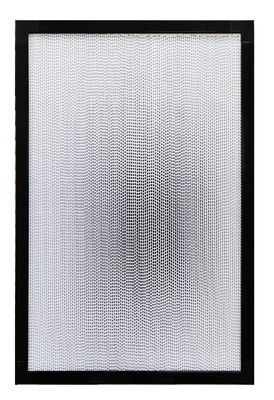

Reusable Zero Consumable Micro Electrostatic Filter Screen Washable 980*254mm
1. Micro Electrostatic Filter Screen of Descriptions:
The micro electrostatic air filter mainly uses the charging electrode to ionize the air in the channel into ionized particles through glow discharge, which charges the fine particles passing through. The dust collection electrode plate uses a conductive non dielectric polymer new material electrode membrane as the carrier. The electrode membrane is divided into high potential group and low potential group. The filter adsorbs moving particles in the air through the strong electric field generated between the high and low potential group electrode membranes. At the same time, bacteria and other microorganisms attached to the particles are synchronously collected and killed in the strong electric field.
2. Micro Electrostatic Filter Screen of Specifications:
| Micro Electrostatic Filter Screen | |
| Product name | Micro Electrostatic Filter Screen |
| Carrier | Dielectric free polymer new material electrode film |
| Size | 580*254mm ,780*254mm or Customizable |
| Rated air volume | 680 m3/h |
| Consumption | 5w |
| Windage | 3-7-10Pa |
| Thickness | 90mm |
| Filtering efficiency | ＞ |
3. Micro Electrostatic Filter Screen has several advantages:
Efficient purification: Up to 99% one-time purification efficiency for PM2.5
Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses
Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity
Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required
Micro electrostatic fliter screen of Core advantages:
High compatibility: can be flexibly used for various devices.
Efficient: PM2.5 and microbial purification efficiency are high.
High energy: With a wide adsorption area, it can capture particles of 0.01 micrometers.
Economy: Long maintenance cycle, significantly reduced operating and maintenance costs.
Washable: Can be washed repeatedly with zero consumables.
4. Applications of Micro Electrostatic Filter Screen:
• Fresh air system, air purifier, air conditioner, Box type air conditioning, various pipelines
5. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is Micro Electrostatic Filter Screen usd for?
A: The Micro electrostatic filter is suitable for various types of ventilation ducts.
Q2. What are the advantages of Micro Electrostatic Filter Screen?
A:
1. Efficient purification: Up to 99% one-time purification efficiency for PM2.5.
2. Disinfection and sterilization: block bacteria, with a fire extinguishing rate of up to 99% against viruses.
3. Low carbon and environmental protection: saving energy up to 5000 kWh/year/10000 wind capacity.
4. Near zero maintenance cost: Design lifespan>15 years, during which only cleaning and no replacement are required.
Q3. What is the packaging method of Micro Electrostatic Filter Screen?
A: Micro electrostatic filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
