Product Details:
Place of Origin: Suzhuo, Jiangsu Province, China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm

Description
Product Name: Aluminum Honeycomb Filter Side Length: 0.4, 0.5, 0.6, 0.8, 1.0, 1.83, 2, 2.5, 3, 4, 5mm Or Customizable
Cell Size: 1.04-8.66mm Or Customizable Size: 1000*1000mm Or Customizable
Base Materials: Al3003 Color: White
Thickness: 2-80mm Or Customizable Applications: Indoor, Air Cleaner, Air-conditioning
Foil Thickness: 0.021, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1mm Main Components: TiO2
High Light:

Photocatalyst Honeycomb Filter

,

2mm Honeycomb Filter

,

Photocatalyst Core Honeycomb Filter

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm


1. Descriptions:



The aluminum honeycomb filter uses our company's aluminum honeycomb core as the substrate, surface spraying of titanium dioxide. With a structural strength generally higher than the industry level, and a deodorization efficiency of over 90%, ensuring the effectiveness of the product during use.



Moreover, adopting a honeycomb structure can effectively reduce wind resistance and increase the contact time between exhaust gas and reaction medium.



The coating material of our company is titanium dioxide of high quality. After the improvement of the company's unique formula, the photocatalytic effect of titanium dioxide is better. At last, the company will separately arrange the special photocatalytic stock liquid combined with the use of titanium dioxide coating, so that the effect of the company's products can reach the leading level in the industry.



2. Specifications:



Aluminum honeycomb filter
Specifications Side length (mm) Foil Thickness (mm)
BHC3003-0.8-0.021L 0.8 0.021
BHC3003-0.8-0.025L 0.025
BHC3003-0.8-0.03L 0.03
BHC3003-1-0.025L 1 0.025
BHC3003-1-0.03L 0.03
BHC3003-1-0.04L 0.04
BHC3003-1.5-0.03L 1.5 0.03
BHC3003-1.5-0.04L 0.04
BHC3003-1.5-0.05L 0.05
BHC3003-1.83-0.04L 1.83 0.04
BHC3003-1.83-0.05L 0.05
BHC3003-1.83-0.06L 0.06
BHC3003-2-0.04L 2 0.04
BHC3003-2-0.05L 0.05
BHC3003-2-0.06L 0.06
BHC3003-2.5-0.04L 2.5 0.04
BHC3003-2.5-0.05L 0.05
BHC3003-2.5-0.06L 0.06
BHC3003-3-0.04L 3 0.04
BHC3003-3-0.05L 0.05
BHC3003-3-0.06L 0.06
BHC3003-3-0.08L 0.08
Size 100*100, 300*300, 500*500, 1000*1000mm or customizable
Surface spraying Photocatalyst, activated carbon, activated manganese
Frame Aluminum, Sponge, Paper frame
Materials Al3003 or other materials
Supply form Expanded
Unperforated



3. Aluminum Honeycomb Filter​ has several advantages:



• High efficiency decomposition

• No dust

• No odor

• Custom size

• Custom frame

• Coating thickness

• Environment protection



4. Applications:



Fresh air system, air purifier, air conditioner

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 0

5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.



6. Aluminum Honeycomb Filter of more pictures:

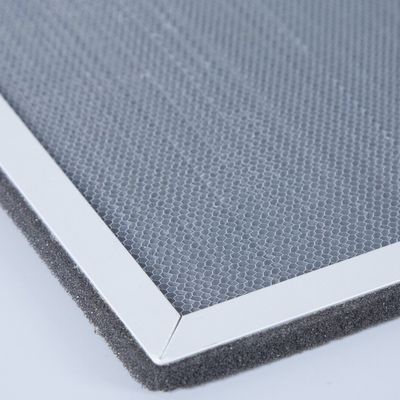

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 1

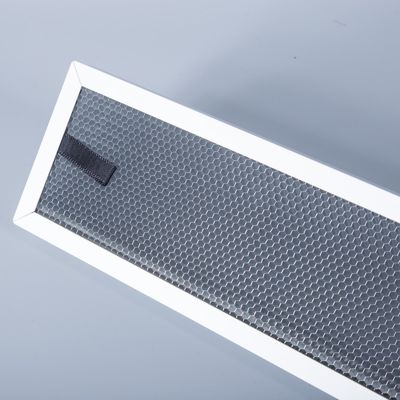

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 2



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.


8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 3



9. Factory show



Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 4



Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 5



Aluminum Honeycomb Filter Honeycomb Core Photocatalyst Filter With Side Length 2mm 6



10. FAQ



Q1. What is Aluminum Honeycomb Filter usd for?

A: The aluminum honeycomb filter is used for Air conditioning, fresh air system, filter.



Q2. What are the advantages of Aluminum Honeycomb Filter?

A: Aluminum honeycomb filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.



Q3. What is the packaging method of Aluminum Honeycomb Filter?

A: Aluminum honeycomb filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
