Product Details:
|
Product Name: | Aluminum Honeycomb Filter | Side Length: | 1.0, 1.83, 2, 2.5mm Or Customizable |
---|---|---|---|
Cell Size: | 1.04, 3.2mm Or Customizable | Size: | 500*500mm Or Customizable |
Main Components: | TiO2 | Thickness: | 5, 10, 20mm Or Customizable |
Base Materials: | Al3003 | Color: | White |
Applications: | Indoor | Foil Thickness: | 0.04, 0.05, 0.06mm |
Highlight: | Photocatalyst Honeycomb Filter,No Frame Honeycomb Filter,Photocatalyst Core Honeycomb Filter |
No Frame Aluminum Honeycomb Filter Honeycomb Photocatalyst Filter Core For Smell Remover
1. Descriptions:
Photocatalyst is the general name of a class of semiconductor materials with photocatalytic function represented by TiO2. Aluminum honeycomb filter has a wide variety, and the corresponding light wave wavelengths of photocatalysts of different materials are also different.
Titanium dioxide (TiO2) is a type of photocatalyst raw material. Ordinary titanium dioxide needs to be exposed to light with a wavelength below 388nm (belonging to ultraviolet light) (photocatalyst series products generally choose dual frequency ultraviolet lamps at 185nm and 284nm) to exert photocatalytic effects.
Aluminum honeycomb core with side length less than 3mm is generally used for photocatalyst filter screen with aluminum honeycomb core as carrier, so the effect will be better.
2. Specifications:
Aluminum honeycomb filter | ||
Specifications | Side length (mm) | Foil Thickness (mm) |
BHC3003-0.8-0.021L | 0.8 | 0.021 |
BHC3003-0.8-0.025L | 0.025 | |
BHC3003-0.8-0.03L | 0.03 | |
BHC3003-1-0.025L | 1 | 0.025 |
BHC3003-1-0.03L | 0.03 | |
BHC3003-1-0.04L | 0.04 | |
BHC3003-1.5-0.03L | 1.5 | 0.03 |
BHC3003-1.5-0.04L | 0.04 | |
BHC3003-1.5-0.05L | 0.05 | |
BHC3003-1.83-0.04L | 1.83 | 0.04 |
BHC3003-1.83-0.05L | 0.05 | |
BHC3003-1.83-0.06L | 0.06 | |
BHC3003-2-0.04L | 2 | 0.04 |
BHC3003-2-0.05L | 0.05 | |
BHC3003-2-0.06L | 0.06 | |
BHC3003-2.5-0.04L | 2.5 | 0.04 |
BHC3003-2.5-0.05L | 0.05 | |
BHC3003-2.5-0.06L | 0.06 | |
BHC3003-3-0.04L | 3 | 0.04 |
BHC3003-3-0.05L | 0.05 | |
BHC3003-3-0.06L | 0.06 | |
BHC3003-3-0.08L | 0.08 | |
Size | 100*100, 300*300, 500*500, 1000*1000mm or customizable | |
Surface spraying | Photocatalyst, activated carbon, activated manganese | |
Frame | Aluminum, Sponge, Paper frame | |
Materials | Al3003 or other materials | |
Supply form | Expanded | |
Unperforated |
3. Aluminum Honeycomb Filter has several advantages:
• High efficiency decomposition
• No dust
• No odor
• Custom size
• Custom frame
• Coating thickness
• Environment protection
4. Applications:
• Fresh air system, air purifier, air conditioner
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.

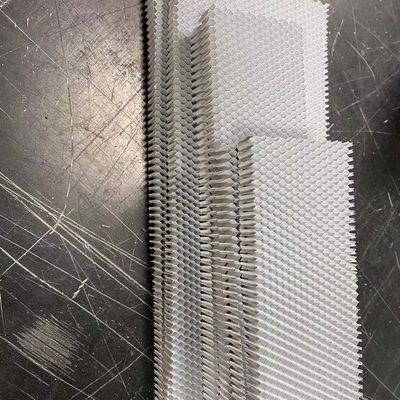

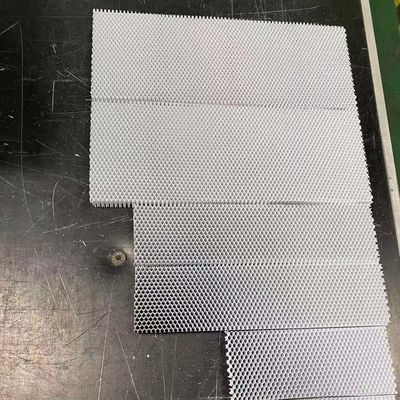

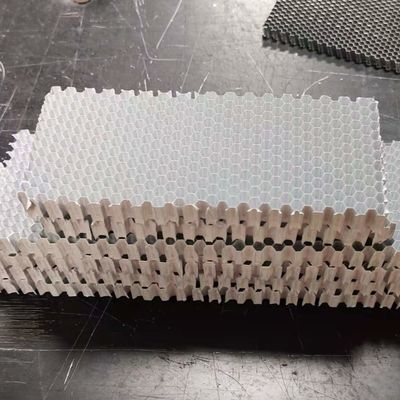

6. Aluminum Honeycomb Filter of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
10. FAQ
Q1. What is Aluminum Honeycomb Filter usd for?
A: The aluminum honeycomb filter is used for Air conditioning, fresh air system, filter.
Q2. What are the advantages of Aluminum Honeycomb Filter?
A: Aluminum honeycomb filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.
Q3. What is the packaging method of Aluminum Honeycomb Filter?
A: Aluminum honeycomb filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
