Product Details:
|
| Product Name: | Aluminum Honeycomb Louver | Color: | Black |
|---|---|---|---|
| Side Length: | 2mm Or Customizable | Size: | φ110 Or Customizable |
| Cell Size: | 4.33mm Or Customizable | Materials: | 3003 |
| Thickness: | 12.7mm Or Customizable | Foil Thickness: | 0.04, 0.05mm |
| Advantage: | Light Weight | Applications: | Lighting Industry Or Other |
| High Light: | 1.4mm Aluminum Honeycomb Grid Core,Small Aperture Aluminum Honeycomb Grid Core,Anti Dizziness Honeycomb Louver |
||

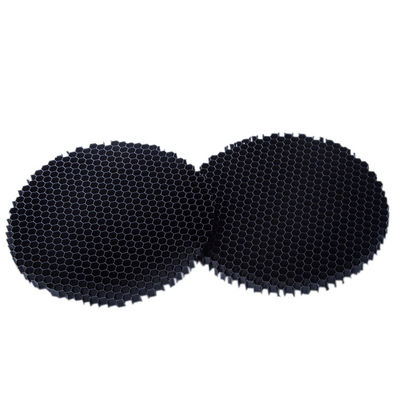

Ultra Small Aperture 1.40mm Aluminum Honeycomb Grid Core For LED Light Anti Dizziness
1. Descriptions:
Aluminum honeycomb grid core has the advantages of regular hexagon, good mechanical properties and flat surface. It is mainly used for all kinds of intelligent traffic lights, led fill lights, film and television lamps and photographic accessories, which is conducive to anti glare and soft lighting to make the beam more uniform.
Aluminum honeycomb grid core is made of microporous aluminum honeycomb core, and the side length of honeycomb core is less than 3mm. Microporous aluminum honeycomb core is made of multilayer aluminum foil by gluing, hot pressing, sawing and stretching. Aluminum honeycomb grid core adopts microporous aluminum honeycomb core and is sprayed with black. Various frameworks can be added according to customer requirements.
2. Specifications:
Aluminum Honeycomb Grid Core
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 | |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 | |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 | |
| BHC3003-0.8-0.03L | 0.03 | 169 | |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 | |
| BHC3003-1-0.04L | 0.04 | 183 | |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 | |
| BHC3003-1.5-0.05L | 0.05 | 152 | |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 | |
| BHC3003-1.83-0.06L | 0.06 | 148 | |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 | |
| BHC3003-2-0.06L | 0.06 | 135 | |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 | |
| BHC3003-2.5-0.06L | 0.06 | 110 | |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 | |
| BHC3003-3-0.06L | 0.06 | 91 | |
| BHC3003-3-0.08L | 0.08 | 122 | |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 | |
| BHC3003-3.5-0.06L | 0.06 | 82 | |
| BHC3003-3.5-0.08L | 0.08 | 110 | |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 | |
| BHC3003-4-0.06L | 0.06 | 68 | |
| BHC3003-4-0.08L | 0.08 | 92 | |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 | |
| BHC3003-5-0.08L | 0.08 | 72 | |
| BHC3003-5-0.1L | 0.1 | 91 | |
| Shape | Round, square | ||
| Clour | Black | ||
| Alloy | Al3003 and Al5052 | ||
| Supply form | Unexpanded (block, strip) or expanded(slice) | ||
| Unperforated | |||
3. Aluminum honeycomb grid core has several advantages:
• Anti glare
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
4. Applications:

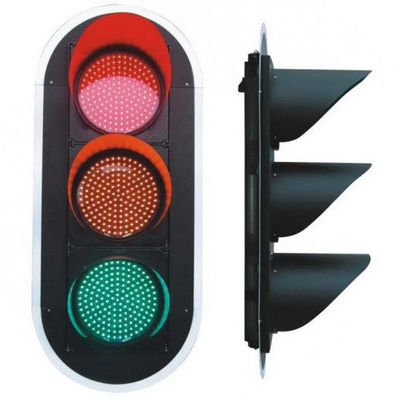

• Pxygen generator equipments, Lighting industry, Film shooting, Traffic lights, Industry, Printing machine platform and so on.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb grid (louver) of quality control of parts, processing, testing, packaging, etc.
6. Aluminum honeycomb grid core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb grid core usd for?
A: Aluminum honeycomb grid core which has excellent rigidity and is one of the best lighting materials. It has been widely used in the decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb grid core?
A: Aluminum honeycomb grid core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution. When used in lamps, it is conducive to anti glare and make the light more uniform and soft.
Q3. What is the packaging method of aluminum honeycomb grid core?
A: Aluminum honeycomb grid core of samples are packed in cardboard and bulk orders are packed in plywood cases.
