Product Details:
|
| Product Name: | Heated Press Machine | Maximum Pressure: | 100T |
|---|---|---|---|
| Number Of Work Layer: | 4-8 Layer | Panel Size: | 1220*2440mm |
| Hot Plate Spacing: | 150mm | Hot Plate Size: | 2600*1300*40mm |
| Diameter Of Oil-cylinder*qty: | Φ100*8mm | Dimensions: | 3000*1400*2400mm |
| Voltage: | 380/50HZ | Weight: | 10000kg |
| High Light: | 380v hot press machine,heated press machine 100t,honeycomb hot press machine |
||

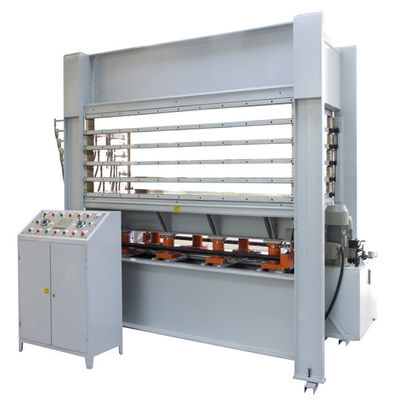

Heated Press Machine Hot Press Machine Effectively Saving Time And Improving Efficiency
1. Descriptions:
Beecore is committed to researching and promoting the production process and equipment of honeycomb composite panels, utilizing high-temperature composite and panel hot pressing technology to ensure the integrity, strength, and flatness of aluminum honeycomb panels.
• Mainly used for hot press forming of aluminum honeycomb panels.
• Mainly composed of fuselage, pressure plate, hydraulic system, heating system and electrical parts.
• The fuselage: welded by profiles and steel plates to ensure that the fuselage has sufficient strength.
• Pressure plate: the pressure plate is solid plate, the oil path in the plate is processed by deep hole drilling, with good leakproof and pressure resistance performance.
• Hydraulic system: the hydraulic system consists of a fuel tank, an oil pump, a plurality of hydraulic valves and a cylinder.
• Heating system: the heating system consists of a heat transfer oil tank, an electric heating tube, a hot oil pump and a fuel pipe.
• Electrical part consists of main circuit and control circuit.
2. Specifications:
Heated Press Machine
| Description | Unit | BHM-CH-A100T |
| Maximum pressure | T | 100 |
| Number of work layer | layer | 4-8 |
| Hot plate spacing | mm | 150 |
| Panel size | mm | 2440*1220 |
| Hot plate size | mm | 2600*1300*40 |
| Power requirements | V/Hz | 380/50 |
| Diameter of Oil-cylinder*qty | mm | Φ100*8 |
| The oil-cylinder stroke | mm | 600 |
| Range of working temperature | ℃ | Room tem-200 |
| Installed power | kW | 96 |
| Heating method | Heat-transfer oil | |
| Dimensions | mm | 3000*1400*2400 |
| Weight | kg | 10000 |
| Voltage | V/Hz | 380/50 |
3. Heated Press Machine has several advantages:
• High bonding efficiency
• Low running resistance
• No deformation
• Uniform temperature
4. Applications:
It is suitable for pasting aluminum plate, HPL, stainless steel plate, fiberglass board, etc. on the surface of aluminum honeycomb core, foam aluminum, plywood, etc., and is widely used in the automotive industry: motorhome compartment panel, FRP refrigerated compartment panel; Rail transit; Building materials industry, etc; Furniture industry: various types of boards such as cabinet boards.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for honeycomb panel equipment of quality control of parts, processing, testing, packaging, etc.

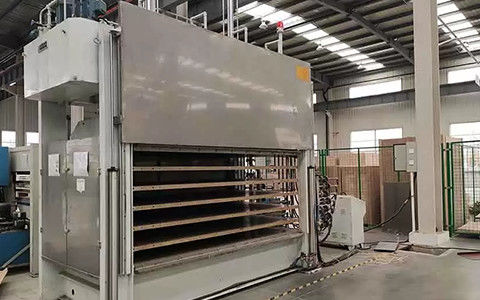

6. Honeycomb panel equipment heated press machine of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Production picture
9. FAQ
Q1. What is heated press machine honeycomb panel equipment usd for?
A: The heated press machine honeycomb panel equipment has been widely used in aluminum honeycomb panel.
Q2. What are the advantages of heated press machine honeycomb panel equipment?
A:The heated press machine honeycomb panel equipment is high efficiency and low cost.
Q3. What is the packaging method of heated press machine?
A: Packed in plywood cases with wrapping film.
