Product Details:
|
Product Name: | Automatic Honeycomb Gluing Machine | Type: | Automatic |
---|---|---|---|
Coating Width: | 600-1600mm | Voltage: | 380 |
Positioning Accuracy: | ±2 | Dosage Accuracy: | ≤±2% |
Air Supply: | 6.0-8.0 Bar | Power Supply: | 3 Phase, 380V, 50HZ |
Capacity Max: | 8.0 KW | Size: | Can Be Accept Customized |
High Light: | honeycomb panels customizable glue machine,customizable honeycomb machine,honeycomb panels glue machine |
A Glue Machine Capable Of Producing Large-Sized Honeycomb Panels Customizable Size
1. Descriptions of Honeycomb Gluing Machine:

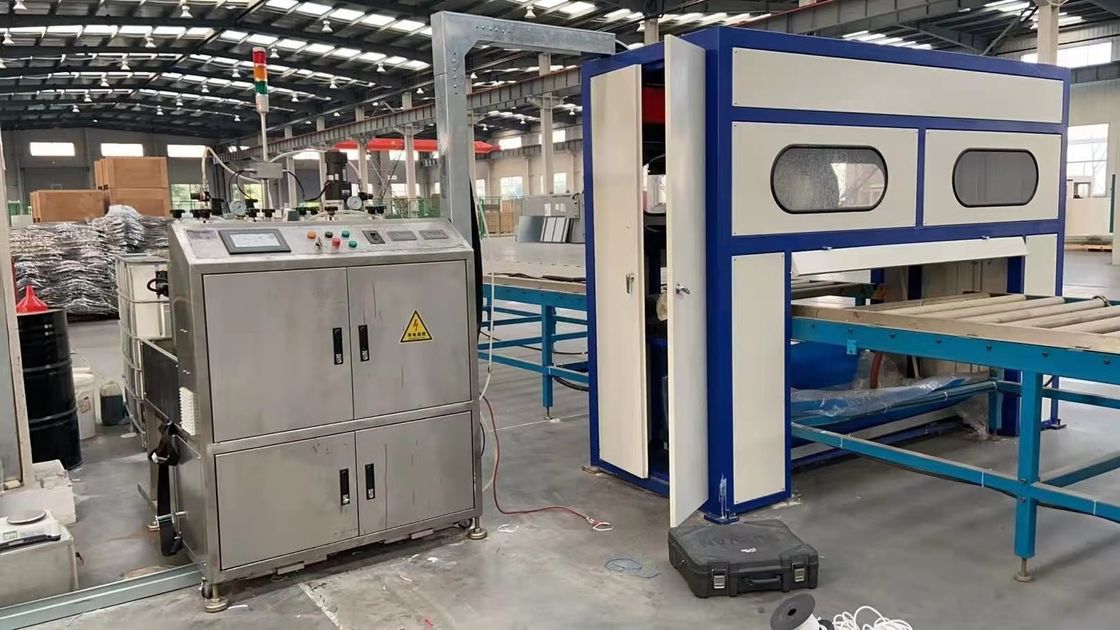

The honeycomb gluing machine consists of a main machine, a coating room and two power transmission lines. It has the characteristics of accurate measurement, uniform mixing, stable coating, simple operation, automatic feeding and high degree of automation.
Working spraying amount: 1000-4500g / min,
Spraying width: 600-1600mm (Standard width 600mm),
Patented glue pouring head width: 600mm, one set,
The plate with width of 1240mm is continuously glued, and the gluing speed range is 6-12M / min,
Flow accuracy: ≤± 5%,
Mixing ratio: it can be customized according to customer requirements (such as 100:25),
Proportioning accuracy: ≤± 2% (100:25 ± 2),
Air source: 6.0-8.0bar,
Power supply: three-phase five wire system, 380V,50Hz, AC,
Maximum power: 8.0kw,
Equipment size: 13000(L)*1000(W)mm.
2. Specifications of honeycomb gluing machine:
Automatic Honeycomb Gluing Machine | ||
Description | Unit | |
Production rate | m/min | 1000-4500g/ min |
Coating width | mm | 600- 1600mm |
Positioning accuracy | mm | ±2 |
Dosage accuracy | mm | ≤±2% |
Air supply | bar | 6.0-8.0 |
Power supply | / | 3 phase, 380 V, 50HZ |
Capacity max | mm | 8.0 KW |
3. Honeycomb gluing machine has several advantages:
3. Automatic aerosol cleaning function: the automatic cleaning time and cleaning amount can be set according to the gel setting time, and the cleaning materials can be collected in closed containers to avoid the solvent polluting the environment during cleaning without manual cleaning, and solve the problem of easy blockage of similar equipment at the same time.
4.Germany imported precision chemical metering pump, power and control are imported well-known brands.
5. The main agent and curing agent have automatic feeding function (there is a pneumatic exhaust valve on the curing agent barrel cover).
6. Product structure - the power box and electric box are made of stainless steel, and the marks are corrosion carved, professional and beautiful.
4. Applications:

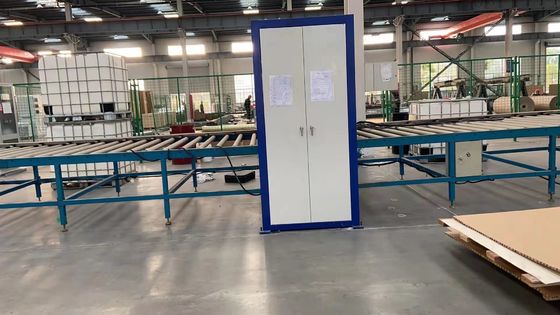

5. Honeycomb Gluing Mchine of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
