Product Details:
|
| Product Name: | Automatic Honeycomb Gluing Machine | Type: | Automatic |
|---|---|---|---|
| Coating Width: | 600-1600mm | Voltage: | 380 |
| Positioning Accuracy: | ±2 | Dosage Accuracy: | ≤±2% |
| Air Supply: | 6.0-8.0 Bar | Power Supply: | 3 Phase, 380V, 50HZ |
| Capacity Max: | 8.0 KW | Size: | Can Be Accept Customized |
| High Light: | honeycomb panels automatic gluing machine,automatic gluing machine 380v,4500g/min honeycomb machine |
||

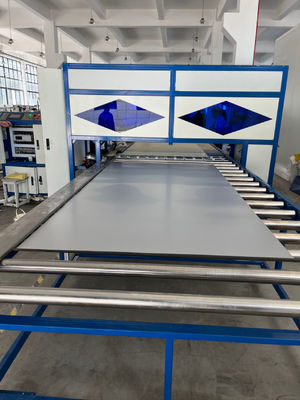

Automatic Honeycomb Gluing Machine For Making Honeycomb Panels Reduce Labor Costs
1. Descriptions of Honeycomb Gluing Machine:
This honeycomb gluing machine is a two-component polyurethane glue coating production line. The honeycomb gluing machine has a variety of different width specifications and length specifications. It can be reasonably selected according to the user's needs. Maximum length of single conveyor line: 6000 mm.
The honeycomb gluing machine consists of a main machine, a coating room and two power transmission lines. It has the characteristics of accurate measurement, uniform mixing, stable coating, simple operation, automatic feeding and high degree of automation.
- Coating capacity: 10-30g/5s
- Coating width:500-1600mm
- PU Glue mixing ratio: from 4:1 to 5:1
- Glue filling accuracy: ±2%
- Glue viscosity: 100 cps - 15000 cps
- Air supply: 0.5 Mpa - 0.8Mpa
- Operation mode : Auto/Manual
- Proportion control: PLC /Metering pump
- Flow control:Digital input
- Programming mode:Teach-in Programming
- Mixing mode:Dynamic mixing
- Power:220V/50Hz/3200W
2. Specifications of honeycomb gluing machine:
| Automatic Honeycomb Gluing Machine | ||
| Description | Unit | |
| Production rate | m/min | 1000-4500g/ min |
| Coating width | mm | 600- 1600mm |
| Positioning accuracy | mm | ±2 |
| Dosage accuracy | mm | ≤±2% |
| Air supply | bar | 6.0-8.0 |
| Power supply | / | 3 phase, 380 V, 50HZ |
| Capacity max | mm | 8.0 KW |
3. Honeycomb gluing machine has several advantages:
3. Automatic aerosol cleaning function: the automatic cleaning time and cleaning amount can be set according to the gel setting time, and the cleaning materials can be collected in closed containers to avoid the solvent polluting the environment during cleaning without manual cleaning, and solve the problem of easy blockage of similar equipment at the same time.
4.Germany imported precision chemical metering pump, power and control are imported well-known brands.
5. The main agent and curing agent have automatic feeding function (there is a pneumatic exhaust valve on the curing agent barrel cover).
6. Product structure - the power box and electric box are made of stainless steel, and the marks are corrosion carved, professional and beautiful.

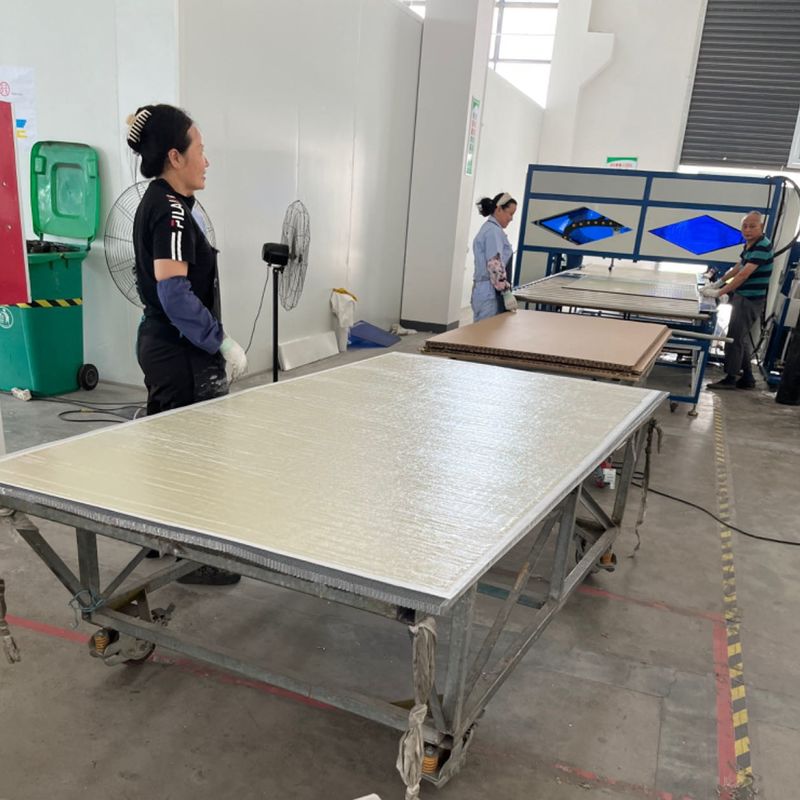

4. Applications:
5. Honeycomb Gluing Mchine of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory picture
8. Exhibition Show
9. Company certificate
