Product Details:
|
| Product Name: | Aramid Honeycomb Core | Size: | 1220*2440，1300*2600mm |
|---|---|---|---|
| Thickness: | 3, 5, 8, 10, 12mm Or Costomizable | Cell Size: | 3.2, 4.8mm Or Customizable |
| Density: | 32, 48, 64, 72kg/m3 Or Customizable | Materials: | Aramid Fiber Paper |
| Advantages: | Super Light | Color: | Brown |
| Package: | Plywood Case | Applications: | Rail Transit, Sport Products Or Other |
| High Light: | 3mm Thickness Aramid Honeycomb Core,Aramid Paper Honeycomb Core,Customizable Aramid Honeycomb Core |
||

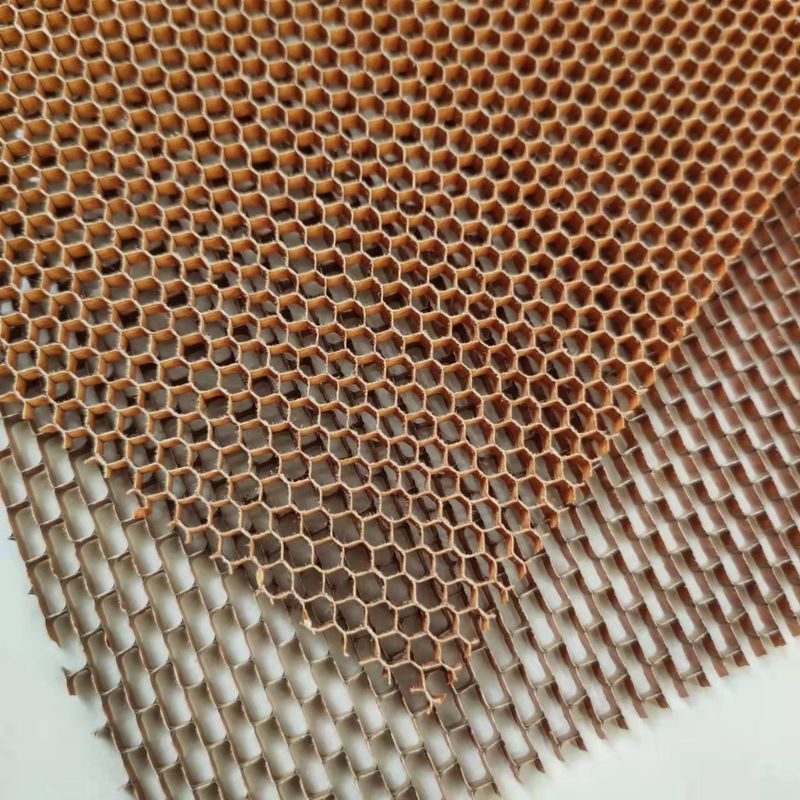

Aramid Paper Honeycomb Core Customizable 3mm Thickness High Qualiy
Customizable 3mm Thick Aramid Honeycomb Paper Core For Standard Size
1. Descriptions:
Aramid fiber honeycomb core, also known as nomex honeycomb core, is an ultra-light, high-strength non-metallic material produced using aramid fiber paper through printing, stacking, hot pressing, stretching, impregnation, curing, slicing and other processing processes. It is widely used in the aerospace, military, radar antenna, transportation, and construction sectors to manufacture lightweight sandwich panels.
BEECORE aramid paper honeycomb core is available based on below conditions:
Cell Size: 3.2mm, 4.8mm, 6.4mm, 9.6mm;
Density: 29-144 kg/m3;
Minimum Core Thickness: 1mm;
Dimension: 1300*2600mm, it can be cut into the dimension you need.
2. Specifications:
| Specifications |
Cell size (mm/inch) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
|
| Commercial Grade Aramid Honeycomb Core | ||||||
| BHC1313-3.2-48 | 3.2 | 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 | |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 | |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 | |
| BHC1313-4.8-32 | 4.8 | 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 | |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 | |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 | |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 | |
| BHC1313-6.4-24 | 6.4 | 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 | |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 | |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 | |
| BHC1313-9.5-24 | 9.5 | 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 | |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 | |
| Aerospace Grade Aramid Honeycomb Core | ||||||
| BHC1313A-3.2-48 | 3.2 | 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 | |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 | |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 | |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 | |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 | |
| BHC1313A-4.8-32 | 4.8 | 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 | |
| BHC1313A-6.4-48 | 6.4 | 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 | 3/8 | 48 | 9.7 | 1.25 | 0.76 |
3. Aramid honeycomb core has several advantages:
• Super light and high strength anti-fatigue
• Outstanding corrosion resistance and flame resistance
• Excellent environment adaptability and electric insulating
• Good dielectric properties and high stability
4. Applications:
• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on
5. Aramid honeycomb core of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Fatory show
8. Company certification
9. FAQ
Q1. What is aramid honeycomb core usd for?
A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.
Q2. What are the advantages of aramid honeycomb core?
A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.
Q3. What is the packaging method of aramid honeycomb core?
A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
10. Why choose us?
