Product Details:
|
| Product Name: | SS 304 Stainless Steel Honeycomb Panels | Size: | 1000*2000mm Or Customizable |
|---|---|---|---|
| Side Length: | 5, 6, 7, 8, 10，11mm Or Customizable | Top Skin: | 0.8, 1.0, 1.2mm Or Customizable |
| Top And Bottom Panel: | Stainless Steel, Or Customizable | Surface Treatment: | Mirrors, Brushed |
| Core Material: | Aluminum Honeycomb Core | Foil Thickness: | 0.06, 0.08, 0.1mm |
| Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 15mm Or Customizable | Advantage: | Fireproof |
| High Light: | SS 316 Honeycomb Panels,316 Stainless Steel Honeycomb Panels,Brushed Finish Honeycomb Panels |
||

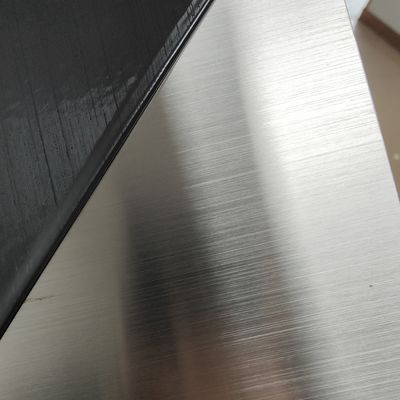

SS 316 Stainless Steel Honeycomb Panels For Elevators With Mirror Or Brushed Finish
1. Descriptions:
The upper and lower surfaces of stainless steel honeycomb panels are 304 or 316 stainless steel panels, and the core material is aluminum honeycomb panels, which are bonded by specially developed adhesives.
Stainless steel honeycomb panels are widely used in the decoration of elevators, automobiles, yachts, and interior and exterior walls of buildings. It has excellent characteristics of high strength and corrosion resistance.
2. Specifications:
| Stainless steel honeycomb panels | |
| Panel total thickness | 3-600mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | Mirrors, Brushed |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Elevators, cars, yachts, exterior and interior wall of building. etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Aluminum honeycomb panels has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
6. Aluminum honeycomb panels of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is staliness steel aluminum honeycomb panels usd for?
A: The stainless steel honeycomb panels have been widely used in decorsting of elevators, cars, yachts, exterior and interior wall of building.
Q2. What are the advantages of stainless steel aluminum honeycombs panel?
A: Aluminum honeycomb panels has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of stainless steel aluminum honeycomb panels?
A: Aluminum honeycomb panels of samples are packed in cardboard and bulk orders are packed in plywood cases.
