Product Details:
|
| Product Name: | HPL Honeycomb Panel | Honeycomb Side Length: | 15mm Or Customizable |
|---|---|---|---|
| Foil Thickness: | 0.08mm | Size: | 1550*2450mm Or Customizable |
| Skins Of High Pressure Laminate: | HPL | HPL Panel Thick: | 0.8mm Or Customizable |
| Core Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 28mm Or Customizable | Advantage: | Sound Insulation |
| Applications: | Shopping Malls | MOQ: | 200pcs |
| High Light: | HPL Honeycomb Panel Fireproof,HPL Honeycomb Panel Flame Retardant,Toilet Partition HPL Honeycomb Panel |
||

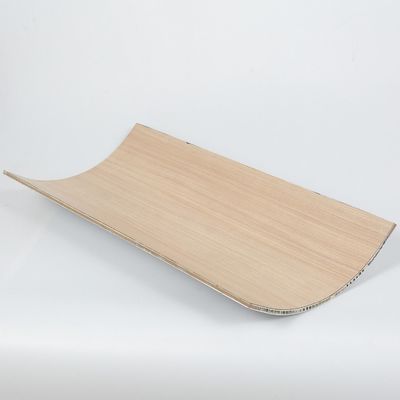

Fireproof And Flame Retardant HPL Honeycomb Panel For Toilet Partition
1. Descriptions:
HPL honeycomb panels are mainly used in partition walls, interior decoration, furniture, ceilings, rail transit partition walls, toilet partition walls, ship partition walls, furniture, shopping malls, hotel clubs, high-end office buildings and floors. HPL honeycomb panel has the characteristics of sound insulation and noise reduction, fire retardant, light weight and high strength, which provides a good working environment for high-end offices, shopping malls, hotels and other places.
HPL honeycomb panel is a kind of sandwich panel whose core material is aluminum honeycomb core bonded with high pressure laminated surface material. The outer layer of the laminate can have a variety of finishes and colors, and we can accept a variety of custom specifications.
2. Specifications:
| HPL honeycomb panel | |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.5 mm to 4 mm | |
| - Other thickness on request | |
| - Color on request | |
| ALU | 30303 Aluminum Honeycomb Core |
| Diameter (hexagonal cells): Ø 6, Ø 10, Ø 19 | |
| Foil Thickness: from 40 to 80 microns | |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.7 mm to 4 mm | |
| - Other thickness on request | |
| - Color on request | |
| Total Panel thickness | Regular: 10mm, 15mm, 18mm, 20mm, 25mm |
| -Other thickness on request | |
| Dimension | Regular: 1220*2440mm, 1500mm*3000mm |
| -Other dimension on request | |
| Specification of honeycomb core | |||||
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
|
Supply form |
Unexpanded(block, strip) or expanded(slice); | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. HPL honeycomb panel has several advantages:
• Fireproof
• Resistant to strong acid, base and chemical corrosion, resistant to water, moisture and mold
• Resistant to abrasion, scratches, and impact
• Easy to clean, anti-ultraviolet rays
• Resistant to fire, heat, and cigarette burns
• Environmentally friendly, no toxic, anti-static, no radiation
• Extremely durable and not easy to deform
• Various surface processing and colors
4. Applications:
• Shipyard & Shipbuildings (Partitions and doors)
• Truck and Caravan body
• Airline industry
• Train and high speed subway
• Material for luxury ship and vehicle
• Prefabricated houses
• Interior decoration, ceiling and walls
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for HPL honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. HPL honeycomb panel of more pictures:
7. Company profile
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
8. Factory show
9. Exhibition
10. FAQ
Q1. What is HPL honeycomb panel usd for?
A: HPL honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of HPL honeycomb panel?
A: HPL honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of HPL honeycomb panel?
A: HPL honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
