Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration

I'm Online Chat Now

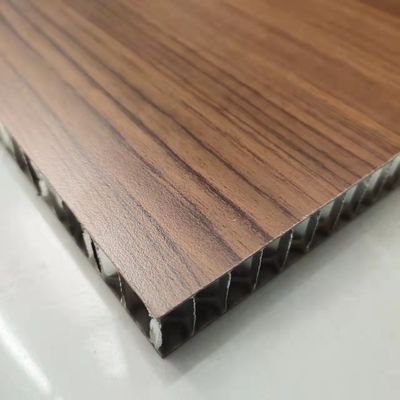

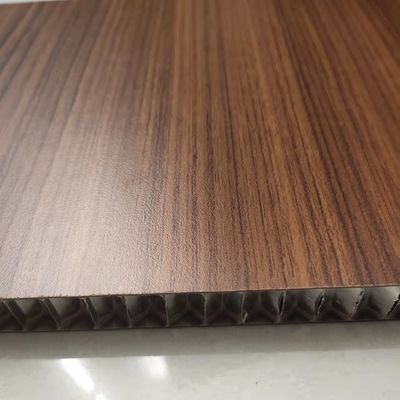

Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration

Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration
Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration

Large Image :  Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: NO
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: Around 15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 2000 sq meter per day

Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration

Description
Product Name: HPL Honeycomb Panel Honeycomb Side Length: 5, 6mm Or Customizable
Foil Thickness: 0.06, 0.07mm Size: 1200*1300mm Or Customizable
Skins Of High Pressure Laminate: HPL Aluminum Panel Thick: 0.8, 1.0mm Or Customizable
Core Materials: Al3003 And Al5052 Color: Customizable
Thickness: 20mm Or Customizable Advantage: Fireproof
Applications: Interior Decoration MOQ: 200pcs
High Light:

HPL Honeycomb Board 1200x1300mm

,

Wood Grain HPL Honeycomb Board

,

HPL aluminum honeycomb sheet

Wood Grain Colors HPL Honeycomb Board Is Used For Decoration

1. Descriptions:



HPL board is called thermosetting resin impregnated paper high-pressure decorative laminated board. It has rich colors and a wide variety. It is an outdoor decorative board made by special technology. The structure of HPL honeycomb board is HPL + aluminum honeycomb core + HPL board. HPL honeycomb board has high mechanical properties and good fire resistance. It is widely used in ship, rail transit partition and toilet partition.



2. Specifications:



HPL honeycomb panel
HPL Skins of High Pressure Laminate
Thickness: from 0.5 mm to 4 mm
- Other thickness on request
- Color on request
ALU 30303 Aluminum Honeycomb Core
Diameter (hexagonal cells): Ø 6, Ø 10, Ø 19
Foil Thickness: from 40 to 80 microns
HPL Skins of High Pressure Laminate
Thickness: from 0.7 mm to 4 mm
- Other thickness on request
- Color on request
Total Panel thickness Regular: 10mm, 15mm, 18mm, 20mm, 25mm
-Other thickness on request
Dimension Regular: 1220*2440mm, 1500mm*3000mm
-Other dimension on request



Specification of honeycomb core
Side length(mm) 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50
Foil thickness(mm) 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2
Alloy Al3003

Supply form

Unexpanded(block, strip) or expanded(slice);
Technical Data Sheet



Specification

Side length

(mm)

Density

(kg/m³)


Compression

strength (MPa)


L-Shear

strength (MPa)


W-Shear

strength (MPa)


BHC3003-5-0.03 5 27 0.53 0.44 0.24
BHC3003-5-0.04 5 31 0.66 0.53 0.3
BHC3003-4-0.03 4 33 0.73 0.58 0.33
BHC3003-4-0.04 4 39 0.98 0.75 0.43
BHC3003-5-0.05 5 41 1.07 0.8 0.47
BHC3003-3-0.03 3 44 1.18 0.89 0.52
BHC3003-5-0.06 5 49 1.43 1.03 0.60
BHC3003-3-0.04 3 52 1.6 1.15 0.67
BHC3003-4-0.05 4 53 1.65 1.18 0.69
BHC3003-4-0.06 4 61 2.07 1.48 0.86
BHC3003-5-0.08 5 67 2.45 1.74 1.02
BHC3003-3-0.05 3 68 2.50 1.78 1.04

BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series



3. HPL honeycomb panel has several advantages:



Fireproof

Resistant to strong acid, base and chemical corrosion, resistant to water, moisture and mold

Resistant to abrasion, scratches, and impact

Easy to clean, anti-ultraviolet rays

Resistant to fire, heat, and cigarette burns

Environmentally friendly, no toxic, anti-static, no radiation

Extremely durable and not easy to deform

Various surface processing and colors



4. Applications:



Shipyard & Shipbuildings (Partitions and doors)

Truck and Caravan body

Airline industry

Train and high speed subway

Material for luxury ship and vehicle

Prefabricated houses

Interior decoration, ceiling and walls



Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 0



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for HPL honeycomb panel of quality control of parts, processing, testing, packaging, etc.



6. HPL honeycomb panel of more pictures:



Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 1

Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 2



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History


1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 3



9. Factory show



Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 4



Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 5



Wood Grain HPL Honeycomb Board 1200x1300mm For Decoration 6



10. FAQ



Q1. What is HPL honeycomb panel usd for?

A: HPL honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.



Q2. What are the advantages of HPL honeycomb panel?

A: HPL honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.



Q3. What is the packaging method of HPL honeycomb panel?

A: HPL honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
