Product Details:
|
| Product Name: | HPL Honeycomb Panel | Honeycomb Side Length: | 6, 7, 8mm Or Customizable |
|---|---|---|---|
| Foil Thickness: | 0.06, 0.08, 0.1mm | Size: | 1200*2400mm Or Customizable |
| Skins Of High Pressure Laminate: | HPL | Aluminum Panel Thick: | 0.7, 0.8 Or Customizable |
| Core Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 10-80mm Or Customizable | Advantage: | Fireproof |
| Applications: | Railway Sector, Partitions | MOQ: | 200pcs |
| High Light: | Customizable HPL Honeycomb Panel,HPL Honeycomb Sandwich Panel,HPL Honeycomb Panel For Furniture |
||
High Pressure Layer HPL Honeycomb Sandwich Panel For Furniture
1. Descriptions:
HPL honeycomb panel is a sandwich panel whose core material is an aluminum honeycomb core bonded with a high pressure laminate face material. The outer layers of laminate can come in a variety of finishes and colors.
HPL (High Pressure Laminate) honeycomb panel is a sandwich panel formed by bonding a high pressure laminate facestock and an internal aluminium honeycomb core.
HPL honeycomb panels are widely used in partition walls, interior decoration, furniture, ceilings, rail transit partition walls, toilet partition walls, ship partition walls, furniture, shopping malls, hotel clubs, high-end office buildings and floors. HPL honeycomb panel has the characteristics of sound insulation and noise reduction, fire retardant, light weight and high strength, providing a good working environment for high-end offices, shopping malls, hotels and other places.
2. Specifications:
| HPL honeycomb panel | |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.5 mm to 4 mm | |
| - Other thickness on request | |
| - Color on request | |
| ALU | 30303 Aluminum Honeycomb Core |
| Diameter (hexagonal cells): Ø 6, Ø 10, Ø 19 | |
| Foil Thickness: from 40 to 80 microns | |
| HPL | Skins of High Pressure Laminate |
| Thickness: from 0.7 mm to 4 mm | |
| - Other thickness on request | |
| - Color on request | |
| Total Panel thickness | Regular: 10mm, 15mm, 18mm, 20mm, 25mm |
| -Other thickness on request | |
| Dimension | Regular: 1220*2440mm, 1500mm*3000mm |
| -Other dimension on request | |
| Specification of honeycomb core | |||||
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
|
Supply form |
Unexpanded(block, strip) or expanded(slice); | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. HPL honeycomb panel has several advantages:
• Fireproof
• Resistant to strong acid, base and chemical corrosion, resistant to water, moisture and mold
• Resistant to abrasion, scratches, and impact
• Easy to clean, anti-ultraviolet rays
• Resistant to fire, heat, and cigarette burns
• Environmentally friendly, no toxic, anti-static, no radiation
• Extremely durable and not easy to deform
• Various surface processing and colors
4. Applications:
• Shipyard & Shipbuildings (Partitions and doors)
• Truck and Caravan body
• Airline industry
• Train and high speed subway
• Material for luxury ship and vehicle
• Prefabricated houses
• Interior decoration, ceiling and walls
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for HPL honeycomb panel of quality control of parts, processing, testing, packaging, etc.

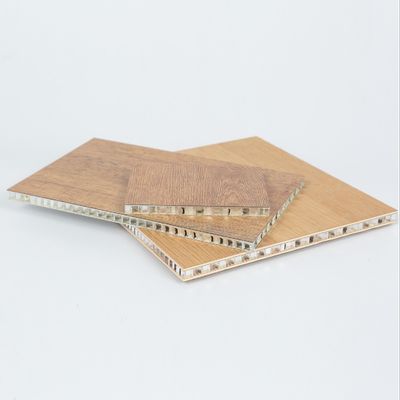

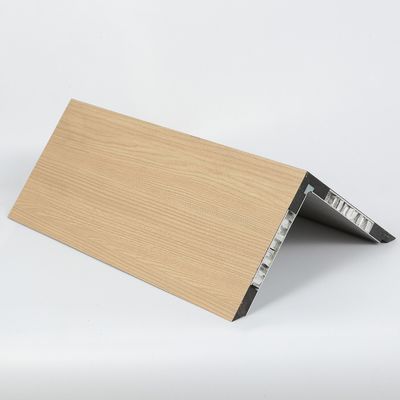

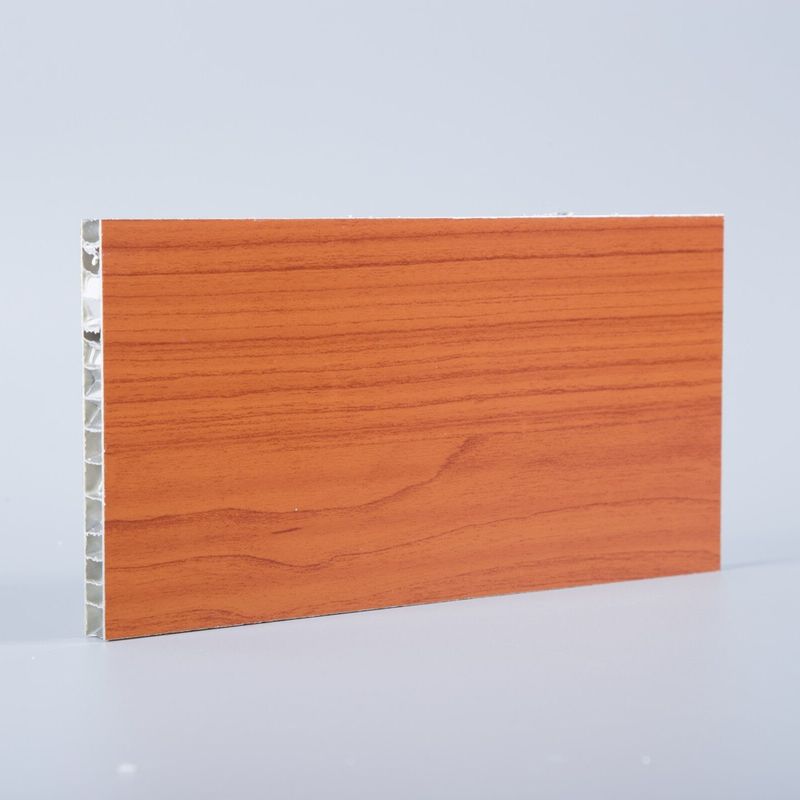

6. HPL honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is HPL honeycomb panel usd for?
A: HPL honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of HPL honeycomb panel?
A: HPL honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of HPL honeycomb panel?
A: HPL honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
