Product Details:
|
| Product Name: | Aluminum Honeycomb Panel | Size: | 1000*2200mm Or Customizable |
|---|---|---|---|
| Side Length: | 4, 5, 6, 7, 8，10mm Or Customizable | Aluminum Panel Thick: | 0.8，0.7, 0.5, Mm Or Customizable |
| Top And Bottom Panel: | Aluminum Panel Or Customizable | Surface Treatment: | PE Coating |
| Core Material: | Aluminum Honeycomb Core | Foil Thickness: | 0.2， 0.1，0.08, 0.07, 0.06, 0.05mm |
| Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 12, 10, 9, 8, 5mm Or Customizable | Advantage: | Light Weight, High Strength |
| High Light: | PE Coated Aluminum Honeycomb Panels,Al5052 Honeycomb Ceiling Panels,2440mm Length Honeycomb Ceiling Panels |
||

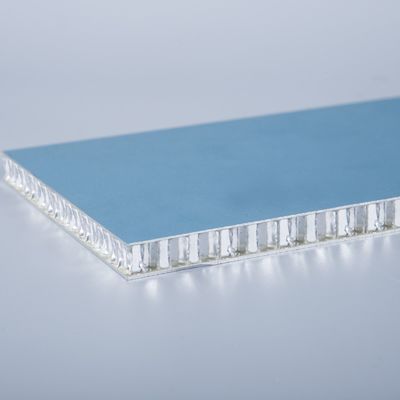

PE Coated Aluminum Honeycomb Ceiling Panels Various Colors Can Be Customized
1. Descriptions:
PE coated aluminum honeycomb panel has the characteristics of light weight, good strength, super flatness, sound insulation and heat insulation.
PE coated aluminum honeycomb panel is mainly used indoors, mostly for wallboard and ceiling. Aluminum honeycomb panel can be subject to any surface treatment and any color. PE coated aluminum honeycomb panel has rich surface colors, strong decoration and beautiful appearance. Its structure is aluminum plate + aluminum honeycomb core + aluminum plate, which is bonded by epoxy adhesive or polyester adhesive.
2. Specifications:
| PE aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. PE aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. PE aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is PE aluminum honeycomb panel usd for?
A: PE aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of PE aluminum honeycomb panel?
A: PE aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of PE aluminum honeycomb panel?
A: PE aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
