Product Details:
|
| Product Name: | Expanded Machine | Type: | Manual |
|---|---|---|---|
| Dimension: | 5000*2800*1500mm | Cell Size: | Can Be Customized |
| Max Expand Speed: | 0-10m/min | Max Unexpanded Width: | 2200mm |
| Max Expanded Width: | 1650mm | Expanded Thickness: | 1-80mm |
| Voltage: | 380/50HZ | Weight: | 2300-2500kg |
| High Light: | Manual Honeycomb Equipment,honeycomb expander machine,10m/min honeycomb expander machine |
||
Manual Aluminum Honeycomb Core Expanded Machine Honeycomb Equipment
1. Descriptions:
• The frame is made of Q235 steel integrally welded or bolted, which is firm and reliable, and is stressed after welding to ensure the dimensional
accuracy of the frame. The remaining parts are finished by machining center.
• The sliding guideway assembly adopts Taiwan HIWIN and runs smoothly.
• The device adopts caliper type stretching head, which can smoothly stretch for high density small cell honeycomb.
• The stretching speed is adjustable.
• The stretch length can be set.
2. Specifications
| Expanding machine | |
| Expanding system | Manual |
| Max unexpanded width | 2200 mm |
| Max expanded width | 1650 mm |
| Max expanded length | 4000 after rebound |
| Expanded thickness | 1-30 mm |
| Max expand speed | 0~10 m/min |
| Total power | 1.5 KW |
| Frequency Inverter | 1.5 KW |
| Dimension | 5000*2800*1500 mm |
| Weight | 2500 kg |
| Apply side length | ≤4 mm |
| Voltage | 380/50 HZ |
| Motor(from TW) | As request |
| Driving | Pull rod |
3. Honeycomb equipment has several advantages:
• High efficiency
• Low cost
• The stretching speed is adjustable.
• The stretch length can be set.
4. Applications:
• Making aluminum honeycomb core
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for expanding machine honeycomb equipment of quality control of parts, processing, testing, packaging, etc.

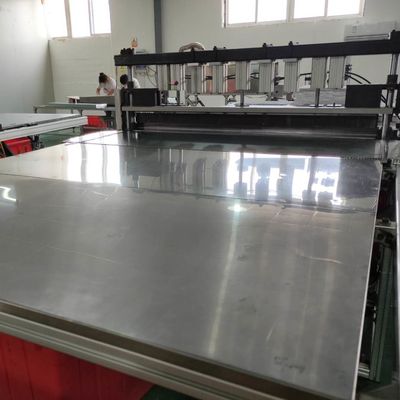

6. Honeycomb equipment expanding machine of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Production picture
10. FAQ
Q1. What is expanding machine honeycomb equipment usd for?
A: The expanding machine honeycomb equipment has been widely used in aluminum honeycomb core.
Q2. What are the advantages of honeycomb equipment?
A:The expanding machine is high efficiency, low cost, high degree of automation, high precision and less material loss.
Q3. What is the packaging method of honeycomb equipment?
A: Packed in plywood cases with wrapping film.
