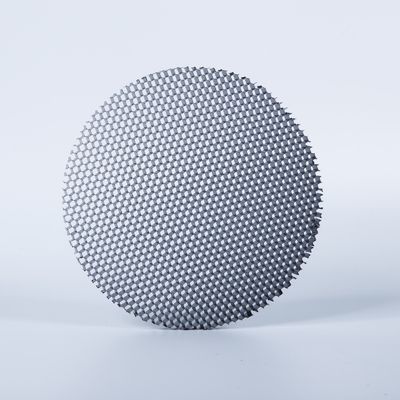

Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare

I'm Online Chat Now

Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare

Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare
Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare

Large Image :  Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare

Product Details:
Place of Origin: Suzhuo, Jiangsu Province, China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare

Description
Product Name: Aluminum Honeycomb Louver Color: Black
Side Length: 2, 2.5mm Or Customizable Size: φ150 Or Customizable
Cell Size: 3.50mm Or Customizable Materials: 3003
Thickness: 3mm Or Customizable Foil Thickness: 0.04, 0.05mm
Advantage: Anti Glare Applications: Lighting Industry Or Other
High Light:

3mm Honeycomb Louver

,

ISO14001 Honeycomb Louver

,

3mm honeycomb grid

Ultra Thin 3mm Thick Aluminum Honeycomb Core Grid Louver



1. Descriptions:



The main component of aluminum honeycomb core grid is microporous aluminum honeycomb core. Aluminum honeycomb grid has hexagonal honeycomb core grid, which has the advantages of good mechanical properties and flat surface. It is mainly used for all kinds of intelligent traffic lights, led filling lights, film and television lights and photography accessories, which is conducive to anti glare and soft lighting, and make the beam more uniform.



2. Specifications:



Aluminum honeycomb grid (lovuer)
Specifications Side length (mm) Foil Thickness (mm) Density (kg/m³)
BHC3003-0.4-0.015L 0.4 0.015 137
BHC3003-0.5-0.015L 0.5 0.015 137
BHC3003-0.5-0.021L 0.021 190
BHC3003-0.6-0.015L 0.6 0.015 151
BHC3003-0.6-0.021L 0.021 158
BHC3003-0.8-0.021L 0.8 0.021 118
BHC3003-0.8-0.025L 0.025 144
BHC3003-0.8-0.03L 0.03 169
BHC3003-1-0.025L 1 0.025 115
BHC3003-1-0.03L 0.03 137
BHC3003-1-0.04L 0.04 183
BHC3003-1.5-0.03L 1.5 0.03 90
BHC3003-1.5-0.04L 0.04 122
BHC3003-1.5-0.05L 0.05 152
BHC3003-1.83-0.04L 1.83 0.04 99
BHC3003-1.83-0.05L 0.05 123
BHC3003-1.83-0.06L 0.06 148
BHC3003-2-0.04L 2 0.04 90
BHC3003-2-0.05L 0.05 113
BHC3003-2-0.06L 0.06 135
BHC3003-2.5-0.04L 2.5 0.04 74
BHC3003-2.5-0.05L 0.05 92
BHC3003-2.5-0.06L 0.06 110
BHC3003-3-0.04L 3 0.04 61
BHC3003-3-0.05L 0.05 76
BHC3003-3-0.06L 0.06 91
BHC3003-3-0.08L 0.08 122
BHC3003-3.5-0.04L 3.5 0.04 55
BHC3003-3.5-0.05L 0.05 68
BHC3003-3.5-0.06L 0.06 82
BHC3003-3.5-0.08L 0.08 110
BHC3003-4-0.04L 4 0.04 46
BHC3003-4-0.05L 0.05 57
BHC3003-4-0.06L 0.06 68
BHC3003-4-0.08L 0.08 92
BHC3003-5-0.05L 5 0.05 46
BHC3003-5-0.06L 0.06 54
BHC3003-5-0.08L 0.08 72
BHC3003-5-0.1L 0.1 91
Shape Round, square
Clour Black
Alloy Al3003 and Al5052
Supply form Unexpanded (block, strip) or expanded(slice)
Unperforated



3. Aluminum honeycomb grid (louver) has several advantages:



• Anti glare

• Light weight

• High strength

• Super flatness

• Fire retardant

• Sound insulation

• Environment protection



4. Applications:



• Pxygen generator equipments, Lighting industry, Film shooting, Traffic lights, Industry, Printing machine platform and so on.



Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 0



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for aluminum honeycomb grid (louver) of quality control of parts, processing, testing, packaging, etc.



6. Aluminum honeycomb grid (louver) of more pictures:



Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 1



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, aluminum honeycomb core, aluminum hooneycomb louver, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 2



9. Factory show



Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 3



Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 4



Ultra Thin 3mm Aluminum Honeycomb Louver Anti Glare 5



10. FAQ



Q1. What is aluminum honeycomb grid usd for?

A: Aluminum honeycomb grid which has excellent rigidity and is one of the best lighting materials. It has been widely used in the decoration of LED, lighting industry, film shooting, traffic lights, industry, furniture industry and so on.



Q2. What are the advantages of aluminum honeycomb grid?

A: Aluminum honeycomb grid has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution. When used in lamps, it is conducive to anti glare and make the light more uniform and soft.



Q3. What is the packaging method of aluminum honeycomb grid?

A: Aluminum honeycomb grid of samples are packed in cardboard and bulk orders are packed in plywood cases.
