Product Details:
|
| Product Name: | Aluminum Honeycomb Core Photocatalyst Filter | Side Length: | 1.0, 1.83, 2mm Or Customizable |
|---|---|---|---|
| Cell Size: | 1.04, 1.73, 3.2mm Or Customizable | Size: | 100*100, 200*200mm Or Customizable |
| Main Components: | TiO2 | Thickness: | 5, 10mm Or Customizable |
| Base Materials: | Al3003 | Color: | White |
| Applications: | Indoor | Foil Thickness: | 0.04, 0.05, 0.06mm |
| High Light: | ISO9001 Honeycomb Filter,Honeycomb Filter 100x100mm,200x200mm photocatalyst filter |
||

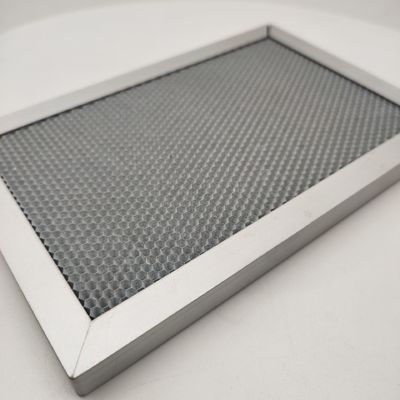

Honeycomb Filter Substrate Photocatalyst Size Can Be Customized
1. Descriptions:
Aluminum honeycomb core photocatalyst filter screen is mainly composed of photocatalyst, and its dimensions and specifications can be customized. Photocatalyst is the general name of a class of semiconductor materials with photocatalytic function represented by TiO2. There are many kinds of photocatalysts, and the corresponding light wave wavelengths of photocatalysts of different materials are also different. The photocatalyst filter screen of our company can not drop powder and remove peculiar smell efficiently.
2. Specifications:
| Aluminum honeycomb core photocatalyst filter | ||
| Specifications | Side length (mm) | Foil Thickness (mm) |
| BHC3003-0.8-0.021L | 0.8 | 0.021 |
| BHC3003-0.8-0.025L | 0.025 | |
| BHC3003-0.8-0.03L | 0.03 | |
| BHC3003-1-0.025L | 1 | 0.025 |
| BHC3003-1-0.03L | 0.03 | |
| BHC3003-1-0.04L | 0.04 | |
| BHC3003-1.5-0.03L | 1.5 | 0.03 |
| BHC3003-1.5-0.04L | 0.04 | |
| BHC3003-1.5-0.05L | 0.05 | |
| BHC3003-1.83-0.04L | 1.83 | 0.04 |
| BHC3003-1.83-0.05L | 0.05 | |
| BHC3003-1.83-0.06L | 0.06 | |
| BHC3003-2-0.04L | 2 | 0.04 |
| BHC3003-2-0.05L | 0.05 | |
| BHC3003-2-0.06L | 0.06 | |
| BHC3003-2.5-0.04L | 2.5 | 0.04 |
| BHC3003-2.5-0.05L | 0.05 | |
| BHC3003-2.5-0.06L | 0.06 | |
| BHC3003-3-0.04L | 3 | 0.04 |
| BHC3003-3-0.05L | 0.05 | |
| BHC3003-3-0.06L | 0.06 | |
| BHC3003-3-0.08L | 0.08 | |
| Size | 100*100, 300*300, 500*500, 1000*1000mm or customizable | |
| Surface spraying | Photocatalyst, activated carbon, activated manganese | |
| Frame | Aluminum, Sponge, Paper frame | |
| Materials | Al3003 or other materials | |
| Supply form | Expanded | |
| Unperforated | ||
3. Aluminum Honeycomb Core Photocatalyst Filter has several advantages:
• High efficiency decomposition
• No dust
• No odor
• Custom size
• Custom frame
• Coating thickness
• Environment protection
4. Applications:
• Fresh air system, air purifier, air conditioner
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.
6. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is Aluminum Honeycomb Core Photocatalyst Filter usd for?
A: The aluminum honeycomb core photocatalyst filter is used for Air conditioning, fresh air system, filter.
Q2. What are the advantages of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.
Q3. What is the packaging method of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
