2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body

I'm Online Chat Now

2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body

2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body
2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body

Large Image :  2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC1313
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 100pcs per day
Payment Terms: L/C, T/T

2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body

Description
Product Name: Aramid Honeycomb Core Size: 2400*1200mm
Density: 48, 96kg/m3 Thickness: 10, 20mm Or Costomizable
Cell Size: 9.6, 4.8mm Or Costomizable Advantages: High Strength
Materials: Aramid Fiber Paper Color: Brown
Package: Plywood Case Applications: Rail Transit, Sport Products Or Other
High Light:

2400x1200mm Aramid Honeycomb Core

,

Aramid Honeycomb Core Materials

,

nomex honeycomb core

Aramid Honeycomb Core For Racing Car Body With High Strength



1. Descriptions:



Aramid honeycomb core is widely used in aerospace, but it is also applicable to other industries. For example, it is widely used in racing car body materials and super sports car chassis because of its light and high-strength characteristics. It is used as radar, antenna and other housing materials because of its wave transmission and high-strength characteristics. It is also used by some high-end acoustics because of its sound isolation and shock absorption characteristics.



2. Specifications:



Specifications

Cell size

(mm/inch)

Density

(kg/m³)

Compression

strength

(MPa)

L-Shear

strength

(MPa)

W-Shear

strength

(MPa)

Commercial Grade Aramid Honeycomb Core
BHC1313-3.2-48 3.2 1/8 48 1.9 1.16 0.62
BHC1313-3.2-64 3.2 64 3.1 1.48 0.82
BHC1313-3.2-80 3.2 80 4.7 1.95 1.05
BHC1313-3.2-96 3.2 96 6.6 2.45 1.42
BHC1313-4.8-32 4.8 3/16 32 0.9 0.58 0.36
BHC1313-4.8-48 4.8 48 2.6 0.98 0.56
BHC1313-4.8-64 4.8 64 3.4 1.7 0.92
BHC1313-4.8-80 4.8 80 6 1.95 1.1
BHC1313-4.8-96 4.8 96 7.3 2.26 1.32
BHC1313-6.4-24 6.4 1/4 24 0.54 0.34 0.18
BHC1313-6.4-32 6.4 32 0.8 0.54 0.3
BHC1313-6.4-48 6.4 48 2.05 1 0.56
BHC1313-6.4-64 6.4 64 3.4 1.54 0.79
BHC1313-9.5-24 9.5 3/8 24 0.52 0.32 0.16
BHC1313-9.5-32 9.5 32 0.68 0.56 0.29
BHC1313-9.5-48 9.5 48 9.6 1.15 0.66
Aerospace Grade Aramid Honeycomb Core
BHC1313A-3.2-48 3.2 1/8 48 2 1.26 0.72
BHC1313A-3.2-64 3.2 64 3.2 1.58 0.92
BHC1313A-3.2-80 3.2 80 4.8 2.05 1.15
BHC1313A-3.2-96 3.2 96 6.7 2.55 1.52
BHC1313A-3.2-128 3.2 128 11.4 3.05 1.88
BHC1313A-3.2-144 3.2 144 13.3 3.15 2
BHC1313A-4.8-32 4.8 3/16 32 1 0.68 0.46
BHC1313A-4.8-48 4.8 48 2.7 1.08 0.66
BHC1313A-6.4-48 6.4 1/4 48 2.15 1.1 0.66
BHC1313A-9.5-48 9.5 3/8 48 9.7 1.25 0.76



3. Aramid honeycomb core has several advantages:



• Super light and high strength anti-fatigue

• Outstanding corrosion resistance and flame resistance

• Excellent environment adaptability and electric insulating

• Good dielectric properties and high stability



4. Applications:



• Racing car body, High-end audio speaker, Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on



2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 0



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for Aramid honeycomb core of quality control of parts, processing, testing, packaging, etc.

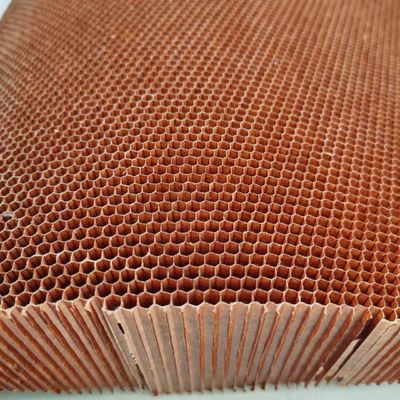

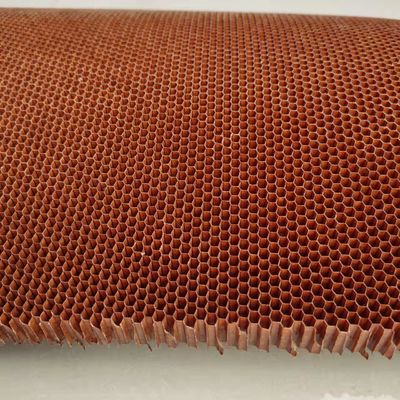

6. Para Aramid honeycomb core of more pictures:



2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 1



2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 2



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History


1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 3



9. Factory show



2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 4



2400x1200mm Aramid Honeycomb Core Materials For Racing Car Body 5



10. FAQ



Q1. What is aramid honeycomb core usd for?

A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.



Q2. What are the advantages of aramid honeycomb core?

A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.



Q3. What is the packaging method of aramid honeycomb core?

A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
