Product Details:
|
| Product Name: | Aluminum Honeycomb Core Photocatalyst Filter | Main Components: | TiO2 |
|---|---|---|---|
| Side Length: | 2mm Or Customizable | Cell Size: | 3.5mm Or Customizable |
| Size: | 200*100, 300*200mm Or Customizable | Frame: | Paper Frame |
| Thickness: | 10mm Or Customizable | Color: | White |
| Applications: | Indoor | Foil Thickness: | 0.04, 0.05mm |
| High Light: | 3.5mm Paper frame photocatalyst filter,Photocatalyst honey comb filter,honey comb filter 3.5mm |
||

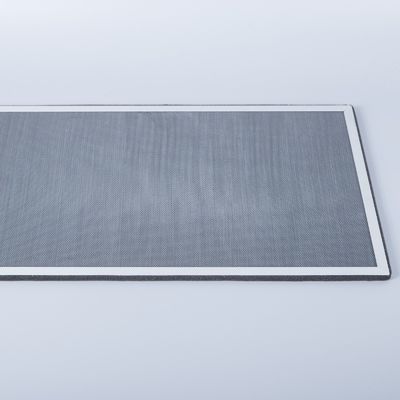

With Paper Frame Aluminum Honeycomb Core Matrials Photocatalyst Filter
1. Descriptions:
Photocatalyst series products are one of the company's main core advantage products; Products with beautiful appearance, good structural strength and waste gas treatment performance are preferred. The product selects high-quality nano-sized titanium dioxide as the basic material, and realizes the high praise of the product performance industry through the modulation of our unique formula.
Through the strict control and requirements on the formula and carrier, the Photocatalyst series products realize the high-efficiency photocatalysis, greatly improve the treatment efficiency of formaldehyde and TVOCs gas, and may be suitable for the use of products under various working conditions.
2. Specifications:
| Aluminum honeycomb core photocatalyst filter | ||
| Specifications | Side length (mm) | Foil Thickness (mm) |
| BHC3003-0.8-0.021L | 0.8 | 0.021 |
| BHC3003-0.8-0.025L | 0.025 | |
| BHC3003-0.8-0.03L | 0.03 | |
| BHC3003-1-0.025L | 1 | 0.025 |
| BHC3003-1-0.03L | 0.03 | |
| BHC3003-1-0.04L | 0.04 | |
| BHC3003-1.5-0.03L | 1.5 | 0.03 |
| BHC3003-1.5-0.04L | 0.04 | |
| BHC3003-1.5-0.05L | 0.05 | |
| BHC3003-1.83-0.04L | 1.83 | 0.04 |
| BHC3003-1.83-0.05L | 0.05 | |
| BHC3003-1.83-0.06L | 0.06 | |
| BHC3003-2-0.04L | 2 | 0.04 |
| BHC3003-2-0.05L | 0.05 | |
| BHC3003-2-0.06L | 0.06 | |
| BHC3003-2.5-0.04L | 2.5 | 0.04 |
| BHC3003-2.5-0.05L | 0.05 | |
| BHC3003-2.5-0.06L | 0.06 | |
| BHC3003-3-0.04L | 3 | 0.04 |
| BHC3003-3-0.05L | 0.05 | |
| BHC3003-3-0.06L | 0.06 | |
| BHC3003-3-0.08L | 0.08 | |
| Size | 100*100, 300*300, 500*500, 1000*1000mm or customizable | |
| Surface spraying | Photocatalyst, activated carbon, activated manganese | |
| Frame | Aluminum, Sponge, Paper frame | |
| Materials | Al3003 or other materials | |
| Supply form | Expanded | |
| Unperforated | ||
3. Aluminum Honeycomb Core Photocatalyst Filter has several advantages:
• High efficiency decomposition
• No dust
• No odor
• Custom size
• Custom frame
• Coating thickness
• Environment protection
4. Applications:
• Fresh air system, air purifier, air conditioner
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.
6. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is Aluminum Honeycomb Core Photocatalyst Filter usd for?
A: The aluminum honeycomb core photocatalyst filter is used for Air conditioning, fresh air system, filter.
Q2. What are the advantages of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.
Q3. What is the packaging method of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
