Product Description:

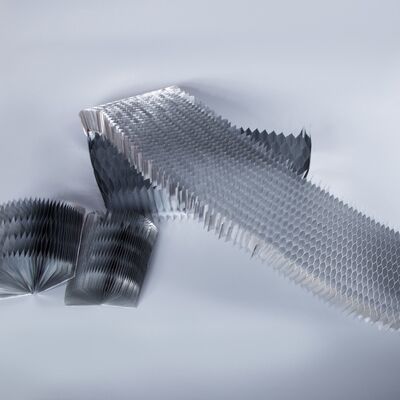

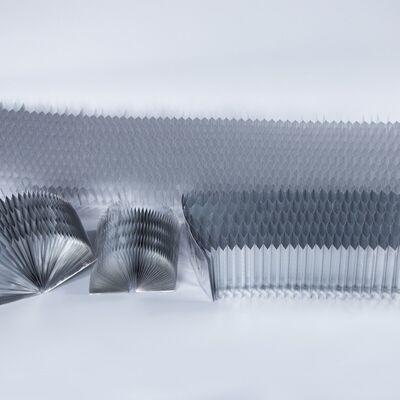

Aluminum Honeycomb Core is a kind of honeycomb materials, which is made of aluminum alloy as the substrate and formed by high temperature calendaring. It has good bending strength, and its cell wall thickness can be adjusted from 0.04mm to 0.2mm. Its cell size can be customized from 1.04mm to 50mm.
This honeycomb core has a standard size of 1220*2440mm, which can also be customized to meet special needs. This product has excellent structural characteristics and is widely used in aerospace, marine, transportation, and other fields.
Features:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Flatness
Technical Parameters:
| Aluminum Honeycomb Core |
| Specifications |
Side length (mm) |
Foil Thickness (mm) |
Density (kg/m³) |
| BHC3003-0.4-0.015L |
0.4 |
0.015 |
137 |
| BHC3003-0.5-0.015L |
0.5 |
0.015 |
137 |
| BHC3003-0.5-0.021L |
0.021 |
190 |
| BHC3003-0.6-0.015L |
0.6 |
0.015 |
151 |
| BHC3003-0.6-0.021L |
0.021 |
158 |
| BHC3003-0.8-0.021L |
0.8 |
0.021 |
118 |
| BHC3003-0.8-0.025L |
0.025 |
144 |
| BHC3003-0.8-0.03L |
0.03 |
169 |
| BHC3003-1-0.025L |
1 |
0.025 |
115 |
| BHC3003-1-0.03L |
0.03 |
137 |
| BHC3003-1-0.04L |
0.04 |
183 |
| BHC3003-1.5-0.03L |
1.5 |
0.03 |
90 |
| BHC3003-1.5-0.04L |
0.04 |
122 |
| BHC3003-1.5-0.05L |
0.05 |
152 |
| BHC3003-1.83-0.04L |
1.83 |
0.04 |
99 |
| BHC3003-1.83-0.05L |
0.05 |
123 |
| BHC3003-1.83-0.06L |
0.06 |
148 |
| BHC3003-2-0.04L |
2 |
0.04 |
90 |
| BHC3003-2-0.05L |
0.05 |
113 |
| BHC3003-2-0.06L |
0.06 |
135 |
| BHC3003-2.5-0.04L |
2.5 |
0.04 |
74 |
| BHC3003-2.5-0.05L |
0.05 |
92 |
| BHC3003-2.5-0.06L |
0.06 |
110 |
| BHC3003-3-0.04L |
3 |
0.04 |
61 |
| BHC3003-3-0.05L |
0.05 |
76 |
| BHC3003-3-0.06L |
0.06 |
91 |
| BHC3003-3-0.08L |
0.08 |
122 |
| BHC3003-3.5-0.04L |
3.5 |
0.04 |
55 |
| BHC3003-3.5-0.05L |
0.05 |
68 |
| BHC3003-3.5-0.06L |
0.06 |
82 |
| BHC3003-3.5-0.08L |
0.08 |
110 |
| BHC3003-4-0.04L |
4 |
0.04 |
46 |
| BHC3003-4-0.05L |
0.05 |
57 |
| BHC3003-4-0.06L |
0.06 |
68 |
| BHC3003-4-0.08L |
0.08 |
92 |
| BHC3003-5-0.05L |
5 |
0.05 |
46 |
| BHC3003-5-0.06L |
0.06 |
54 |
| BHC3003-5-0.08L |
0.08 |
72 |
| BHC3003-5-0.1L |
0.1 |
91 |
| Alloy |
Al3003 and Al5052 |
| Supply form |
Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
Applications:
BEECORE Aluminum Honeycomb Core – High Strength, Light Weight, Fireproof
The aluminum honeycomb core is very light weight, making it ideal for applications such as aerospace, automotive, marine, and construction. It is an excellent choice for applications where a combination of high strength and light weight are required, such as in aircraft construction and shipbuilding. It is also fireproof, making it suitable for use in fire-rated areas, such as in public buildings.
The aluminum honeycomb core is also environmentally friendly, as it is made from recyclable materials and can be reused multiple times. Its lightweight and strength also make it an ideal choice for renewable energy applications, such as wind turbine blades, solar panel frames, and electric vehicle frames.
BEECORE aluminum honeycomb core is the ideal choice for applications requiring high strength, light weight, and fireproof performance. Its versatile nature and recyclable materials make it an excellent choice for many different industries.
Support and Services:
Aluminum Honeycomb Core Technical Support and Service
At , we understand how important it is to have reliable and professional technical support and service for your Aluminum Honeycomb Core products. Our team of experts is here to help you with any questions or issues you may have.
We offer a variety of services and support options to help you get the most out of your Aluminum Honeycomb Core products. Our customer service team is available 24/7 to answer any questions you may have and provide the necessary technical support and service for your Aluminum Honeycomb Core products.
Packing and Shipping:
Aluminum Honeycomb Core Packaging and Shipping:
FAQ:
-
Q1. What is aluminum honeycomb core usd for?
A: The aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of aluminum honeycomb core?
A: Aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of aluminum honeycomb core?
A: Aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
-
