Ultra Small Side Length 0.6-2.5mm 3003 Micro-Porous Aluminum Honeycomb Core
1. Descriptions:
Aluminum honeycomb core sheet has high flatness, easy and fast installation, light weight, high strength, moisture resistance, fire resistance, shock resistance, sound insulation, and corrosion resistance. It can achieve large surface panels. Honeycomb core material helps with the insulation effect of space, with a variety of colors and surface treatments to choose from. Excellent customization processing ability meets customers' personalized needs. High quality materials and advanced processing technology ensure the durability of the product. Various installation systems are suitable for different schemes and are easy to install and maintain in daily life.
Micro-Porous Aluminum Honeycomb Core is good for high quality filters, mechanical industry electrical appliance, and as well as other fields.
2. Specifications:
| Micro-Porous Aluminum Honeycomb Core |
| Specifications |
Side length (mm) |
Foil Thickness (mm) |
Density (kg/m³) |
| BHC3003-0.4-0.015L |
0.4 |
0.015 |
137 |
| BHC3003-0.5-0.015L |
0.5 |
0.015 |
137 |
| BHC3003-0.5-0.021L |
0.021 |
190 |
| BHC3003-0.6-0.015L |
0.6 |
0.015 |
151 |
| BHC3003-0.6-0.021L |
0.021 |
158 |
| BHC3003-0.8-0.021L |
0.8 |
0.021 |
118 |
| BHC3003-0.8-0.025L |
0.025 |
144 |
| BHC3003-0.8-0.03L |
0.03 |
169 |
| BHC3003-1-0.025L |
1 |
0.025 |
115 |
| BHC3003-1-0.03L |
0.03 |
137 |
| BHC3003-1-0.04L |
0.04 |
183 |
| BHC3003-1.5-0.03L |
1.5 |
0.03 |
90 |
| BHC3003-1.5-0.04L |
0.04 |
122 |
| BHC3003-1.5-0.05L |
0.05 |
152 |
| BHC3003-1.83-0.04L |
1.83 |
0.04 |
99 |
| BHC3003-1.83-0.05L |
0.05 |
123 |
| BHC3003-1.83-0.06L |
0.06 |
148 |
| BHC3003-2-0.04L |
2 |
0.04 |
90 |
| BHC3003-2-0.05L |
0.05 |
113 |
| BHC3003-2-0.06L |
0.06 |
135 |
| BHC3003-2.5-0.04L |
2.5 |
0.04 |
74 |
| BHC3003-2.5-0.05L |
0.05 |
92 |
| BHC3003-2.5-0.06L |
0.06 |
110 |
| BHC3003-3-0.04L |
3 |
0.04 |
61 |
| BHC3003-3-0.05L |
0.05 |
76 |
| BHC3003-3-0.06L |
0.06 |
91 |
| BHC3003-3-0.08L |
0.08 |
122 |
| BHC3003-3.5-0.04L |
3.5 |
0.04 |
55 |
| BHC3003-3.5-0.05L |
0.05 |
68 |
| BHC3003-3.5-0.06L |
0.06 |
82 |
| BHC3003-3.5-0.08L |
0.08 |
110 |
| BHC3003-4-0.04L |
4 |
0.04 |
46 |
| BHC3003-4-0.05L |
0.05 |
57 |
| BHC3003-4-0.06L |
0.06 |
68 |
| BHC3003-4-0.08L |
0.08 |
92 |
| BHC3003-5-0.05L |
5 |
0.05 |
46 |
| BHC3003-5-0.06L |
0.06 |
54 |
| BHC3003-5-0.08L |
0.08 |
72 |
| BHC3003-5-0.1L |
0.1 |
91 |
| Alloy |
Al3003 and Al5052 |
| Supply form |
Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
5. Micro- Porous aluminium core has several advantages:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Flatness
4. Applications:
• Building materials industry
• Lighting industry
• Industry
• Printing machine platform and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for micro-porous aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.

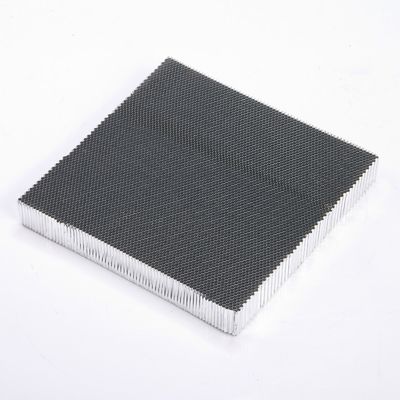

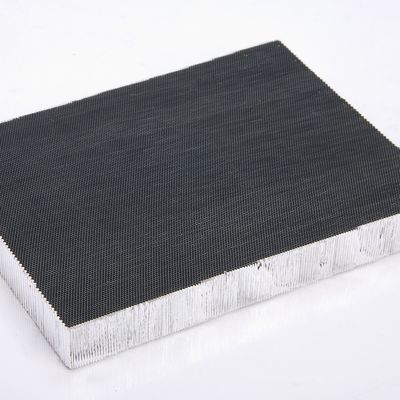

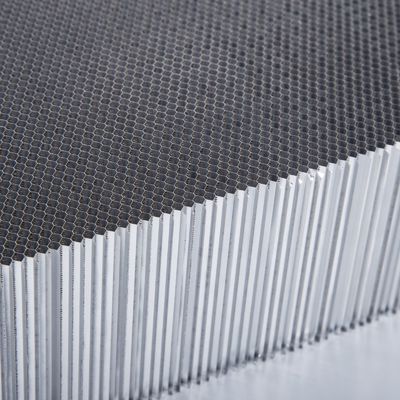

6. Micro-porous aluminum honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, it is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is micro-porous aluminum honeycomb core usd for?
A: The micro-porous aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
