3003 and 5052 Strip Shaped Aluminum Honeycomb Core For Easy Transportation
1. Descriptions:
There are three main delivery forms for aluminum honeycomb cores. One is to ship after stretching, the other is to ship in strips without stretching, and the other is to ship in whole honeycomb block. Generally, perforated aluminum honeycomb cores are shipped in strips. Customers can stretch them manually. This form is convenient for transportation and saves transportation cost.
Non perforated aluminum honeycomb cores are generally shipped in the form of stretching or pellets, Non perforated aluminum honeycomb core generally has a small pore diameter, so it is generally shipped after stretching.
2. Specifications:
| Aluminum Honeycomb Core |
| Specifications |
Side length (mm) |
Foil Thickness (mm) |
Density (kg/m³) |
| BHC3003-0.4-0.015L |
0.4 |
0.015 |
137 |
| BHC3003-0.5-0.015L |
0.5 |
0.015 |
137 |
| BHC3003-0.5-0.021L |
0.021 |
190 |
| BHC3003-0.6-0.015L |
0.6 |
0.015 |
151 |
| BHC3003-0.6-0.021L |
0.021 |
158 |
| BHC3003-0.8-0.021L |
0.8 |
0.021 |
118 |
| BHC3003-0.8-0.025L |
0.025 |
144 |
| BHC3003-0.8-0.03L |
0.03 |
169 |
| BHC3003-1-0.025L |
1 |
0.025 |
115 |
| BHC3003-1-0.03L |
0.03 |
137 |
| BHC3003-1-0.04L |
0.04 |
183 |
| BHC3003-1.5-0.03L |
1.5 |
0.03 |
90 |
| BHC3003-1.5-0.04L |
0.04 |
122 |
| BHC3003-1.5-0.05L |
0.05 |
152 |
| BHC3003-1.83-0.04L |
1.83 |
0.04 |
99 |
| BHC3003-1.83-0.05L |
0.05 |
123 |
| BHC3003-1.83-0.06L |
0.06 |
148 |
| BHC3003-2-0.04L |
2 |
0.04 |
90 |
| BHC3003-2-0.05L |
0.05 |
113 |
| BHC3003-2-0.06L |
0.06 |
135 |
| BHC3003-2.5-0.04L |
2.5 |
0.04 |
74 |
| BHC3003-2.5-0.05L |
0.05 |
92 |
| BHC3003-2.5-0.06L |
0.06 |
110 |
| BHC3003-3-0.04L |
3 |
0.04 |
61 |
| BHC3003-3-0.05L |
0.05 |
76 |
| BHC3003-3-0.06L |
0.06 |
91 |
| BHC3003-3-0.08L |
0.08 |
122 |
| BHC3003-3.5-0.04L |
3.5 |
0.04 |
55 |
| BHC3003-3.5-0.05L |
0.05 |
68 |
| BHC3003-3.5-0.06L |
0.06 |
82 |
| BHC3003-3.5-0.08L |
0.08 |
110 |
| BHC3003-4-0.04L |
4 |
0.04 |
46 |
| BHC3003-4-0.05L |
0.05 |
57 |
| BHC3003-4-0.06L |
0.06 |
68 |
| BHC3003-4-0.08L |
0.08 |
92 |
| BHC3003-5-0.05L |
5 |
0.05 |
46 |
| BHC3003-5-0.06L |
0.06 |
54 |
| BHC3003-5-0.08L |
0.08 |
72 |
| BHC3003-5-0.1L |
0.1 |
91 |
| Alloy |
Al3003 and Al5052 |
| Supply form |
Unexpanded (block, strip) or expanded(slice) |
| Unperforated |
3. Aluminium core has several advantages:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Flatness
4. Applications:
• Building materials industry
• Lighting industry
• Industry
• Printing machine platform and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for micro-porous aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.

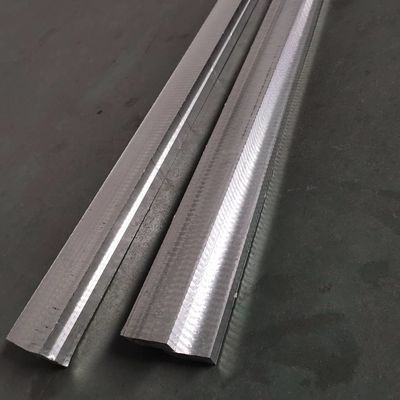

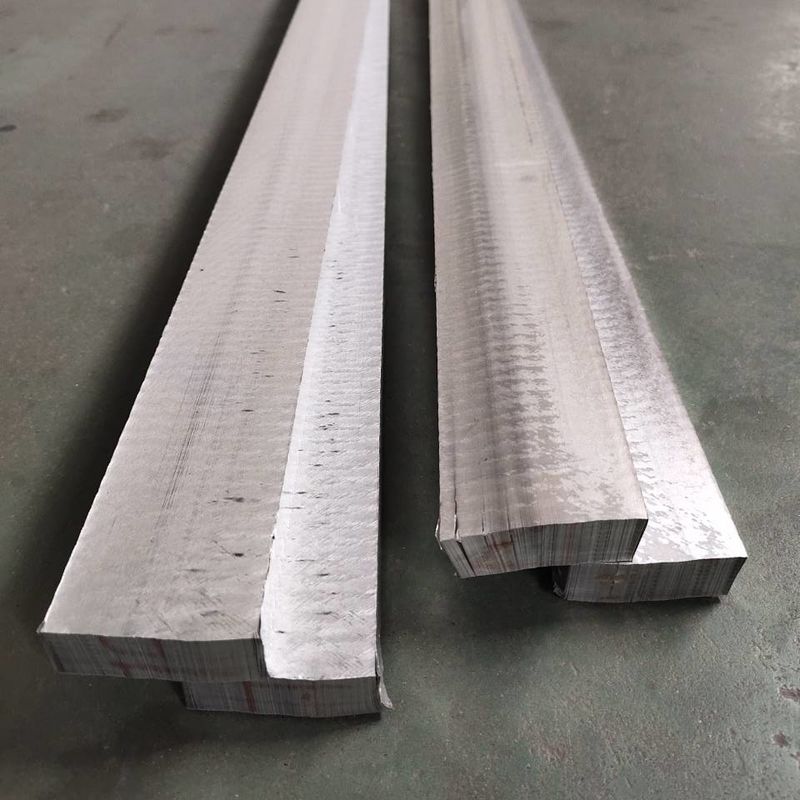

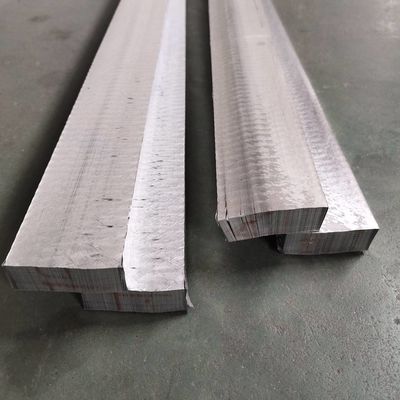

6. Aluminum honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. Factory show
9. FAQ
Q1. What is aluminum honeycomb core usd for?
A: The aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of aluminum honeycomb core?
A: Aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of aluminum honeycomb core?
A: Aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
