PP Core FRP Aluminum Honeycomb Panel For Truck Body

I'm Online Chat Now

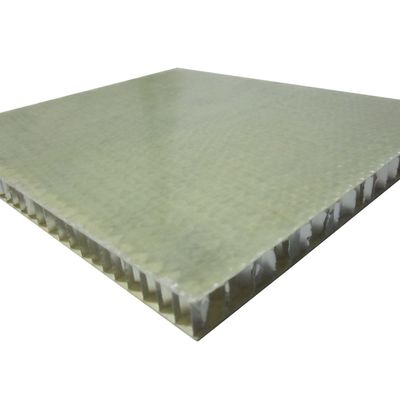

PP Core FRP Aluminum Honeycomb Panel For Truck Body

PP Core FRP Aluminum Honeycomb Panel For Truck Body
PP Core FRP Aluminum Honeycomb Panel For Truck Body
PP Core FRP Aluminum Honeycomb Panel For Truck Body PP Core FRP Aluminum Honeycomb Panel For Truck Body PP Core FRP Aluminum Honeycomb Panel For Truck Body PP Core FRP Aluminum Honeycomb Panel For Truck Body

Large Image :  PP Core FRP Aluminum Honeycomb Panel For Truck Body

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: NO
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: Around 15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 2000 sq meter per day

PP Core FRP Aluminum Honeycomb Panel For Truck Body

Description
Product Name: FRP Honeycomb Panel Size: 1200*2160mm Or Customizable
Top And Bottom Panel: FRP Foil Thickness: 0.1 Or Customized
Thickness: 32, 42mm Or Customizable Advantage: Good Impact Toughness
Core Material: PP Or Aluminum Color: White Or Customizable
Applications: Trailer MOQ: 200pcs
High Light:

PP Core FRP Honeycomb Panels

,

FRP Aluminum Honeycomb Panel

,

Truck Body Aluminum Honeycomb Panel

FRP aluminum honeycomb panel for truck body



1. Descriptions:

GRP/FRP composite board, the structure is FRP skin + core material + FRP skin.

FRP composite panel is a new type of high-tech, high-quality sheet, which will not be brittle at ultra-low temperature of 40 degrees, will not deform at high temperature below 100 degrees, and can prevent heat transfer.

FRP composite panels can replace color steel plates, aluminum plates, etc., and overcome the shortcomings of traditional products such as rust, corrosion, easy dent deformation, and inability to adapt to harsh environments.

FRP composite panel with gel coating, self-cleaning, anti-ultraviolet, anti-static, etc., is the most popular truck body and van panel in the world.



2. Specifications:

Fiberglass honeycomb panel
FRP Skins of High Pressure Laminate
Thickness: from 1.0 mm to 2 mm
- Other thickness on request
- Black color or customizable
HONEYCOMB CORE 3003 Aluminum Honeycomb Core or PP honeycomb core
Diameter (hexagonal cells): Ø 6, Ø 8, Ø 10
Foil Thickness: from 40 to 80 microns
FRP Skins of High Pressure Laminate
Thickness: from 1.0 mm to 2 mm
- Other thickness on request
- Black color or customizable
Total Panel thickness Regular: 5mm, 8mm, 10mm, 20mm
-Other thickness on request
Dimension Regular: 1220*2440mm
-Other dimension on request



Specific specification of honeycomb core
Side length(mm) 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50
Foil thickness(mm) 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2
Alloy Al3003
Supply form Unexpanded(block, strip) or expanded(slice);
Technical Data Sheet



Specification

Side length

(mm)

Density

(kg/m³)


Compression

strength (MPa)


L-Shear

strength (MPa)


W-Shear

strength (MPa)


BHC3003-5-0.03 5 27 0.53 0.44 0.24
BHC3003-5-0.04 5 31 0.66 0.53 0.3
BHC3003-4-0.03 4 33 0.73 0.58 0.33
BHC3003-4-0.04 4 39 0.98 0.75 0.43
BHC3003-5-0.05 5 41 1.07 0.8 0.47
BHC3003-3-0.03 3 44 1.18 0.89 0.52
BHC3003-5-0.06 5 49 1.43 1.03 0.60
BHC3003-3-0.04 3 52 1.6 1.15 0.67
BHC3003-4-0.05 4 53 1.65 1.18 0.69
BHC3003-4-0.06 4 61 2.07 1.48 0.86
BHC3003-5-0.08 5 67 2.45 1.74 1.02
BHC3003-3-0.05 3 68 2.50 1.78 1.04
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series



3. FRP honeycomb panel has several advantages:

Super light and high strength, anti-fatigue

Excellent environment adaptability and electric insulating

Outstanding corrosion resistance and flame resistance

Good compression and impact resistance

Sound and heat insulation



4. Applications:

Truck body, yacht deck, Partition, stone reinforcement, medical, automotive, industrial, sports, Kitchen countertop etc.



PP Core FRP Aluminum Honeycomb Panel For Truck Body 0



5. Quality control:

A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for Fiberglass honeycomb panel of quality control of parts, processing, testing, packaging, etc.



6. Fiberglass honeycomb panel of more pictures:

PP Core FRP Aluminum Honeycomb Panel For Truck Body 1

PP Core FRP Aluminum Honeycomb Panel For Truck Body 2



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

PP Core FRP Aluminum Honeycomb Panel For Truck Body 3



9. Factory show

PP Core FRP Aluminum Honeycomb Panel For Truck Body 4



PP Core FRP Aluminum Honeycomb Panel For Truck Body 5



10. FAQ

Q1. What is Fiberglass honeycomb panel usd for?

A: The Fiberglass honeycomb panel is used for industrial, truck, kitchen countertop.



Q2. What are the advantages of Fiberglass honeycomb panel?

A: Fiberglass honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.



Q3. What is the packaging method of Fiberglass honeycomb panel?

A: Fiberglass honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
