|Product Name:||Aluminum Honeycomb Panel||Size:||1220*2440mm Or Customizable|
|Aluminum Panel Thick:||0.6，0.8mm Or Customizable||Side Length:||4mm Or Customizable|
|Top And Bottom Panel:||Aluminum Panel Or Customizable||Surface Treatment:||PVDF Coating|
|Core Material:||Aluminum Honeycomb Core||Advantage:||Scratch Resistant|
|Foil Thickness:||0.06, 0.08mm||Materials:||Al3003 And Al5052|
|Color:||Aluminum Natural Color Or Customizable||Thickness:||20mm Or Customizable|
Anti Corrosion Aluminum Honeycomb Panel,
Anti Corrosion Aluminum Honeycomb Sheet,
Curtain Aluminum Honeycomb Panel
Customized Size Corrosion-Resistant Aluminum Honeycomb Panel For Building Curtain Wall
Corrosion resistant aluminum honeycomb panels are mainly used in aerospace, building curtain walls and other fields. Because of its good performance, it has been applied in many aspects of civil field, and has been developed rapidly. Aluminum honeycomb plate is made of high-quality imported raw materials, and its precision is also high. The surface of aluminum honeycomb panel adopts advanced corrosion-resistant treatment, which can be used for many years.
At present, it is widely used in subway floor. It also has excellent characteristics such as super flatness, sound insulation, heat insulation and so on.

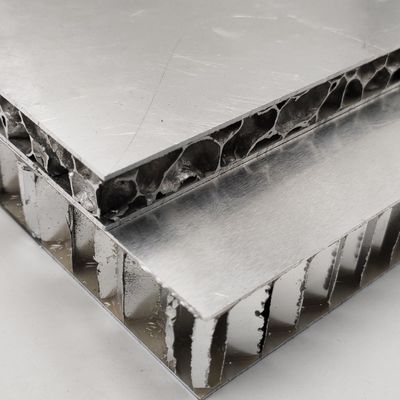

The structure of aluminum honeycomb plate is mainly aluminum plate + aluminum honeycomb core + aluminum plate.
|Aluminum honeycomb panel|
|Panel total thickness||5mm-50mm or Customized|
|Width||1220mm,1500mm or Customized|
|Length||2440mm or Customized|
|Surface finish||PE/PVDF/Anodic oxidation|
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as
|Applications||Decorative material for buildings, home ,office, sign board, etc|
|Specification of honeycomb core|
|Side length(mm)||0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50|
|Foil thickness(mm)||0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2|
|Supply form||Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted|
|Technical Data Sheet|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series
3. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
• Car roof top tent
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
8. Exhibition show
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the car roof top tent, decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
