PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding

I'm Online Chat Now

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding
PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding

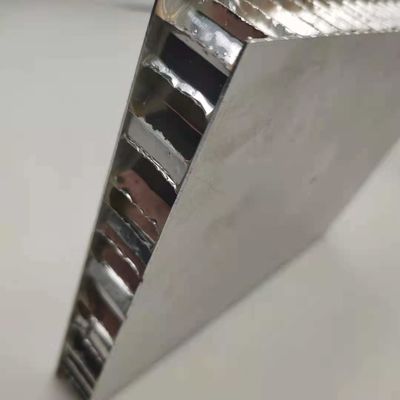

Large Image :  PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding

Product Details:
Place of Origin: Taizhou, Jiangsu Province, China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: Around 15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 2000 sq meter per day

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding

Description
Product Name: Aluminum Honeycomb Panel Size: 1220*2440mm Or Customizable
Aluminum Panel Thick: 0.6,0.8mm Or Customizable Side Length: 4mm Or Customizable
Top And Bottom Panel: Aluminum Panel Or Customizable Surface Treatment: PVDF Coating
Core Material: Aluminum Honeycomb Core Advantage: Scratch Resistant
Foil Thickness: 0.06, 0.08mm Materials: Al3003 And Al5052
Color: Aluminum Natural Color Or Customizable Thickness: 20mm Or Customizable
High Light:

Aluminum Honeycomb Sheet PE Coated

,

Aluminum Honeycomb Sheet PVDF Coated

,

0.6mm Aluminum Honeycomb Sheet

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding



1. Descriptions:

Aluminum honeycomb panel was mostly used in astronautics, astrology and other military field. Because of its good performance, it has already been used in many aspects of civil field and developd very quickly.Aluminum honeycomb panels are made of high-quality imported raw materials, precision. Its surface employs the advanced techique of fluorocarbon acquer pre-costing, which can keep the color unchanged for many years and its durability has been promised.



At present, it is widely used in subway floor. It also has excellent characteristics such as super flatness, sound insulation, heat insulation and so on.

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 0



2. Specifications:

Aluminum honeycomb panel
Panel total thickness 5mm-50mm or Customized
Width 1220mm,1500mm or Customized
Length 2440mm or Customized
Surface finish PE/PVDF/Anodic oxidation
Color

White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as

requested

Applications Decorative material for buildings, home ,office, sign board, etc
Specification of honeycomb core
Side length(mm) 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50
Foil thickness(mm) 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2
Alloy Al3003
Supply form Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted
Technical Data Sheet



Specification

Side length

(mm)

Density

(kg/m³)


Compression

strength (MPa)


L-Shear

strength (MPa)


W-Shear

strength (MPa)


BHC3003-5-0.03 5 27 0.53 0.44 0.24
BHC3003-5-0.04 5 31 0.66 0.53 0.3
BHC3003-4-0.03 4 33 0.73 0.58 0.33
BHC3003-4-0.04 4 39 0.98 0.75 0.43
BHC3003-5-0.05 5 41 1.07 0.8 0.47
BHC3003-3-0.03 3 44 1.18 0.89 0.52
BHC3003-5-0.06 5 49 1.43 1.03 0.60
BHC3003-3-0.04 3 52 1.6 1.15 0.67
BHC3003-4-0.05 4 53 1.65 1.18 0.69
BHC3003-4-0.06 4 61 2.07 1.48 0.86
BHC3003-2-0.03 2 66 2.39 1.7 1.00
BHC3003-5-0.08 5 67 2.45 1.74 1.02
BHC3003-3-0.05 3 68 2.50 1.78 1.04
BHC3003-2-0.04 2 77 3.10 2.18 1.25

BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series



3. Aluminum honeycomb panel has several advantages:

• Excellent fireproof property

• Super peeling strength

• Perfect cold resistance performance

• Excellent surface flatness and smoothness

• Superior weather, corrosion, pollutant resistance

• Even coating, various colors

• Superior impact resistance

• Lightweight and easy to process

• Easy to maintain



4. Applications:

• Car roof top tent

• Gas piping, cables, building materials, etc

• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center

• Curtain wallboards for outside walls of normal buildings

• Renovations for old buildings and movable houses

• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony

• Facades

• Billboards, exhibition desks and notice boards

• Wallboards and ceilings for tunnels

• Materials for industrial application, car and ship bodies



PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 1



5. Aluminum honeycomb panel of more pictures:

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 2

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 3



6. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



7. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 4



8. Exhibition show

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 5

PVDF And PE Coated Aluminum Honeycomb Sheet For Wall Cladding 6



9. FAQ

Q1. What is aluminum honeycomb panel usd for?

A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the car roof top tent, decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.



Q2. What are the advantages of aluminum honeycomb panel?

A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.

.

Q3. What is the packaging method of aluminum honeycomb panel?

A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
