Product Details:
|
| Product Name: | Micro-Porous Aluminum Honeycomb Core | Side Length: | 0.6, 0.8,1,1.5, 1.83, 2, 2.5, 3, 3.75, 4, 5mm Or Customizable |
|---|---|---|---|
| Size: | 2000*3000mm Or Customizable | Thickness: | 1.5-80mm Or Customizable |
| Foil Thickness: | 0.021, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1mm | Cell Size: | 3.2, 4.33, 6, 8, 10mm Or Customizable |
| Advantage: | Light Weight, High Strength, Environmental Protection | Applications: | Filter, Lighting Industry Or Other |
| Materials: | 3003 And 5052 | Color: | Aluminum Natural Color |
| High Light: | 80mm Aluminium Honeycomb Panel,Big Size Aluminum Honeycomb Core,80mm Honeycomb Aluminum Panel |
||
Big Size Various Good Quality Honeycomb Panel Aluminum Honeycomb Core
1. Descriptions:
Aluminum honeycomb has excellent properties, such as high strength, high temperature resistance and corrosion resistance. It is an ideal material for aviation, aerospace, high-speed ships, high-speed trains and other industries. It can also accept large-scale production, and various sizes can be customized.
2. Aluminum honeycomb core structure:
3. Specifications:
| Micro-Porous Aluminum Honeycomb Core | |||
| Specifications | Side length (mm) | Foil Thickness (mm) | Density (kg/m³) |
| BHC3003-0.4-0.015L | 0.4 | 0.015 | 137 |
| BHC3003-0.5-0.015L | 0.5 | 0.015 | 137 |
| BHC3003-0.5-0.021L | 0.021 | 190 | |
| BHC3003-0.6-0.015L | 0.6 | 0.015 | 151 |
| BHC3003-0.6-0.021L | 0.021 | 158 | |
| BHC3003-0.8-0.021L | 0.8 | 0.021 | 118 |
| BHC3003-0.8-0.025L | 0.025 | 144 | |
| BHC3003-0.8-0.03L | 0.03 | 169 | |
| BHC3003-1-0.025L | 1 | 0.025 | 115 |
| BHC3003-1-0.03L | 0.03 | 137 | |
| BHC3003-1-0.04L | 0.04 | 183 | |
| BHC3003-1.5-0.03L | 1.5 | 0.03 | 90 |
| BHC3003-1.5-0.04L | 0.04 | 122 | |
| BHC3003-1.5-0.05L | 0.05 | 152 | |
| BHC3003-1.83-0.04L | 1.83 | 0.04 | 99 |
| BHC3003-1.83-0.05L | 0.05 | 123 | |
| BHC3003-1.83-0.06L | 0.06 | 148 | |
| BHC3003-2-0.04L | 2 | 0.04 | 90 |
| BHC3003-2-0.05L | 0.05 | 113 | |
| BHC3003-2-0.06L | 0.06 | 135 | |
| BHC3003-2.5-0.04L | 2.5 | 0.04 | 74 |
| BHC3003-2.5-0.05L | 0.05 | 92 | |
| BHC3003-2.5-0.06L | 0.06 | 110 | |
| BHC3003-3-0.04L | 3 | 0.04 | 61 |
| BHC3003-3-0.05L | 0.05 | 76 | |
| BHC3003-3-0.06L | 0.06 | 91 | |
| BHC3003-3-0.08L | 0.08 | 122 | |
| BHC3003-3.5-0.04L | 3.5 | 0.04 | 55 |
| BHC3003-3.5-0.05L | 0.05 | 68 | |
| BHC3003-3.5-0.06L | 0.06 | 82 | |
| BHC3003-3.5-0.08L | 0.08 | 110 | |
| BHC3003-4-0.04L | 4 | 0.04 | 46 |
| BHC3003-4-0.05L | 0.05 | 57 | |
| BHC3003-4-0.06L | 0.06 | 68 | |
| BHC3003-4-0.08L | 0.08 | 92 | |
| BHC3003-5-0.05L | 5 | 0.05 | 46 |
| BHC3003-5-0.06L | 0.06 | 54 | |
| BHC3003-5-0.08L | 0.08 | 72 | |
| BHC3003-5-0.1L | 0.1 | 91 | |
| Alloy | Al3003 and Al5052 | ||
| Supply form | Unexpanded (block, strip) or expanded(slice) | ||
| Unperforated | |||
3. Micro- Porous aluminium core has several advantages:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Flatness
4. Applications:
• Building materials industry
• Lighting industry
• Industry
• Printing machine platform and so on

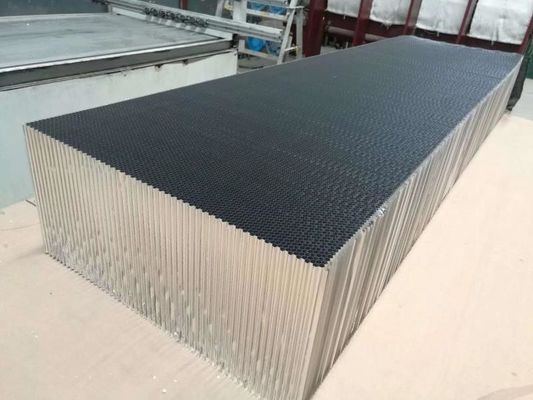

5. Micro-porous aluminum honeycomb core of more pictures:
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
7. Factory show
8.Company certificate
(1). DIN 6701 TEST REPORT
(2). EN45545 TEST REPORT
(3). ISO 9001
9. FAQ
Q1. What is micro-porous aluminum honeycomb core usd for?
A: The micro-porous aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
