Product Details:
|
| Product Name: | Lightweight Honeycomb Worktable | Side Length: | 3, 4, 5mm Or Customizable |
|---|---|---|---|
| Foil Thickness: | 0.06, 0.07, 0.08mm | Size: | 1300*2400mm Or Customizable |
| Core Materials: | Al3003 And Al5052 | Color: | Aluminum Natural Color Or Customizable |
| Thickness: | 30-70mm Or Customizable | Advantage: | Light Weight |
| Surface Treatment: | Costomizable | Top And Bottom Panel Thick: | 1.0, 1.5mm Or Customizable |
| High Light: | 1300x2400mm honeycomb working table,Al3003 honeycomb working table,70mm honeycomb work bed table |
||
Light Honeycomb Worktable For Installing Various Tooling Fixtures Can Be Customized
1. Descriptions:
Light honeycomb worktable is mainly used in machine tool processing. The size and specification of the worktable have a great impact on the production efficiency of the machine tool. In order to meet the requirements of machining accuracy, the flatness and manufacturing accuracy of the worktable are very high. At the same time, in order to ensure that the light worktable has high bending and compression performance, the honeycomb core of appropriate specification must be selected.
2. Specifications:
| Lightweight honeycomb worktable | |
| Panel total thickness | 30mm-50mm or Customized |
| Top and bottom panel | stainless steel, alloy |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. Lightweight Honeycomb Worktable has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
4. Applications:
• Cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for lightweight honeycomb worktable panel of quality control of parts, processing, testing, packaging, etc.

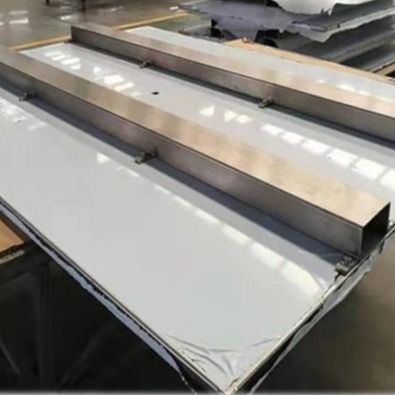

6. Lightweight Honeycomb Worktable of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, lightweight honeycomb worktable panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core, slant-porous aluminum honeycomb core, aramid honeycomb core, stainless steel honeycomb core, PU glue, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field,such as aluminum honeycomb panel, lightweight honeycomb worktable, HPL honeycomb pane, FRP honeycomb panel and so on.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is the lightweight honeycomb worktable panel used for?r?
A: Lightweight honeycomb worktable panel can be used for curtain wallboards for outside walls of normal buildings, factory console, kitchen.
Q2. What are the advantages of lightweight honeycomb worktable?
A: Lightweight honeycomb worktable has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of lightweight honeycomb worktable?
A: Lightweight honeycomb worktable of samples are packed in cardboard and bulk orders are packed in plywood cases.
