Engraving Edging Honeycomb Work Table For Machine Tool Processing

I'm Online Chat Now

Engraving Edging Honeycomb Work Table For Machine Tool Processing

Engraving Edging Honeycomb Work Table For Machine Tool Processing
Engraving Edging Honeycomb Work Table For Machine Tool Processing Engraving Edging Honeycomb Work Table For Machine Tool Processing Engraving Edging Honeycomb Work Table For Machine Tool Processing

Large Image :  Engraving Edging Honeycomb Work Table For Machine Tool Processing

Product Details:
Place of Origin: Taizhou, Jiangsu Province, China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: NO
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: Around 15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 2000 sq meter per day

Engraving Edging Honeycomb Work Table For Machine Tool Processing

Description
Product Name: Lightweight Honeycomb Worktable Side Length: 4, 5mm Or Customizable
Foil Thickness: 0.07, 0.08mm Size: 900*2500mm Or Customizable
Core Materials: Al3003 And Al5052 Color: Aluminum Natural Color Or Customizable
Thickness: 30mm Or Customizable Advantage: Light Weight
Surface Treatment: Costomizable Top And Bottom Panel Thick: 1.0, 1.5mm Or Customizable
High Light:

honeycomb Work Table 900x2500mm

,

Al5052 honeycomb work table

,

900x2500mm honeycomb bed

Engraving And Edging Light Honeycomb Worktable For Machine Tool Processing

1. Descriptions:



The light worktable is the processing bearing surface of the machine tool. The size and specification of the worktable have a great impact on the production efficiency of the machine tool. In order to meet the precision requirements of machining, the flatness, flatness and manufacturing accuracy of the worktable are very high. At the same time, in order to ensure that the light worktable has high flexural and compressive properties, the honeycomb core with appropriate specifications must be selected.



2. Specifications:



Lightweight honeycomb worktable
Panel total thickness 30mm-50mm or Customized
Top and bottom panel stainless steel, alloy
Width 1220mm,1500mm or Customized
Length 2440mm or Customized
Surface finish PE/PVDF/Anodic oxidation
Color

White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as

requested

Applications Decorative material for buildings, home ,office, sign board, etc
Specification of honeycomb core
Side length(mm) 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50
Foil thickness(mm) 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2
Alloy Al3003
Supply form Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted
Technical Data Sheet



Specification

Side length

(mm)

Density

(kg/m³)


Compression

strength (MPa)


L-Shear

strength (MPa)


W-Shear

strength (MPa)


BHC3003-5-0.03 5 27 0.53 0.44 0.24
BHC3003-5-0.04 5 31 0.66 0.53 0.3
BHC3003-4-0.03 4 33 0.73 0.58 0.33
BHC3003-4-0.04 4 39 0.98 0.75 0.43
BHC3003-5-0.05 5 41 1.07 0.8 0.47
BHC3003-3-0.03 3 44 1.18 0.89 0.52
BHC3003-5-0.06 5 49 1.43 1.03 0.60
BHC3003-3-0.04 3 52 1.6 1.15 0.67
BHC3003-4-0.05 4 53 1.65 1.18 0.69
BHC3003-4-0.06 4 61 2.07 1.48 0.86
BHC3003-5-0.08 5 67 2.45 1.74 1.02
BHC3003-3-0.05 3 68 2.50 1.78 1.04
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series



3. Lightweight Honeycomb Worktable has several advantages:



• Excellent fireproof property

• Super peeling strength

• Perfect cold resistance performance

• Excellent surface flatness and smoothness

• Superior weather, corrosion, pollutant resistance

• Even coating, various colors

• Superior impact resistance

• Lightweight and easy to process

• Easy to maintain



4. Applications:



• Cables, building materials, etc

• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center

• Curtain wallboards for outside walls of normal buildings

• Renovations for old buildings and movable houses

• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony

• Facades

• Billboards, exhibition desks and notice boards

• Wallboards and ceilings for tunnels

• Materials for industrial application, car and ship bodies





Engraving Edging Honeycomb Work Table For Machine Tool Processing 0



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for lightweight honeycomb worktable panel of quality control of parts, processing, testing, packaging, etc.



6. Lightweight Honeycomb Worktable of more pictures:

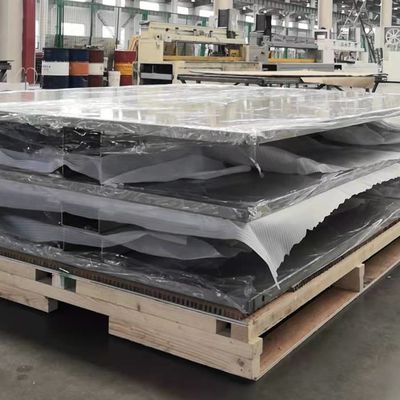

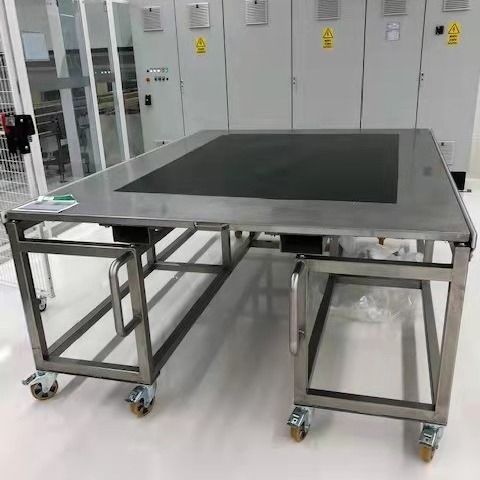

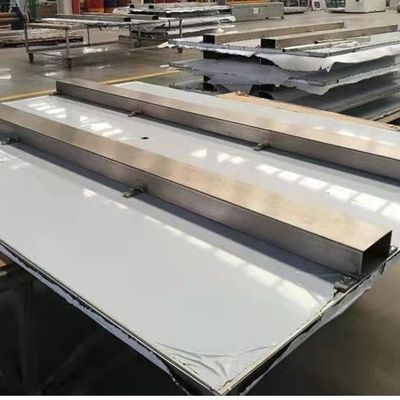

Engraving Edging Honeycomb Work Table For Machine Tool Processing 1



Engraving Edging Honeycomb Work Table For Machine Tool Processing 2



7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, lightweight honeycomb worktable panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History
1957 Besin(Dutch)1International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core, slant-porous aluminum honeycomb core, aramid honeycomb core, stainless steel honeycomb core, PU glue, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field,such as aluminum honeycomb panel, lightweight honeycomb worktable, HPL honeycomb pane, FRP honeycomb panel and so on.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Engraving Edging Honeycomb Work Table For Machine Tool Processing 3



9. Factory show



Engraving Edging Honeycomb Work Table For Machine Tool Processing 4



Engraving Edging Honeycomb Work Table For Machine Tool Processing 5



10. FAQ



Q1. What is the lightweight honeycomb worktable panel used for?r?

A: Lightweight honeycomb worktable panel can be used for curtain wallboards for outside walls of normal buildings, factory console, kitchen.



Q2. What are the advantages of lightweight honeycomb worktable?

A: Lightweight honeycomb worktable has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.



Q3. What is the packaging method of lightweight honeycomb worktable?

A: Lightweight honeycomb worktable of samples are packed in cardboard and bulk orders are packed in plywood cases.
