Product Details:
|
| Product Name: | Stone Aluminum Honeycomb Panel | Size: | 850*800mm Or Customizable |
|---|---|---|---|
| Top And Bottom Panel: | Marble | Side Length: | 7, 8mm Or Customizable |
| Aluminum Panel Thick: | 1.2，1.0mm Or Customizable | Stone Thickness: | 5， 10mm |
| Core Material: | Aluminum Honeycomb Core | Foil Thickness: | 0.04, 0.05mm |
| Materials: | Al3003 And Al5052 | Color: | Customizable |
| Thickness: | 18， 20mm Or Customizable | Advantage: | Strong Decoration |
| High Light: | stone honeycomb panel 850x800mm,18mm stone honeycomb panel,20mm marble honeycomb panel |
||
Marble Stone Honeycomb sheet Is Used For Toilets In High-End Shopping Malls
1. Descriptions:
Stone honeycomb board has a wide range of applications, such as toilet, kitchen cabinet, high-grade office building, building wall, floor, bar, counter, indoor partition, ceiling and so on. Moreover, the use of ultra-thin honeycomb stone further improves the decorative function of stone, widens the application scope of stone, and greatly improves the added value of stone.
2. Specifications:
| Stone aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Stone type | Granite, marble |
| Aluminum panel thcikness | 0.8, 1.0, 1.5mm |
| Stone thickness | 3-5mm |
| Color |
Customized |
| Applications | Building curtain wall system, building interior decoration, elevator car body, furniture supporting, bathroom integrated installation system |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Stone aluminum honeycomb panel has several advantages:
• Light weight and improved strength
• Improvement of anti pollution ability
• Easier to control color difference
• Easy installation
• Sound insulation, moisture-proof and cost reduction.
4. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
• Pailway, ship flooring panel
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for stone aluminum honeycomb panel of quality control of parts, processing, testing, packaging, etc.

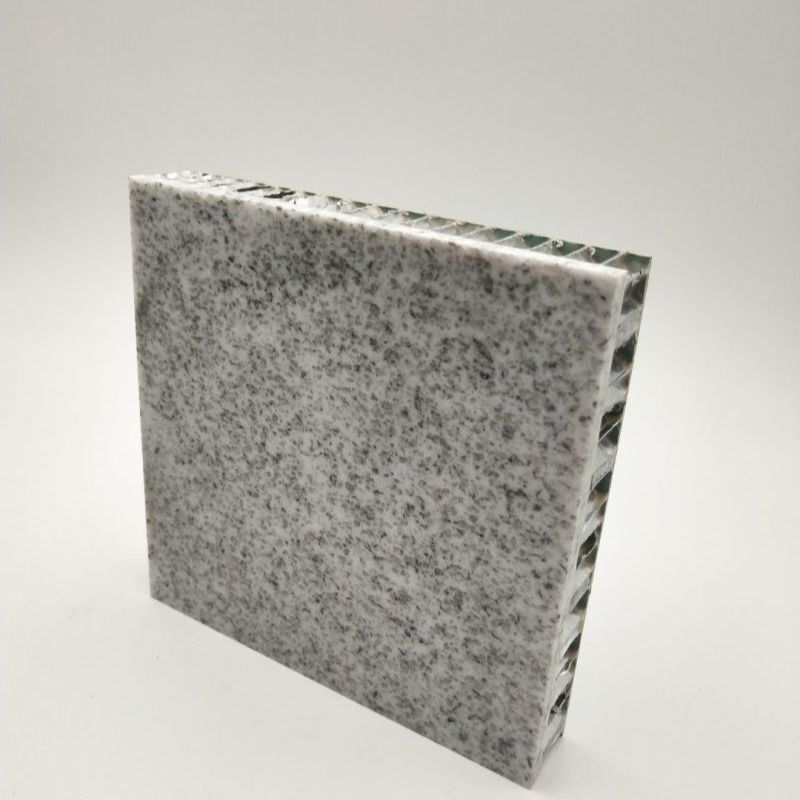

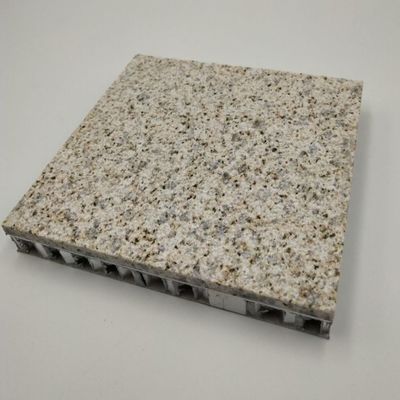

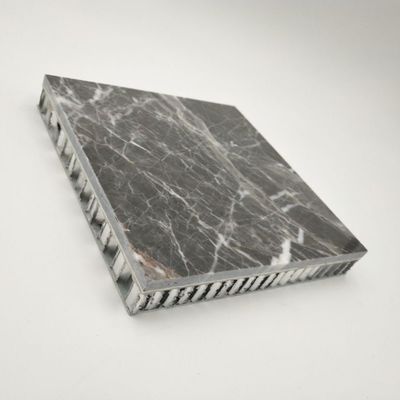

6. Stone aluminum honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is stone aluminum honeycomb panel usd for?
A: Stone aluminum honeycomb panel has been widely used in the Building curtain wall system, building interior decoration, elevator car body, furniture supporting, bathroom integrated installation system
Q2. What are the advantages of stone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of atone aluminum honeycomb panel?
A: Stone aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
