Home ProductsFRP Honeycomb Panels

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck

I'm Online Chat Now

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck
1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 1350x2600mm Fiberglass Honeycomb Board For Yacht Deck

Large Image :  1350x2600mm Fiberglass Honeycomb Board For Yacht Deck

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: NO
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: Around 15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 2000 sq meter per day

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck

Description
Product Name: FRP Honeycomb Panel Top And Bottom Panel: FRP Or Stone
Foil Thickness: 0.06, 0.1mm Size: 1350*2600mm Or Customizable
Thickness: 42mm Or Customizable Advantage: Low Cost
Core Material: Aluminum Honeycomb Core Color: Customizable
Applications: Floor MOQ: 200pcs
High Light:

fiberglass honeycomb board

,

1350x2600mm fiberglass honeycomb board

,

FRP fibreglass honeycomb panel

Low Cost Glass Fiber Honeycomb Core Composite Board For Deck Of Yacht



1. Descriptions:



Glass fiber honeycomb panel (FRP honeycomb panel) consists of two glass fiber (FRP) panels as the top skin and bottom skin, which are laminated to the aluminum honeycomb core with two-component PU glue or epoxy glue. Glass fiber (FRP) is light weight, high strength, low cost and anti-aging. It is a new environment-friendly material.



2. Specifications:



Carbon fiber honeycomb panel
FRP Skins of High Pressure Laminate
Thickness: from 1.0 mm to 2 mm
- Other thickness on request
- Black color or customizable
HONEYCOMB CORE 3003 Aluminum Honeycomb Core
Diameter (hexagonal cells): Ø 6, Ø 10
Foil Thickness: from 40 to 80 microns
FRP Skins of High Pressure Laminate
Thickness: from 1.0 mm to 2 mm
- Other thickness on request
- Black color or customizable
Total Panel thickness Regular: 5mm, 8mm, 10mm, 20mm
-Other thickness on request
Dimension Regular: 1220*2440mm
-Other dimension on request



Specific specification of honeycomb core
Side length(mm) 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50
Foil thickness(mm) 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2
Alloy Al3003
Supply form Unexpanded(block, strip) or expanded(slice);
Technical Data Sheet



Specification

Side length

(mm)

Density

(kg/m³)


Compression

strength (MPa)


L-Shear

strength (MPa)


W-Shear

strength (MPa)


BHC3003-5-0.03 5 27 0.53 0.44 0.24
BHC3003-5-0.04 5 31 0.66 0.53 0.3
BHC3003-4-0.03 4 33 0.73 0.58 0.33
BHC3003-4-0.04 4 39 0.98 0.75 0.43
BHC3003-5-0.05 5 41 1.07 0.8 0.47
BHC3003-3-0.03 3 44 1.18 0.89 0.52
BHC3003-5-0.06 5 49 1.43 1.03 0.60
BHC3003-3-0.04 3 52 1.6 1.15 0.67
BHC3003-4-0.05 4 53 1.65 1.18 0.69
BHC3003-4-0.06 4 61 2.07 1.48 0.86
BHC3003-5-0.08 5 67 2.45 1.74 1.02
BHC3003-3-0.05 3 68 2.50 1.78 1.04
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series



3. FRP honeycomb panel has several advantages:



Super light and high strength, anti-fatigue

Excellent environment adaptability and electric insulating

Outstanding corrosion resistance and flame resistance



Good compression and impact resistance

Sound and heat insulation



4. Applications:



Truck body, yacht deck, Partition, stone reinforcement, medical, automotive, industrial, sports, Kitchen countertop etc.

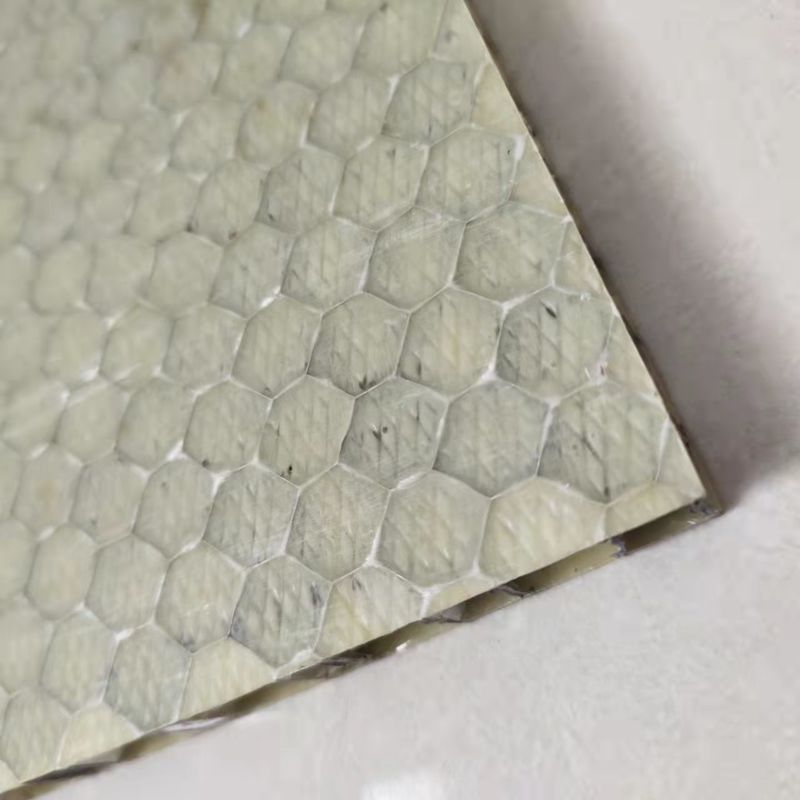

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 0



5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for FRP honeycomb panel of quality control of parts, processing, testing, packaging, etc.



6. FRP honeycomb panel of more pictures:



1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 1



1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 2



7. Company profile



Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History


1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 3



9. Factory show



1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 4



1350x2600mm Fiberglass Honeycomb Board For Yacht Deck 5



10. FAQ



Q1. What is FRP honeycomb panel usd for?

A: The FRP honeycomb panel is used for industrial, truck, kitchen countertop.



Q2. What are the advantages of FRP honeycomb panel?

A: FRP honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.



Q3. What is the packaging method of FRP honeycomb panel?

A: FRP honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
