1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification

I'm Online Chat Now

1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification

1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification
1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification

Large Image :  1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification

Description
Product Name: Micro-Porous Aluminum Honeycomb Core Size: 1220*2440mm Or Customizable
Cell Size: 1.04-8.66mm Or Customizable Side Length: 0.6, 0.8,1,1.5, 1.83, 2, 2.5, 3, 3.75, 4, 5mm Or Customizable
Foil Thickness: 0.021, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1mm Advantage: Light Weight, High Strength, Environmental Protection
Applications: Filter, Lighting Industry Or Other Thickness: 1.5-80mm Or Customizable
Materials: 3003 And 5052 Color: Aluminum Natural Color
Highlight:

ISO14001 aluminium honeycomb core

,

1220x2440mm aluminium honeycomb core

,

Al5052 aluminium honeycomb material

Micro-porous Aluminum Honeycomb Core For Air Filter Air Rectification



1. Descriptions:

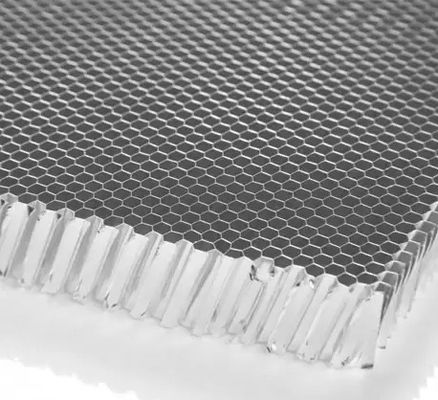

The surface and honeycomb holes of micro-porous aluminum honeycomb core is perpendicular. The microporous aluminum honeycomb core often refers to its side length less than 3mm, its cells are regular hexagons.



It has the advantages of regular hexagon shape, good mechanical properties, flat surface etc. Micro-porous aluminum honeycomb core is good for high quality filters, mechanical industry electrical appliance, and as well as other fields.



2. Specifications:

Micro-Porous Aluminum Honeycomb Core
Specifications Side length (mm) Foil Thickness (mm) Density (kg/m³)
BHC3003-0.4-0.015L 0.4 0.015 137
BHC3003-0.5-0.015L 0.5 0.015 137
BHC3003-0.5-0.021L 0.021 190
BHC3003-0.6-0.015L 0.6 0.015 151
BHC3003-0.6-0.021L 0.021 158
BHC3003-0.8-0.021L 0.8 0.021 118
BHC3003-0.8-0.025L 0.025 144
BHC3003-0.8-0.03L 0.03 169
BHC3003-1-0.025L 1 0.025 115
BHC3003-1-0.03L 0.03 137
BHC3003-1-0.04L 0.04 183
BHC3003-1.5-0.03L 1.5 0.03 90
BHC3003-1.5-0.04L 0.04 122
BHC3003-1.5-0.05L 0.05 152
BHC3003-1.83-0.04L 1.83 0.04 99
BHC3003-1.83-0.05L 0.05 123
BHC3003-1.83-0.06L 0.06 148
BHC3003-2-0.04L 2 0.04 90
BHC3003-2-0.05L 0.05 113
BHC3003-2-0.06L 0.06 135
BHC3003-2.5-0.04L 2.5 0.04 74
BHC3003-2.5-0.05L 0.05 92
BHC3003-2.5-0.06L 0.06 110
BHC3003-3-0.04L 3 0.04 61
BHC3003-3-0.05L 0.05 76
BHC3003-3-0.06L 0.06 91
BHC3003-3-0.08L 0.08 122
BHC3003-3.5-0.04L 3.5 0.04 55
BHC3003-3.5-0.05L 0.05 68
BHC3003-3.5-0.06L 0.06 82
BHC3003-3.5-0.08L 0.08 110
BHC3003-4-0.04L 4 0.04 46
BHC3003-4-0.05L 0.05 57
BHC3003-4-0.06L 0.06 68
BHC3003-4-0.08L 0.08 92
BHC3003-5-0.05L 5 0.05 46
BHC3003-5-0.06L 0.06 54
BHC3003-5-0.08L 0.08 72
BHC3003-5-0.1L 0.1 91
Alloy Al3003 and Al5052
Supply form Unexpanded (block, strip) or expanded(slice)
Unperforated



3. Micro- Porous aluminium core has several advantages:



Competitive Advantage

Light weight

High strength

Super flatness

Fire retardant

Sound insulation

Environment protection

Compression, shear and corrosion resistance

Flatness



4. Applications:



 Building materials industry

 • Lighting industry

 • Industry

 • Printing machine platform and so on



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 0

5. Quality control:



A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for micro-porous aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.



6. Micro-porous aluminum honeycomb core of more pictures:



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 1



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 2



7. Company profile



Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.



8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 3



9. Factory show



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 4



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 5



1220x2440mm Aluminium Honeycomb Core For Air Filter Air Rectification 6



10. FAQ



Q1. What is micro-porous aluminum honeycomb core usd for?

A: The micro-porous aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.



Q2. What are the advantages of micro-porous aluminum honeycomb core?

A: Micro-porous aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.



Q3. What is the packaging method of micro-porous aluminum honeycomb core?

A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
