|Product Name:||Micro-Porous Aluminum Honeycomb Core||Size:||1220*2440mm Or Customizable|
|Cell Size:||1.04-8.66mm Or Customizable||Side Length:||0.6, 0.8,1,1.5, 1.83, 2, 2.5, 3, 3.75, 4, 5mm Or Customizable|
|Foil Thickness:||0.021, 0.03, 0.04, 0.05, 0.06, 0.08, 0.1mm||Advantage:||Light Weight, High Strength, Environmental Protection|
|Applications:||Filter, Lighting Industry Or Other||Thickness:||1.5-80mm Or Customizable|
|Materials:||3003 And 5052||Color:||Aluminum Natural Color|
Microporous honeycomb aluminum core,
8.66mm honeycomb aluminum core,
Al3003 honeycomb core material

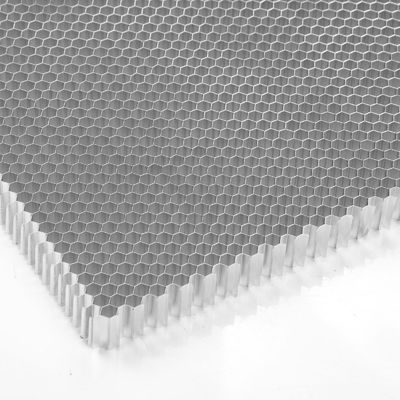

Ultra Small Cell Size Micro-Porous Aluminum Honeycomb Core For Filter
The cell of microporous aluminum honeycomb core is mainly hexagonal honeycomb, and the cell is regular. Microporous aluminum honeycomb core is more suitable for communication shielding and air purification. Compared with ordinary honeycomb core, it has larger surface area and better hydrodynamic characteristics, can realize full contact and friction when air passes through, and can thoroughly purify the air, so as to achieve better purification effect.
Generally, the side length of microporous aluminum honeycomb core is less than 3mm, which has the advantages of regular hexagon, good mechanical properties and flat surface. Microporous aluminum honeycomb core is suitable for high-quality filters, mechanical industry, electrical appliances and other fields.
|Micro-Porous Aluminum Honeycomb Core|
|Specifications||Side length (mm)||Foil Thickness (mm)||Density (kg/m³)|
|Alloy||Al3003 and Al5052|
|Supply form||Unexpanded (block, strip) or expanded(slice)|
3. Micro- Porous aluminium core has several advantages:
• Competitive Advantage
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
• Compression, shear and corrosion resistance
• Building materials industry
• Lighting industry
• Printing machine platform and so on
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for micro-porous aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.
6. Micro-porous aluminum honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
Q1. What is micro-porous aluminum honeycomb core usd for?
A: The micro-porous aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, lighting industry, printing machine platform and so on.
Q2. What are the advantages of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of micro-porous aluminum honeycomb core?
A: Micro-porous aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
