Product Details:
|
| Product Name: | FRP Honeycomb Panel | Top And Bottom Panel: | FRP |
|---|---|---|---|
| Foil Thickness: | 0.06，0.08 Or Customized | Size: | 1,600*2150mm Or Customizable |
| Thickness: | 36，48mm Or Customizable | Advantage: | Environmental Protection |
| Core Material: | PP Or Aluminum | Color: | White Or Customizable |
| Applications: | Trailer | MOQ: | 200pcs |
| High Light: | FRP Honeycomb Panels 1600x2150mm,Eco Friendly FRP Honeycomb Panels,FRP Honeycomb Plate |
||

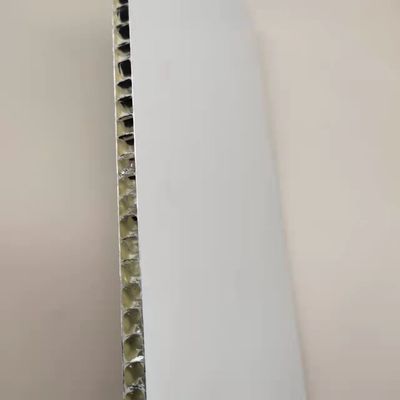

FRP Honeycomb Plate With High Mechanical Strength And Good Impact Toughness
1. Descriptions:
Characteristics of glass fiber honeycomb panel (FRP honeycomb panel):
1. Glass fiber honeycomb board has the advantages of light weight, high strength and impact resistance.
2. FRP honeycomb panel maintains the good performance of FRP panel and has good acid resistance and corrosion resistance.
3. FRP honeycomb panels can be made into large panels with dimensions up to 2200x8000mm.
2. Specifications:
| Carbon fiber honeycomb panel | |
| FRP | Skins of High Pressure Laminate |
| Thickness: from 1.0 mm to 2 mm | |
| - Other thickness on request | |
| - Black color or customizable | |
| HONEYCOMB CORE | 3003 Aluminum Honeycomb Core or PP honeycomb core |
| Diameter (hexagonal cells): Ø 6, Ø 8, Ø 10 | |
| Foil Thickness: from 40 to 80 microns | |
| FRP | Skins of High Pressure Laminate |
| Thickness: from 1.0 mm to 2 mm | |
| - Other thickness on request | |
| - Black color or customizable | |
| Total Panel thickness | Regular: 5mm, 8mm, 10mm, 20mm |
| -Other thickness on request | |
| Dimension | Regular: 1220*2440mm |
| -Other dimension on request | |
| Specific specification of honeycomb core | |||||
| Side length(mm) | 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. FRP honeycomb panel has several advantages:
• Super light and high strength, anti-fatigue
• Excellent environment adaptability and electric insulating
• Outstanding corrosion resistance and flame resistance
• Good compression and impact resistance
• Sound and heat insulation
4. Applications:
• Truck body, yacht deck, Partition, stone reinforcement, medical, automotive, industrial, sports, Kitchen countertop etc.
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for FRP honeycomb panel of quality control of parts, processing, testing, packaging, etc.
6. FRP honeycomb panel of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is FRP honeycomb panel usd for?
A: The FRP honeycomb panel is used for industrial, truck, kitchen countertop.
Q2. What are the advantages of FRP honeycomb panel?
A: FRP honeycomb panel has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of FRP honeycomb panel?
A: FRP honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
